Vermont Castings Defiant 1910 Parts Diagram

Vermont Castings Defiant 1910 Interactive Parts Finder

Find the exact replacement parts you need for your Vermont Castings Defiant 1910. This Wood stove has 88 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Secondary Air Cover Plate, Vermont Castings Secondary Air Probe Assembly, Vermont Castings Secondary Air Linkage, Vermont Castings Secondary Air Flap, and Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 88 replacement parts available.

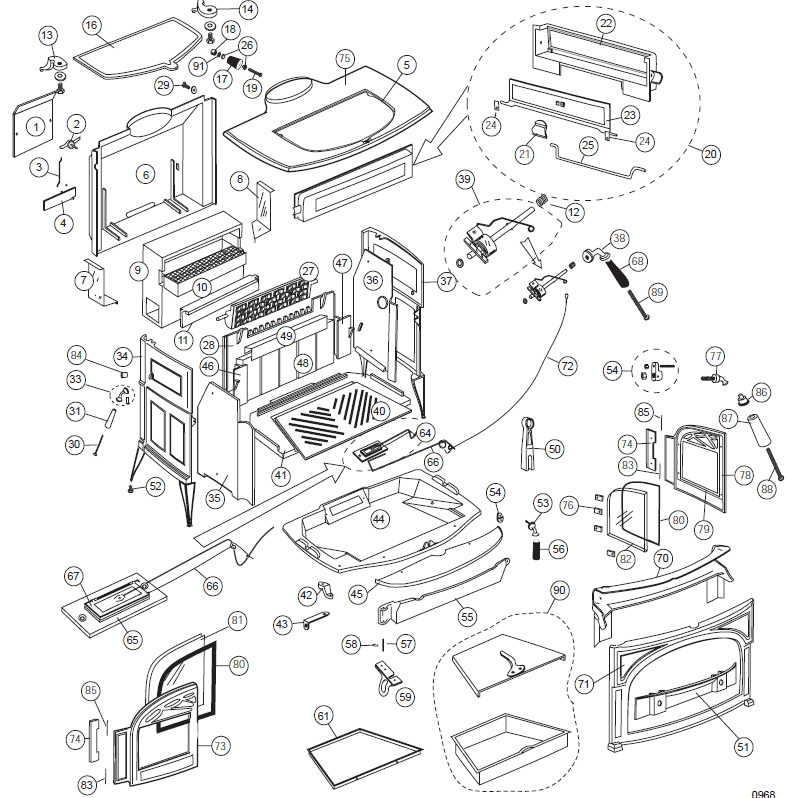

Vermont Castings Defiant 1910 replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Secondary Air Cover Plate (1601492)1601492$44.00
#10Condar Canned Catalytic Combustor - 16 Cell 2.5" x 13" x 2" (CC-257)CC-257$301.00
#11Vermont Castings Refractory Access Panel (1602511)1602511$110.00
#12Vermont Castings Friction Spring (1201846)1201846$4.00
#13Vermont Castings Left Griddle Quadrant (1301807A)1301807A$69.00
#14Vermont Castings Right Griddle Quadrant (1301832A)1301832A$74.00
#16Upper Linkage Damper for Resolute I & II & Defiant 1910 Stoves (1301641)1301641$19.00
#17Vermont Castings Defiant Griddle Knob (1600657A)1600657A$25.00
#18Vermont Castings Defiant Griddle Handle Spacer (1600070)1600070$16.00
#19Vermont Castings Screw for Wooden Griddle Handle (1201308)1201308$3.00
#2Vermont Castings Secondary Air Probe Assembly (1601489A)1601489A$90.00
#20Vermont Castings Defiant 1910 & 1945 Upper Fireback & Damper Assembly (5000030)5000030$450.00
#21Vermont Castings Damper Ramp (1300643)1300643$15.00
#22Defiant 1910 & 1945 Upper Fireback (1300633)1300633$151.00
#23Defiant 1910 & 1945 Damper (1300634)1300634$54.00
#24Vermont Castings Damper Tab (1601488)1601488$3.00
#25Vermont Castings Defiant Damper Rod (1600065)1600065$97.00
#26Defiant 1610, 1910, & 1945 Griddle Handle Bushing (1201895)1201895$6.00
#27Defiant 1910 & 1945 Throat Baffle (SRV1300635)SRV1300635$108.00
#28Defiant 1910 & 1945 Lower Fireback (1300638)1300638$96.00
#3Vermont Castings Secondary Air Linkage (1601486)1601486$6.00
#30Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#31Defiant 1910 & 1945 Right Side Wedge (1300644)1300644$33.00
#33Vermont Castings Steel Damper Handle Stub (5004265)5004265$48.00
#35Defiant 1910 & 1945 Left Air Plate (1300637)1300637$113.00
#36Defiant 1910 & 1945 Right Air Plate (1300636)1300636$108.00
#38Vermont Castings Thermostat Handle - Complete - (30002716)30002716$29.00
#39Vermont Castings Thermostat Coil & Rod Assembly (5005470)5005470$63.00
#4Vermont Castings Secondary Air Flap (1601490)1601490$19.00
#40Defiant 1910 & 1945 Bottom Grate (1300639A)1300639A$134.00
#41Vermont Castings Defiant 1910 & 1945 Primary Air Cover Plate (1300622)1300622$121.00
#42Vermont Castings Defiant 1910 Top Ash Door Hinge Support (1300620)1300620$24.00
#43Defiant 1910 Door Handle Holder (1600059)1600059$11.00
#45Vermont Castings Defiant 1910 & 1945 Ashlip (1300621A)1300621A$91.00
#46Defiant 1910 & 1945 Left Side Wedge (1300628)1300628$42.00
#47Defiant 1910 & 1945 Right Side Wedge (1300644)1300644$33.00
#48Vermont Castings Firebrick (1601103)1601103$15.00
#49Vermont Castings Defiant 1910 & 1945 Firebrick Retainer (1600066)1600066$98.00
#5Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT (1203668)1203668$3.30
#50Vermont Castings Defiant 1910 & 1945 Andiron (1300646A)1300646A$49.00
#51Vermont Castings Defiant 1910 & 1945 Andiron Shelf (1300640A)1300640A$59.00
#52Vermont Castings Leg Leveler Bolt (1201745)1201745$4.50
#53Vermont Castings Ash Door Handle Shaft (1600622)1600622$32.00
#55Vermont Castings Defiant 1910 & 1945 Ashdoor (1300619A)1300619A$132.00
#56Vermont Castings Wooden Ash Door Handle - Only (1600663)1600663$8.00
#57Vermont Castings Ashdoor Hinge Pin (1206061)1206061$6.00
#58Vermont Castings Front Door C-Clip (1600553)1600553$10.00
#59Vermont Castings Bottom Ashdoor Hinge Support (1300642A)1300642A$56.00
#60Defiant 1910 Ash Pan (1600068)1600068$70.00
#61Defiant 1910 Ashpan Bracket (1600060)1600060$107.00
#62Defiant 1910 Ash Pan Cover (1600069)1600069$40.00
#63Vermont Castings Ash Pan Cover Handle (1301254)1301254$33.00
#64Vermont Castings Primary Air Valve Assembly (K5000024)K5000024$149.00
#65Vermont Castings Primary Air Frame - Only (1307411)1307411$33.00
#66Vermont Castings Defiant 1910 & 1945 Primary Air Rod (1600058)1600058$20.00
#67Vermont Castings Primary Air Valve - Only (1307412)1307412$47.00
#68Vermont Castings Maple Thermostat Handle (1600660)1600660$7.00
#7Vermont Castings Defiant & Encore Left Heat Deflector (1608629)1608629$86.00
#70Vermont Castings Defiant 1910 & 1945 Front Air Manifold (1300627)1300627$95.00
#71Defiant 1910 Front - Classic Black (1300624)1300624$163.00
#72Vermont Castings Primary Air Cable - Thermostat Cable (5005471)5005471$23.00
#73Vermont Castings Defiant 1910 & 1945 Left Door - Classic Black (1300626A)1300626A$191.00
#74Vermont Castings Door Hinge Strip (1300645A)1300645A$43.00
#75Vermont Castings Defiant 1910 Top (1300632A)1300632A$320.00
#76Vermont Castings Glass Clip - Long (1601396)1601396$3.00
#77Vermont Castings Front Door Steel Handle Stub & Shaft (5004237)5004237$51.00
#78Vermont Castings Defiant 1910 & 1945 Right Door - Classic Black (1300625A)1300625A$213.00
#79Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#8Vermont Castings Defiant & Encore Right Heat Deflector (1608630)1608630$86.00
#80Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#81Vermont Castings Defiant 1610, 1910 & 1945 Left Door Glass (1600064)1600064$225.00
#82Vermont Castings Defiant Right Door Glass (1600062)1600062$229.00
#84Vermont Castings Defiant & Encore 7/16" Spacer (1201779)1201779$4.00
#86Vermont Castings Handle Insert (1600650)1600650$17.00
#87Vermont Castings Fallaway Ceramic Handle - Ceramic Part Only (1600620)1600620$8.99
#88Vermont Castings Oval Head Handle Screw - Screw Only (1201294)1201294$6.00
#89Vermont Castings Thermostat Handle Long Screw - Only (1201243)1201243$3.00
#9Vermont Castings Refractory Assembly (1602510A)1602510A$675.00
#91Vermont Castings 1/4" Flat Washer (1202475)1202475$4.00
