Vermont Castings Defiant 1945 Parts Diagram

Vermont Castings Defiant 1945 Interactive Parts Finder

Find the exact replacement parts you need for your Vermont Castings Defiant 1945. This Wood stove has 94 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Secondary Air Cover Plate, Vermont Castings Secondary Air Probe Assembly, Vermont Castings Secondary Air Linkage, Vermont Castings Secondary Air Flap, and Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 94 replacement parts available.

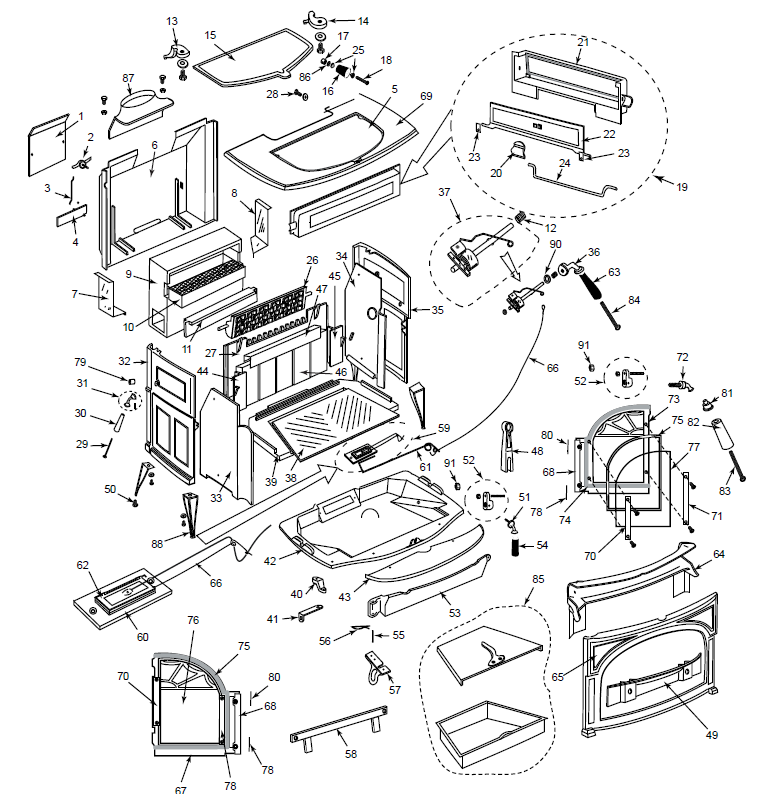

Vermont Castings Defiant 1945 replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Secondary Air Cover Plate (1601492)1601492$44.00
#10Condar Canned Catalytic Combustor - 16 Cell 2.5" x 13" x 2" (CC-257)CC-257$301.00
#11Vermont Castings Refractory Access Panel (1602511)1602511$110.00
#12Vermont Castings Friction Spring (1201846)1201846$4.00
#13Vermont Castings Left Griddle Quadrant (1301807A)1301807A$69.00
#14Vermont Castings Right Griddle Quadrant (1301832A)1301832A$74.00
#15Upper Linkage Damper for Resolute I & II & Defiant 1910 Stoves (1301641)1301641$19.00
#16Vermont Castings Defiant Griddle Knob (1600657A)1600657A$25.00
#17Vermont Castings Defiant Griddle Handle Spacer (1600070)1600070$16.00
#18Majestic and Vermont Castings 1" Striker Bolt (1200907)1200907$3.50
#19Vermont Castings Defiant 1910 & 1945 Upper Fireback & Damper Assembly (5000030)5000030$450.00
#2Vermont Castings Secondary Air Probe Assembly (1601489A)1601489A$90.00
#20Vermont Castings Damper Ramp (1300643)1300643$15.00
#21Defiant 1910 & 1945 Upper Fireback (1300633)1300633$151.00
#22Defiant 1910 & 1945 Damper (1300634)1300634$54.00
#23Vermont Castings Damper Tab (1601488)1601488$3.00
#25Defiant 1610, 1910, & 1945 Griddle Handle Bushing (1201895)1201895$6.00
#26Defiant 1910 & 1945 Throat Baffle (SRV1300635)SRV1300635$108.00
#27Defiant 1910 & 1945 Lower Fireback (1300638)1300638$96.00
#28Vermont Castings 1/4"- 20 X 3/4 Hex Head Cap Screw (1201374)1201374$2.50
#29Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#3Vermont Castings Secondary Air Linkage (1601486)1601486$6.00
#30Vermont Castings Maple Damper Handle - Only (1600664)1600664$7.00
#31Vermont Castings Steel Damper Handle w/Screw Assembly (30002720A)30002720A$63.00
#32Vermont Castings Defiant 1945 Left End - Classic Black (30001580A)30001580A$331.00
#33Defiant 1910 & 1945 Left Air Plate (1300637)1300637$113.00
#34Defiant 1910 & 1945 Right Air Plate (1300636)1300636$108.00
#35Vermont Castings Defiant 1945 Right End - Classic Black (30001579A)30001579A$202.00
#36Vermont Castings Thermostat Handle - Complete - (30002716)30002716$29.00
#37Vermont Castings Thermostat Coil & Rod Assembly (5005470)5005470$63.00
#38Defiant 1910 & 1945 Bottom Grate (1300639A)1300639A$134.00
#39Vermont Castings Defiant 1910 & 1945 Primary Air Cover Plate (1300622)1300622$121.00
#4Vermont Castings Secondary Air Flap (1601490)1601490$19.00
#40Vermont Castings Defiant 1945 Top Ash Door Hinge (30001689A)30001689A$43.00
#41Vermont Castings Door Handle Holder Insert (1600600)1600600$14.00
#42Vermont Castings Defiant 1945 Bottom - Classic Black (30001577A)30001577A$479.00
#43Vermont Castings Defiant 1910 & 1945 Ashlip (1300621A)1300621A$91.00
#44Defiant 1910 & 1945 Left Side Wedge (1300628)1300628$42.00
#45Defiant 1910 & 1945 Right Side Wedge (1300644)1300644$33.00
#46Vermont Castings Firebrick (1601103)1601103$15.00
#47Vermont Castings Defiant 1910 & 1945 Firebrick Retainer (1600066)1600066$98.00
#48Vermont Castings Defiant 1910 & 1945 Andiron (1300646A)1300646A$49.00
#49Vermont Castings Defiant 1910 & 1945 Andiron Shelf (1300640A)1300640A$59.00
#5Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT (1203668)1203668$3.30
#50Vermont Castings Leg Leveler Bolt (1201745)1201745$4.50
#51Vermont Castings Ash Door Handle Shaft (1600622)1600622$32.00
#53Vermont Castings Defiant 1910 & 1945 Ashdoor (1300619A)1300619A$132.00
#54Vermont Castings Wooden Ash Door Handle - Only (1600663)1600663$8.00
#55Defiant 1945 Ashdoor Hinge Pin (30004028)30004028$20.00
#56Vermont Castings Encore & Defiant Ash Door Cotter Pin (30001749)30001749$3.00
#57Vermont Castings Bottom Ashdoor Hinge Support (1300642A)1300642A$56.00
#58Vermont Castings Defiant Ash Pan Bracket (30001908A)30001908A$64.00
#59Vermont Castings Primary Air Valve Assembly (K5000024)K5000024$149.00
#6Vermont Castings Defiant 1945 Back (30001581)30001581$359.00
#60Vermont Castings Primary Air Frame - Only (1307411)1307411$33.00
#61Vermont Castings Defiant 1910 & 1945 Primary Air Rod (1600058)1600058$20.00
#62Vermont Castings Primary Air Valve - Only (1307412)1307412$47.00
#63Vermont Castings Maple Thermostat Handle (1600660)1600660$7.00
#64Vermont Castings Defiant 1910 & 1945 Front Air Manifold (1300627)1300627$95.00
#65Defiant 1945 Front (30001578A)30001578A$223.00
#66Vermont Castings Primary Air Cable - Thermostat Cable (5005471)5005471$23.00
#67Vermont Castings Defiant 1910 & 1945 Left Door - Classic Black (1300626A)1300626A$191.00
#68Vermont Castings Door Hinge Strip (1300645A)1300645A$43.00
#69Vermont Castings Defiant 1945 Black Top (30001582A)30001582A$400.00
#7Vermont Castings Defiant & Encore Left Heat Deflector (1608629)1608629$86.00
#70Vermont Castings 6 1/4" Glass Clip (30001715)30001715$53.00
#71Vermont Castings 8-1/2" Glass Clip - Right Door Only (30001716)30001716$53.00
#72Vermont Castings Front Steel Door Handle (30002717)30002717$55.00
#73Vermont Castings Defiant 1910 & 1945 Right Door - Classic Black (1300625A)1300625A$213.00
#74Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#75Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#76Vermont Castings Defiant 1610, 1910 & 1945 Left Door Glass (1600064)1600064$225.00
#77Vermont Castings Defiant Right Door Glass (1600062)1600062$229.00
#78Vermont Castings Long Door Pin (30002727)30002727$6.00
#79Vermont Castings Defiant & Encore 7/16" Spacer (1201779)1201779$4.00
#8Vermont Castings Defiant & Encore Right Heat Deflector (1608630)1608630$86.00
#80Vermont Castings Long Door Pin (30002727)30002727$6.00
#81Vermont Castings Handle Base Stub (30002714)30002714$19.00
#82Vermont Castings Maple Damper Handle - Only (1600664)1600664$7.00
#83Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#84Vermont Castings Thermostat Handle Long Screw - Only (1201243)1201243$3.00
#85Vermont Castings Ash Pan Assembly (30001690)30001690$156.00
#86Vermont Castings 1/4" Flat Washer (1202475)1202475$4.00
#87Vermont Castings Flue Collar - Classic Black (30001576A)30001576A$176.00
#88Vermont Castings Defiant 1945 Leg (30001583A)30001583A$71.00
#90Vermont Castings Flat Washer 1/4" (1202471)1202471$3.00
#91Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#93 (N/S)Vermont Castings Defiant 1610 Non Catalytic Ash Door Heat Shield (1401911)1401911$136.00
#94 (N/S)Vermont Castings Spacer - 1 1/4" (1601755)1601755$5.50
#95 (N/S)Vermont Castings Control Spacer (1201781)1201781$10.00
