Vermont Castings Intrepid II 2070 Parts Diagram

Vermont Castings Intrepid II 2070 Interactive Parts Finder

Find the exact replacement parts you need for your Vermont Castings Intrepid II 2070. This Wood stove has 103 parts mapped in our interactive diagram below. Common replacement parts include Intrepid II 2070, 1308, & 1303 Right End, Vermont Castings Intrepid II Back, Vermont Castings & Harman Glass Gasket, Vermont Castings Catalyst Block - Boxed, and Vermont Castings Refractory Assembly. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 103 replacement parts available.

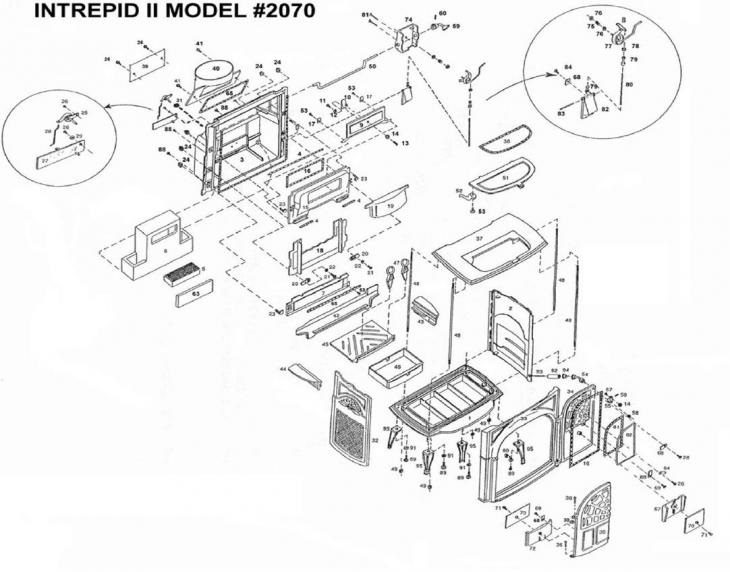

Vermont Castings Intrepid II 2070 replacement parts diagram
Part #Part NamePart CodePrice
#10Vermont Castings Intrepid II Damper Clip (1306725A)1306725A$40.00
#12Vermont Castings 1/4" Flat Washer (1202475)1202475$4.00
#13Vermont Castings 1/4" - 20 x 1" Striker Bolt - Socket Set Screw (1200436)1200436$3.00
#14Vermont Castings Hex Nut for Griddle Handle (1203210)1203210$2.50
#15Vermont Castings Intrepid II Damper Housing (1306702A)1306702A$82.00
#16Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#17Vermont Castings Damper Tab (1601488)1601488$3.00
#18Vermont Castings Intrepid II Upper Fireback (1306703A)1306703A$71.00
#19Vermont Castings Intrepid II & Small Winterwarm Throat Hood (1306763A)1306763A$55.00
#2Intrepid II 2070, 1308, & 1303 Right End (1306723)1306723$37.00
#20Vermont Castings Intrepid II Lower Fireback Clamp (1306724A)1306724A$27.00
#21Vermont Castings 3/8"-16 X 1 1/2" Hex Head Cap Screw (1201456)1201456$3.50
#22Vermont Castings 3/8" Washer (1202560)1202560$3.00
#23Vermont Castings Intrepid 3/8-16 x 1" Weld Screw (1201583)1201583$4.50
#24Intrepid II 3/8"-16 Acorn Nut (1203130)1203130$3.00
#24Intrepid II 3/8"-16 Acorn Nut (1203130)1203130$3.00
#24Intrepid II 3/8"-16 Acorn Nut (1203130)1203130$3.00
#24Intrepid II 3/8"-16 Acorn Nut (1203130)1203130$3.00
#24Intrepid II 3/8"-16 Acorn Nut (1203130)1203130$3.00
#24Intrepid II 3/8"-16 Acorn Nut (1203130)1203130$3.00
#25Vermont Castings Secondary Air Probe Assembly (1601489A)1601489A$90.00
#27Vermont Castings Secondary Air Flap (1601490)1601490$19.00
#28Vermont Castings Secondary Air Linkage (1601486)1601486$6.00
#29Vermont Castings Secondary Air Shim Ring (1201986)1201986$6.00
#3Vermont Castings Intrepid II Back (1306767)1306767$142.00
#35Vermont Castings Left Door (1306766)1306766$110.00
#36Vermont Castings 3/16" x 3/4" Door Hinge Pin (1600535)1600535$6.00
#38Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT (1203668)1203668$3.30
#39Vermont Castings Intrepid II Secondary Air Cover - Painted (1306762A)1306762A$89.00
#4Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#4Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#40Vermont Castings Intrepid Flue Collar (1306561A)1306561A$191.00
#41Vermont Castings 1/4" 20 x 3/4" Pan Head Screw for Intrepid II (1200901)1200901$8.00
#46Vermont Castings Intrepid Ash Pan Assembly (5003522)5003522$191.00
#47Vermont Castings Andiron (1306717A)1306717A$42.00
#48Vermont Castings Tie Rod Set w/Hardware (5007499)5007499$165.00
#48Vermont Castings Tie Rod Set w/Hardware (5007499)5007499$165.00
#48Vermont Castings Tie Rod Set w/Hardware (5007499)5007499$165.00
#48Vermont Castings Tie Rod Set w/Hardware (5007499)5007499$165.00
#49Vermont Castings Hex Nut for Griddle Handle (1203210)1203210$2.50
#5Vermont Castings Catalyst Block - Boxed (30001153)30001153$315.00
#50Vermont Castings Intrepid Damper Actuator Rod (1602523)1602523$40.00
#51Vermont Castings Resolute Acclaim & Intrepid Griddle (1306356A)1306356A$128.00
#52Vermont Castings Right Griddle Quadrant (1301832A)1301832A$74.00
#54Vermont Castings Front Door Steel Handle Stub & Shaft (5004237)5004237$51.00
#56Vermont Castings Front Door Handle Set Screw (1200417)1200417$5.00
#57Vermont Castings 1/4" - 20 x 1" Striker Bolt - Socket Set Screw (1200436)1200436$3.00
#58Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#6Vermont Castings Refractory Assembly (SRV1602527)SRV1602527$552.00
#60Vermont Castings Set Screw (1200563)1200563$3.00
#60Vermont Castings Set Screw (1200563)1200563$3.00
#61Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#62Vermont Castings Intrepid II 1308 & 2070 Right Door Glass (1401153)1401153$65.00
#63Vermont Castings Intrepid II & Small Winterwarm Refractory Access Panel (1602516)1602516$59.00
#64Intrepid II & Small Winterwarm Stepped Glass Clip (1601393)1601393$38.00
#68Vermont Castings Glass Clip - Long (1601396)1601396$3.00
#68Vermont Castings Glass Clip - Long (1601396)1601396$3.00
#69Vermont Castings 10-24 X 5/8" Pan Head Phillips Screw (1200986)1200986$6.00
#7Vermont Castings Intrepid II Lower Fireback (1306704)1306704$43.00
#71Vermont Castings 10-24 X 5/8" Pan Head Phillips Screw (1200986)1200986$6.00
#74Vermont Castings Intrepid II Thermostat Cover (1306711A)1306711A$87.00
#75Vermont Castings Friction Spring (1201846)1201846$4.00
#76Vermont Castings #10 Flat Washer (1202423)1202423$6.00
#76Vermont Castings #10 Flat Washer (1202423)1202423$6.00
#77Vermont Castings Intrepid II Thermostat Assembly (5005506)5005506$84.00
#78Vermont Castings Jump Ring - Sm. Plated (1201985)1201985$6.00
#79Vermont Castings Ball Chain Fitting (1201972)1201972$3.50
#8Vermont Castings Thermostat Clip - Unplaited (1601408)1601408$6.00
#80Vermont Castings #6 Thermostat Ball Chain - SOLD PER FOOT (1201960)1201960$8.00
#81Vermont Castings Intrepid Zinc 1/4"- 20 X 2" Phillips Pan Head Screw (1200995)1200995$3.50
#82Vermont Castings Intrepid II Primary Air Flap (1306710)1306710$42.00
#83Intrepid II 1990, 2070, 1308, & 1303 Primary Air Flap Pin (1601551)1601551$6.00
#84Vermont Castings 3/8" Pan Head Bolt (1200983)1200983$3.00
#88Vermont Castings Glass Clip Screws - 10 Pack (1200998-10)1200998-10$11.00
#88Vermont Castings Glass Clip Screws - 10 Pack (1200998-10)1200998-10$11.00
#9Vermont Castings Intrepid II Damper (1306701A)1306701A$66.00
#90Vermont Castings Door Handle Holder Insert (1600600)1600600$14.00
#92Vermont Castings Fallaway Ceramic Handle - Ceramic Part Only (1600620)1600620$8.99
#93Vermont Castings Oval Head Handle Screw - Screw Only (1201294)1201294$6.00
#94Vermont Castings Handle Insert (1600650)1600650$17.00
#95Vermont Castings Intrepid Individual Leg (1306333A)1306333A$73.00
#95Vermont Castings Intrepid Individual Leg (1306333A)1306333A$73.00
#95Vermont Castings Intrepid Individual Leg (1306333A)1306333A$73.00
#95Vermont Castings Intrepid Individual Leg (1306333A)1306333A$73.00
