Vermont Castings Merrimack Insert Parts Diagram

Vermont Castings Merrimack Insert Interactive Parts Finder

Find the exact replacement parts you need for your Vermont Castings Merrimack Insert. This Wood insert has 83 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Merrimack Bottom, Vermont Castings Merrimack Back, Vermont Castings Merrimack Right End, Vermont Castings Merrimack Left End, and Vermont Castings Merrimack Top - Classic Black. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 83 replacement parts available.

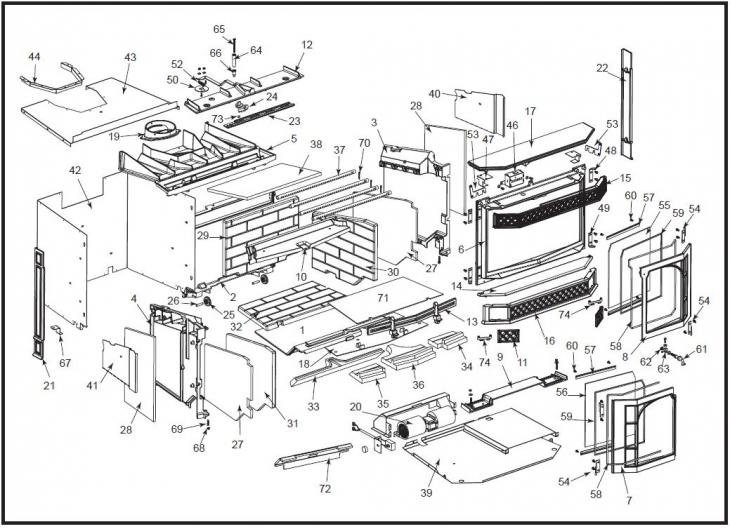

Vermont Castings Merrimack Insert replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Merrimack Bottom (30004620)30004620$263.00
#10Vermont Castings Merrimack Air Manifold (30004629)30004629$110.00
#11Vermont Castings Merrimack Access Door (30004630A)30004630A$79.00
#12Vermont Castings Merrimack Top Cover Plate (30004631)30004631$104.00
#13Vermont Castings Merrimack Andiron (30004635A)30004635A$153.00
#14Vermont Castings Merrimack Ashlip (30004636A)30004636A$103.00
#15Vermont Castings Merrimack Top Front Lattice (30004637A)30004637A$154.00
#16Vermont Castings Merrimack Bottom Front Lattice (30004638A)30004638A$138.00
#17Vermont Castings Merrimack Mantel (30004639A)30004639A$149.00
#18Vermont Castings Merrimack Air Cover Plate (30004640)30004640$147.00
#19Vermont Castings Merrimack, Montpelier & Stratton Flue Collar (30004317A)30004317A$106.00
#2Vermont Castings Merrimack Back (30004621)30004621$311.00
#20Vermont Castings Merrimack Fan Kit Assembly (30004669)30004669$790.00
#20aVermont Castings Merrimack & Montpelier Fan/Blower Only (30004412A)30004412A$405.00
#20bMerrimack & Montpelier Snapstat Wire Assembly (30004406)30004406$59.00
#20cVermont Castings Merrimack & Montpelier Rheostat w/Wire Harness (30004407)30004407$113.00
#20dVermont Castings Power Cord (1601482)1601482$45.00
#20eVermont Castings Merrimack & Montpelier Snapstat (SRV30005236)SRV30005236$33.00
#20fVermont Castings Merrimack, Radiance BV30, & Fan Kit 2960 Rheostat D Knob (1604419)1604419$7.00
#21Vermont Castings Merrimack Left Side Panel (30004634A)30004634A$95.00
#22Vermont Castings Merrimack Side Panel - Right (30004673A)30004673A$95.00
#23Vermont Castings Merrimack, Montpelier & Stratton Air Plate (30004315)30004315$42.00
#24Vermont Castings Merrimack, Montpelier & Stratton Pinion (30004320A)30004320A$53.00
#25Vermont Castings Merrimack & Montpelier Wheel (30004319)30004319$17.00
#26Vermont Castings Merrimack & Montpelier Wheel Shaft (30004318)30004318$9.00
#27Vermont Castings Merrimack Insulation - Interior End (30004649)30004649$122.00
#29Vermont Castings Merrimack Back Brick (30004641)30004641$249.00
#3Vermont Castings Merrimack Right End (30004622)30004622$291.00
#30Vermont Castings Merrimack Right End Brick (30004645)30004645$280.00
#31Vermont Castings Merrimack Left End Brick (30004646)30004646$306.00
#32Vermont Castings Merrimack Bottom Low Brick (30004642)30004642$281.00
#33Vermont Castings Merrimack Bottom Slant Brick (30004643)30004643$141.00
#34Vermont Castings Merrimack Bottom Front Right Brick (30004644)30004644$81.00
#35Vermont Castings Merrimack Bottom Front Left Brick (30004955)30004955$69.00
#36Merrimack Fireplace Insert Bottom Upper Center Brick (30004956)30004956$141.00
#37Vermont Castings Merrimack, Montpelier, & Stratton Secondary Air Tube A (30004377)30004377$46.00
#38Vermont Castings Merrimack Insert Baffle (30004647)30004647$210.00
#4Vermont Castings Merrimack Left End (30004623)30004623$280.00
#43Vermont Castings Top Shroud (30004660)30004660$210.00
#46Vermont Castings Merrimack Automatic Air Setback Assembly (30004999)30004999$196.00
#47Vermont Casting Merrimack Mantel Bracket (30004679)30004679$36.00
#5Vermont Castings Merrimack Top - Classic Black (30004624A)30004624A$700.00
#50Vermont Castings Merrimack Disk (30005050)30005050$32.00
#51Vermont Castings Throttle Lever (30005051)30005051$58.00
#52Merrimack Fireplace Insert Spring (30005052)30005052$18.00
#54Vermont Castings Merrimack Insert Door Hinge Bracket (30004947)30004947$25.00
#55Vermont Castings Merrimack Fireplace Insert Right Glass (30004654)30004654$400.00
#56Merrimack Fireplace Insert Left Glass (30004655)30004655$388.00
#57Vermont Castings Merrimack Glass Clip (30004957A)30004957A$19.00
#58Vermont Castings 3/8" Low Density Door Gasket- SOLD PER FOOT (1203589)1203589$2.00
#59Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#6Vermont Castings Merrimack Front (30004625A)30004625A$299.00
#60Vermont Castings Glass Clip Screws - 10 Pack (1200998-10)1200998-10$11.00
#61Vermont Castings Front Steel Door Handle (30002717)30002717$55.00
#62Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#63Vermont Castings Pawl Assembly - Roller (30005157)30005157$31.00
#64Vermont Castings Maple Damper Handle - Only (1600664)1600664$7.00
#65Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#66Vermont Castings Handle Insert (1600650)1600650$17.00
#68Vermont Castings Acorn Nut, 1/4-20 (1203118)1203118$10.00
#7Vermont Castings Merrimack Left Door (30004626A)30004626A$160.00
#70Vermont Castings Merrimack & Montpelier Cotter Pin (30004405)30004405$7.00
#71Vermont Castings Merrimack Bottom Insulation (30004650)30004650$51.00
#72Merrimack, Montpelier, & Stratton Insulation Bottom Heat Shield (30004402)30004402$10.00
#73Vermont Castings Friction Spring (1201846)1201846$4.00
#74Vermont Castings Access Bracket (30004949)30004949$10.00
#75Vermont Castings Merrimack Insert Bottom Door Hinge Bracket Bushing (30005225)30005225$19.00
#8Vermont Castings Merrimack Right Door - Classic Black (30004627A)30004627A$172.00
#9Vermont Castings Merrimack Base Plate (30004628)30004628$174.00
#N/SVermont Castings Complete Fallaway Handle Assembly (30004175K)30004175K$48.00
#N/SMerrimack Fireplace Insert Finish Bag (30005227K)30005227K$103.00
