Vermont Castings Resolute Acclaim 0041 Parts

Vermont Castings Resolute Acclaim 0041 Interactive Parts Finder

Find the exact replacement parts you need for your Vermont Castings Resolute Acclaim 0041. This Wood stove has 100 parts mapped in our interactive diagram below. Common replacement parts include Resolute Acclaim 0041 & 2490 Bottom, Resolute Acclaim 0041 & 2490 Leg, Vermont Castings Leg Leveler Bolt, Resolute Acclaim 0041& 2490 Primary Air Valve, and Vermont Castings Friction Spring. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 100 replacement parts available.

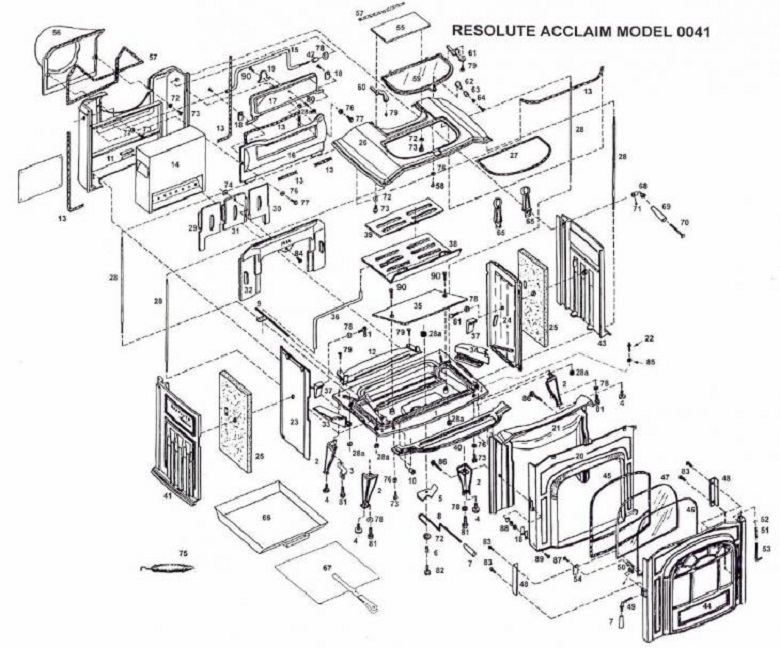

Vermont Castings Resolute Acclaim 0041 replacement parts diagram
Part #Part NamePart CodePrice
#1Resolute Acclaim 0041 & 2490 Bottom (1301854)1301854$270.00
#11Resolute Acclaim 0041 & 2490 Back (1301860A)1301860A$340.00
#12Resolute Acclaim 0041 & 2490 Package Support Plate (1301809)1301809$57.00
#13Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#13Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#14Vermont Castings Resolute Acclaim Combustion Package (1602497A)1602497A$952.00
#15Vermont Castings Resolute Acclaim 0041& 2490 Damper Rod (1600853)1600853$104.00
#16Resolute Acclaim 0041& 2490 Upper Fireback (1301805A)1301805A$109.00
#17Resolute Acclaim 0041 & 2490 Damper (1301829A)1301829A$90.00
#18Vermont Castings Damper Tab (1601488)1601488$3.00
#19Vermont Castings Damper Ramp (1301811A)1301811A$42.00
#2Resolute Acclaim 0041 & 2490 Leg (1301833A)1301833A$66.00
#2Resolute Acclaim 0041 & 2490 Leg (1301833A)1301833A$66.00
#2Resolute Acclaim 0041 & 2490 Leg (1301833A)1301833A$66.00
#2Resolute Acclaim 0041 & 2490 Leg (1301833A)1301833A$66.00
#20Resolute Acclaim 0041 & 2490 Front (1301861)1301861$168.00
#21Resolute Acclaim 0041 & 2490 Air Manifold (1301803)1301803$74.00
#22Resolute Acclaim & Dauntless Bottom Door Hinge Pin (1600419)1600419$10.00
#23Resolute Acclaim Left Core Fireback (1301848)1301848$120.00
#24Resolute Acclaim Right Core Fireback (1301849)1301849$120.00
#27Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT (1203668)1203668$3.30
#28Vermont Castings Tie Rod (1601640)1601640$32.00
#28Vermont Castings Tie Rod (1601640)1601640$32.00
#28Vermont Castings Tie Rod (1601640)1601640$32.00
#28Vermont Castings Tie Rod (1601640)1601640$32.00
#3Vermont Castings Leg Leveler Bolt (1201745)1201745$4.50
#32Resolute Acclaim 0041 Lower Fireback (1301826A)1301826A$191.00
#33Resolute Acclaim 0041 Lower Fireback (1301826A)1301826A$191.00
#35Resolute Acclaim 0041 & 2490 Pit Plate (1301804)1301804$48.00
#37Vermont Castings Wedge (1301810A)1301810A$23.00
#38Resolute Acclaim 0041 & 2490 Front Grate - Stationary (1301852A)1301852A$113.00
#39Resolute Acclaim 0041 & 2490 Rear Grate - Stationary (1301851A)1301851A$82.00
#4Resolute Acclaim 0041& 2490 Primary Air Valve (1301814)1301814$33.00
#4Resolute Acclaim 0041& 2490 Primary Air Valve (1301814)1301814$33.00
#4Resolute Acclaim 0041& 2490 Primary Air Valve (1301814)1301814$33.00
#40Resolute Acclaim 0041 & 2490 Ashlip (1301819A)1301819A$131.00
#44Resolute Acclaim 0041 & 2490 Door (1301865A)1301865A$292.00
#45Vermont Castings 1/2" Low Density Gasket - 10 Feet (1-00-1203564)1-00-1203564$46.00
#46Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#47Vermont Castings Resolute Acclaim 0041 & 2490 Coated Glass (1401120)1401120$240.00
#48Resolute Acclaim 0041 & 2490 Glass Retainer (1601399)1601399$54.00
#48Resolute Acclaim 0041 & 2490 Glass Retainer (1601399)1601399$54.00
#49Vermont Castings Resolute Acclaim 0041 & 2490 Door Handle Shaft (1600623)1600623$20.00
#5Vermont Castings Friction Spring (1201846)1201846$4.00
#51Resolute Acclaim 0041 & 2490 Compression Spring (1600551)1600551$9.00
#52Vermont Castings Front Door C-Clip (1600553)1600553$10.00
#53Resolute Acclaim Upper Door Pin (1600550)1600550$10.00
#54Resolute Acclaim 0041 & 2490 Latch Spring (1201843)1201843$7.00
#56Vermont Castings Resolute Acclaim 0041 & 2490 Flue Collar - Classic Black (1301816A)1301816A$110.00
#58Vermont Castings Screw for Wooden Griddle Handle (1201308)1201308$3.00
#59Vermont Castings Resolute Acclaim & Intrepid Griddle (1306356A)1306356A$128.00
#60Vermont Castings Left Griddle Quadrant (1301807A)1301807A$69.00
#61Vermont Castings Right Griddle Quadrant (1301832A)1301832A$74.00
#62Vermont Castings Resolute Acclaim Griddle Handle Stub (1600881)1600881$7.00
#63Vermont Castings Maple Wood Knob for Griddle Handles (1600661)1600661$7.00
#64Vermont Castings Bushing for Griddle Handles (1201900)1201900$4.00
#65Vermont Castings Resolute Acclaim 0041 & 2490 Andiron (1301806A)1301806A$68.00
#65Vermont Castings Resolute Acclaim 0041 & 2490 Andiron (1301806A)1301806A$68.00
#66Vermont Castings Resolute Acclaim Ash Pan Assembly (5005775)5005775$129.00
#68Vermont Castings Steel Damper Handle Stub (5004265)5004265$48.00
#69Vermont Castings Maple Damper Handle - Only (1600664)1600664$7.00
#7Vermont Castings Wooden Ash Door Handle - Only (1600663)1600663$8.00
#7Vermont Castings Wooden Ash Door Handle - Only (1600663)1600663$8.00
#70Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#71Vermont Castings Set Screw (1200563)1200563$3.00
#72Vermont Castings Zinc 1/4" Standard Flat Washers- 10 Pack (1202474-10)1202474-10$12.00
#73Vermont Castings Hex Head Cap Screw (1201372)1201372$3.00
#74Vermont Castings 1/4"- 20 Plain Square Nut (1203329)1203329$3.00
#75Vermont Castings Wireform Handle Assembly - Complete Package (0004349)0004349$98.00
#76Quadra-Fire & Vermont Castings 1/4" Narrow Flat Washer - 10 Pack (1202473-10)1202473-10$13.00
#77Vermont Castings 1/4"- 20 X 3/4 Hex Head Cap Screw (1201374)1201374$2.50
#8Vermont Castings Resolute Acclaim Air Valve Shaft (1600621)1600621$14.00
#80Vermont Castings 1/4" - 20 x 1" Striker Bolt - Socket Set Screw (1200436)1200436$3.00
#80Vermont Castings 3/8-16 X 1" Screw (1201432)1201432$8.00
#82Vermont Castings Cap Screw Hex Head 1/4"-20 x 1 1/4" (1201378)1201378$3.00
#84Vermont Castings 1/4" BLK Hex Head Cap Screw (1201376)1201376$3.00
#86Vermont Castings 1/4-20 X 2" Cap Screw (1201392)1201392$8.00
#87Vermont Castings Griddle Handle Stub Screw (1200996)1200996$3.50
#88Vermont Castings 1/4" Flat Washer (1202475)1202475$4.00
#89Vermont Castings 3/4" Striker Bolt (1200461)1200461$4.00
