Drolet Escape 2100 Wood Parts Diagram

Drolet Escape 2100 Wood Interactive Parts Finder

Find the exact replacement parts you need for your Drolet Escape 2100 Wood. This Wood stove has 46 parts mapped in our interactive diagram below. Common replacement parts include SBI Rigid Fire Screen, SBI Round Wooden Black Handle, Drolet 3.5 Series Door Assembly, SBI Door Gasket Kit, and Drolet Replacement Handle w/Latch Kit. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 46 replacement parts available.

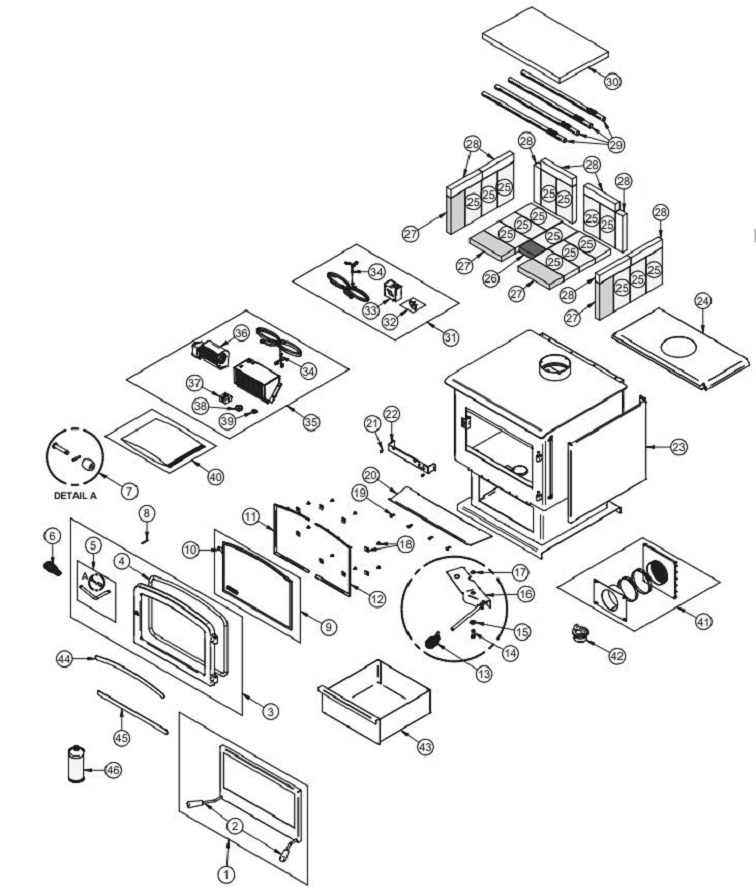

Drolet Escape 2100 Wood replacement parts diagram
Part #Part NamePart CodePrice
#1SBI Rigid Fire Screen (AC01281)AC01281$180.00
#10SBI Self Adhesive Glass Gasket - 6 Feet (AC06400)AC06400$15.00
#11Drolet Glass Frame - Left (PL70833)PL70833$35.00
#12Drolet Glass Frame - Right (PL70832)PL70832$35.00
#13SBI Spring Door Handle - Nickel (30429)30429$10.00
#16Drolet Air Damper Assembly (SE70904)SE70904$50.00
#18SBI Glass Retainers with Screws (SE53585)SE53585$20.00
#2SBI Round Wooden Black Handle (30569)30569$15.00
#20Drolet Ash Shelf (PL70836)PL70836$45.00
#22Drolet Air Control Cover (PL70774)PL70774$45.00
#23Drolet Escape 2100 Decorative Panel (PL70835)PL70835$100.00
#24Drolet Escape 2100 Air Mate Assembly (SE70840)SE70840$125.00
#25Osburn & Drolet Refractory Brick (29010)29010$12.00
#27Drolet Refractory Brick (29015)29015$13.00
#29SBI Secondary Air Tube (PL70864)PL70864$50.00
#3Drolet 3.5 Series Door Assembly (SE24325)SE24325$260.00
#30Drolet Vermiculite Baffle (21585)21585$45.00
#31SBI Quick Connect Thermodisc (AC02055)AC02055$80.00
#32SBI 110 Degree Thermodisc (44028)44028$25.00
#34SBI 8' Power Cord Replacement (60013)60013$24.00
#35Osburn & Drolet 100 CFM Complete Blower Assembly (AC02050)AC02050$235.00
#36SBI 100 CFM Blower Only (44073)44073$170.00
#37SBI Rheostat (44080)44080$55.00
#38SBI Rheostat Knob (44085)44085$9.00
#39SBI Rheostat Nut (44087)44087$6.00
#4SBI Door Gasket Kit (AC06500)AC06500$25.00
#41SBI Fresh Air Intake Kit (AC01336)AC01336$110.00
#42SBI Ash Plug (24096)24096$25.00
#43Drolet HT-3000 Ash Pan (PL70838)PL70838$130.00
#46SBI Metallic Black Stove Paint - 12oz (AC05959)AC05959$26.00
#5Drolet Replacement Handle w/Latch Kit (SE70697)SE70697$40.00
#6SBI 1/2" Chrome Plated Coil Handle (AC07867)AC07867$10.00
#7SBI Door Latch Kit (AC09185)AC09185$30.00
#8SBI Spring Tension Pin (30101)30101$4.00
#9Drolet Glass w/Gasket (SE70903)SE70903$195.00
