Flame Energy XVR-I SE Wood Parts Diagram

Flame Energy XVR-I SE Wood Interactive Parts Finder

Find the exact replacement parts you need for your Flame Energy XVR-I SE Wood. This Wood stove has 55 parts mapped in our interactive diagram below. Common replacement parts include SBI 1/2" Chrome Plated Coil Handle, Handle & Latch Kit for Drolet, Flame & Enerzone Wood/Oil Stoves, Drolet 1800I & Spark Latch Key Path Pin, SBI Steel Door Latch, and Drolet Hex Head Locknut. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 55 replacement parts available.

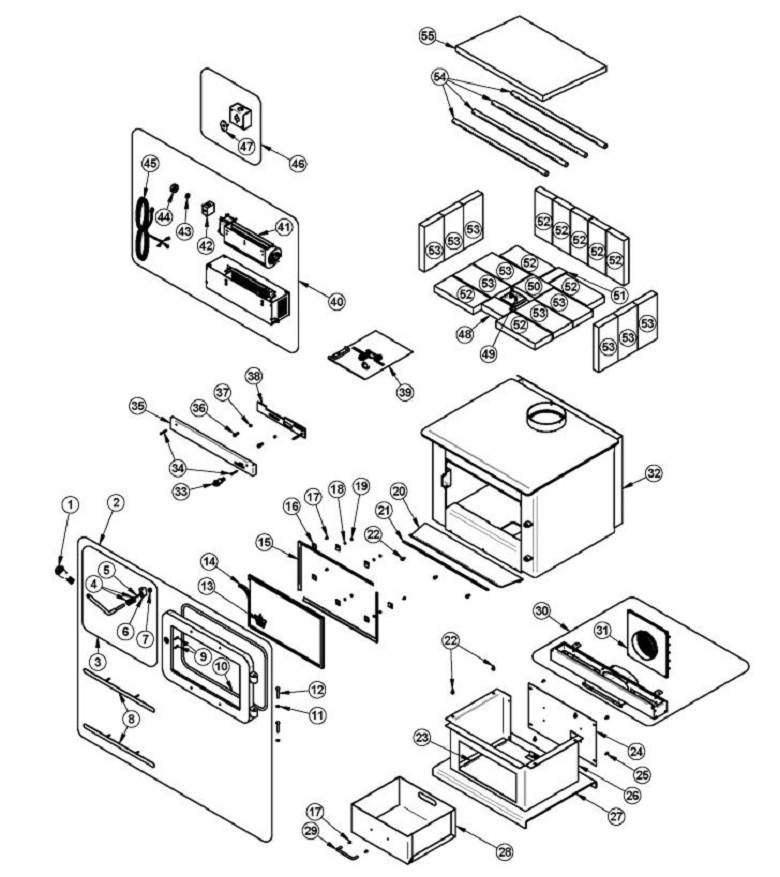

Flame Energy XVR-I SE Wood replacement parts diagram
Part #Part NamePart CodePrice
#1SBI 1/2" Chrome Plated Coil Handle (AC07867)AC07867$10.00
#10SBI Door Gasket Kit (AC06500)AC06500$25.00
#11SCAN 5-2 Baking Door w/Glass - Grey (30055)30055$300.00
#12SBI Door Hinge Pin (30169)30169$4.00
#13Drolet & Flame Energy Glass with Gasket (SE55103-01)SE55103-01$179.25
#14SBI Self Adhesive Glass Gasket - 6 Feet (AC06400)AC06400$15.00
#15Drolet & Flame Energy Glass Retainer Frame (PL55041)PL55041$15.00
#16SBI Glass Retainers with Screws (SE53585)SE53585$20.00
#19Century & Drolet Black Hex Nut #8-32 (30417)30417$3.00
#21Drolet & Flame Energy Decorative Ash Shelf Trim - Nickel (PL06703-01)PL06703-01$30.00
#22Heatilator Caliber & Novus Series SIT Valve Bracket (30060)30060$9.00
#28Drolet & Flame Energy Ash Drawer (SE47076)SE47076$70.00
#29Drolet, Flame & Osburn Ash Drawer Handle - Chrome (28061)28061$11.50
#3Handle & Latch Kit for Drolet, Flame & Enerzone Wood/Oil Stoves (AC09171)AC09171$55.00
#30Drolet & Flame Energy Fresh Air Adapter (AC01337)AC01337$190.00
#33Chrome Plated Coil Handle for Drolet, Flame and Osburn Woodstoves (AC07863)AC07863$10.00
#40SBI Ultra-Quiet 120 CFM Blower (AC03095)AC03095$220.00
#41SBI Convection Blower (44070)44070$175.00
#42SBI Rheostat (44080)44080$55.00
#43SBI Rheostat Nut (44087)44087$6.00
#44SBI Rheostat Knob (44085)44085$9.00
#45SBI 8' Power Cord Replacement (60013)60013$24.00
#46Thermodisc Kit for SBI Woodstoves (AC05530)AC05530$90.00
#49SBI Ash Dump Plug (SE16059)SE16059$30.50
#5Drolet 1800I & Spark Latch Key Path Pin (30533)30533$5.00
#50Century, Drolet & Osburn Refractory Brick (PL36049) PL36049$13.00
#52Drolet Refractory Brick (29015)29015$13.00
#53Osburn & Drolet Refractory Brick (29010)29010$12.00
#54Drolet & Flame Energy Secondary Air Tube - 21-1/2" (PL55095)PL55095$50.00
#55Drolet Classic & Eastwood 1800 Cast Baffle (21216)21216$70.00
#6SBI Steel Door Latch (30033)30033$25.00
#7Drolet Hex Head Locknut (30224)30224$4.00
#9Drolet Pan Quadrex Zinc Screw (30123)30123$3.00
