Harman Absolute 43 Parts Diagram

Harman Absolute 43 Interactive Parts Finder

Find the exact replacement parts you need for your Harman Absolute 43. This Pellet stove has 99 parts mapped in our interactive diagram below. Common replacement parts include Harman Touch Control, Harman Cable Cover Gasket, Harman Hopper Lid Glass, Harman Hopper Lid Screw Posts & Washers - Set of 2, and Harman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5'. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 99 replacement parts available.

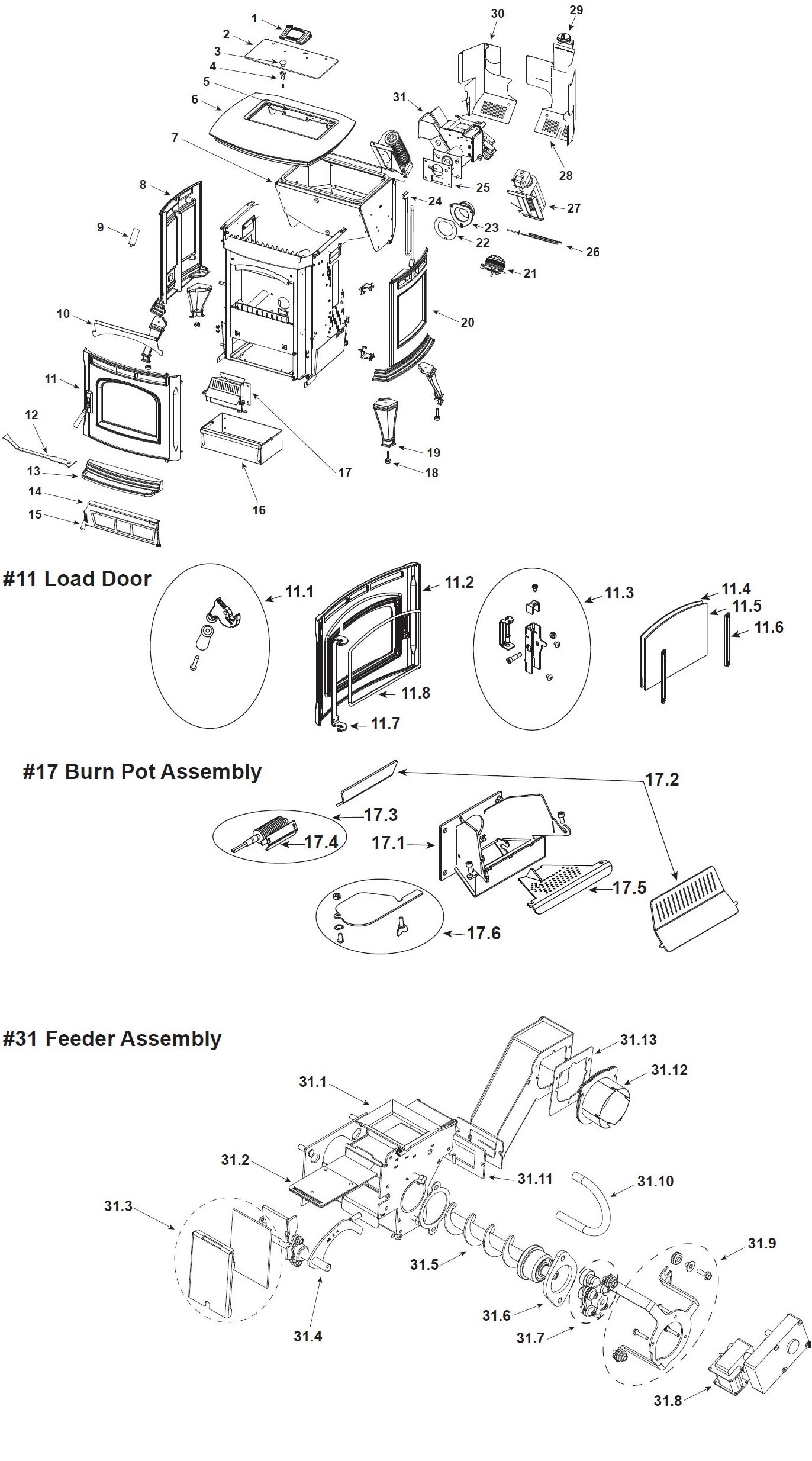

Harman Absolute 43 replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Touch Control (1-00-777552)1-00-777552$604.00
#10Harman Absolute43 Smoke Shield (1-00-777593)1-00-777593$96.00
#11.1Harman Cast Latch, Knob & Screw (1-00-0119)1-00-0119$91.00
#11.2aHarman Absolute43 Black Load Door w/Gasket (4-00-777565P)4-00-777565P$539.00
#11.2bHarman Absolute43 Load Door - Majolica Brown (1-00-777565-14)1-00-777565-14$1,007.00
#11.3Harman Absolute43 & Absolute63 Load Door Latch Bracket with Hardware (1-00-777665)1-00-777665$173.00
#11.4Harman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#11.5Harman Accentra & Absolute43 C Door Glass with Gasket (1-00-777000)1-00-777000$219.00
#11.6Harman Glass Clips with Hardware (1-00-777619)1-00-777619$89.00
#11.7Harman Absolute43 Load Door Hinge with Hardware (1-00-777610)1-00-777610$107.00
#11.8Harman Door Gasket - 1/2" x 20' (1-00-1086204)1-00-1086204$51.00
#13aHarman Absolute43 Ash Lip - Black (3-00-777644P)3-00-777644P$227.00
#13bHarman Absolute43 Ash Lip - Majolica Brown (1-00-777644-14)1-00-777644-14$719.00
#14Harman Absolute43 Ash Door (1-10-777570A)1-10-777570A$371.00
#15Harman Absolute43 & Absolute63 Ash Door Handle Assembly (1-00-777149)1-00-777149$94.00
#16Harman Absolute43 Ash Pan (1-10-777604A)1-10-777604A$179.00
#17.1Harman Burn Pot for Absolute 43 (1-10-777801A)1-10-777801A$223.00
#17.2Harman Absolute 43 Swing Plate & Flame Guide (1-00-777818)1-00-777818$141.00
#17.3Harman Absolute43 Igniter with Bracket (1-00-777200)1-00-777200$213.00
#17.4Harman Absolute43 Igniter Bracket Front - 5 Pack (1-00-777815)1-00-777815$43.00
#17.6Harman Absolute 43 Burn Pot Clean Out (1-00-777824)1-00-777824$33.00
#18Harman Leg Leveling Kit - Set of 4 (1-00-12302)1-00-12302$55.00
#19aHarman Absolute Leg - Black (1-00-249100)1-00-249100$179.00
#19bHarman Absolute Leg - Majolica Brown (1-00-249100-14)1-00-249100-14$439.00
#2Harman Hopper Lid Glass (3-40-777770)3-40-777770$99.00
#20aHarman Absolute43 Cast Right Side - Black (4-00-777646P)4-00-777646P$587.00
#20bHarman Absolute43 Cast Right Side - Majolica Brown (1-00-777646-14)1-00-777646-14$1,235.00
#21Harman Combustion Blower with Capacitor (1-00-02275)1-00-02275$511.00
#22Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#23Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#24HHT Power Cord - 8 Feet (3-20-51578)3-20-51578$30.00
#25Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#26Harman Thermister Probe - ESP Probe Red Wires (3-20-00844)3-20-00844$97.00
#27Harman Absolute 43 100 CFM Transflo Blower (SRV3-21-07775)SRV3-21-07775$292.00
#28Harman Absolute43 Rear Cover - Left (1-00-777615)1-00-777615$204.00
#3Harman Hopper Lid Knob with Screw - Black (1-00-02000-1)1-00-02000-1$53.00
#30Harman Absolute43 Rear Cover - Right (1-00-777613)1-00-777613$270.00
#31Harman Absolute43 & Allure 50 Feeder Body (1-10-777513A)1-10-777513A$527.00
#31.10Harman & Heatilator Eco-Choice Feeder Air Crossover Tube Kit (1-00-67900)1-00-67900$43.00
#31.12HHT UL Air Intake Assembly with Gasket (1-10-06810A)1-10-06810A$56.00
#31.2Harman Slide Plate Assembly (1-10-777690A)1-10-777690A$46.00
#31.3Harman & Heatilator Eco-Choice UL Feeder Cover and Gasket - 2 Sets (1-00-677122)1-00-677122$79.00
#31.4Harman & Heatilator Eco-Choice UL Feeder Pusher Arm (1-10-677187W)1-10-677187W$104.00
#31.5Harman & Heatilator Eco-Choice UL Feeder Auger (3-50-00565)3-50-00565$191.00
#31.6Harman & Heatilator Feeder Bearing Retainer (1-00-04035)1-00-04035$27.00
#31.7Harman Cam Block Assembly (1-10-777620A)1-10-777620A$99.00
#31.8Harman 4 RPM CW Outboard Auger Motor (3-20-00677) - Made in America3-20-00677$200.00
#31.9Harman Auger Motor Mount with Hardware (1-00-777598)1-00-777598$92.00
#4Harman Hopper Lid Latch - Single Set (1-00-0669697)1-00-0669697$30.00
#5Harman Hopper Lid Hinge (1-00-777771)1-00-777771$133.00
#6aHarman Cast Top - Black (4-00-247236S)4-00-247236S$671.00
#6bHarman Absolute43 Cast Top - Majolica Brown (1-00-247236-14)1-00-247236-14$1,319.00
#7Harman Absolute43 Hopper Assembly (1-10-777611A) 1-10-777611A$601.00
#8aHarman Absolute43 Cast Left Side - Black (4-00-777645P)4-00-777645P$455.00
#8bHarman Absolute43 Cast Left Side - Majolica Brown (1-00-777645-14)1-00-777645-14$1,223.00
#9Harman Combustion Blower Capacitor (1-00-00276)1-00-00276$99.00
#IGNTRHarman Genuine 16 Fin 306 Watt Igniter (3-20-677200)3-20-677200$117.00
#N/SHarman Absolute43 Wiring Harness (3-20-08777)3-20-08777$111.00
#N/SHarman Thermostat Extension (3-20-00607)3-20-00607$21.00
#N/SHarman Return Air Sensor (3-20-08780)3-20-08780$38.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SHarman, Heat N Glo & Quadra-Fire Touch Up Paint - Majolica Brown (1-00-0014)1-00-0014$30.00
#N/SHarman Control Board (1-00-05372)1-00-05372$429.00
#N/SHarman Absolute Inlet Cover (1-00-777607)1-00-777607$89.00
#N/SHarman Absolute43 Heat Shield (1-00-777686)1-00-777686$116.00
#N/SHarman Flue Tube Cleaning Brush (3-40-00126)3-40-00126$57.00
#N/SHarman Absolute43/63 External Temp Extension (3-20-70607)3-20-70607$25.00
#N/SHarman Draft Meter Bolt and Tube (1-00-04004)1-00-04004$26.00
#N/SHarman & Heatilator Draft Meter Assembly (1-00-00637)1-00-00637$1,343.00
#N/SHarman Communication Cable (3-20-72662)3-20-72662$22.00
#N/SHarman 5 Amp Ceramic Fuses - 5 Pack (1-00-05237)1-00-05237$40.00
#N/SHarman Absolute43 Rollers & Hardware (1-00-77753)1-00-77753$31.00
#N/SHarman Cable Cover Gasket (3-44-777549)3-44-777549$7.00
#N/SHarman Hopper Lid Screw Posts & Washers - Set of 2 (1-00-129004)1-00-129004$5.50
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman & Vermont Castings Hopper Ball Spring Plunger - Single (3-31-5500)3-31-5500$8.00
#N/SHarman 5/16" Push Retainers - 100 Pack (3-31-94807-100)3-31-94807-100$34.00
#N/SHarman Hopper Lid Hinge Pin Plate (1-00-777560)1-00-777560$80.00
#N/SHarman & Heatilator Eco-Choice Hopper Throat Gasket (3-44-677185)3-44-677185$18.00
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman Absolute43 Hopper Gasket - 20 Feet (1-00-625501)1-00-625501$371.00
#N/SHarman Wood Door Handle (3-40-00247)3-40-00247$9.00
#N/SHarman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#N/SHarman Door Gasket - 1/2" x 20' (1-00-1086204)1-00-1086204$51.00
#N/SHarman Absolute Ash Door Roller Latch (1-00-77723)1-00-77723$34.00
#N/SHarman & Heatilator Eco-Choice Ceramic Fiber Insert Plate Gasket (3-44-237639)3-44-237639$9.00
#N/SHarman Combustion Blower Fan Blade (1-10-574500A)1-10-574500A$71.00
#N/SHarman Absolute43 Pound-In Stud - 30 Pack (1-00-53463220)1-00-53463220$43.00
#N/SHarman Power Entry Module (3-20-803744)3-20-803744$44.00
#N/SHHT Silicone Tubing - 1/8" x 5' (1-00-5113574)1-00-5113574$45.00
