Harman Absolute 63 Parts Diagram

Harman Absolute 63 Interactive Parts Finder

Find the exact replacement parts you need for your Harman Absolute 63. This Pellet stove has 97 parts mapped in our interactive diagram below. Common replacement parts include Harman Touch Control, Harman Cable Cover Gasket, Harman Hopper Lid Glass, Harman Hopper Lid Screw Posts & Washers - Set of 2, and Harman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5'. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 97 replacement parts available.

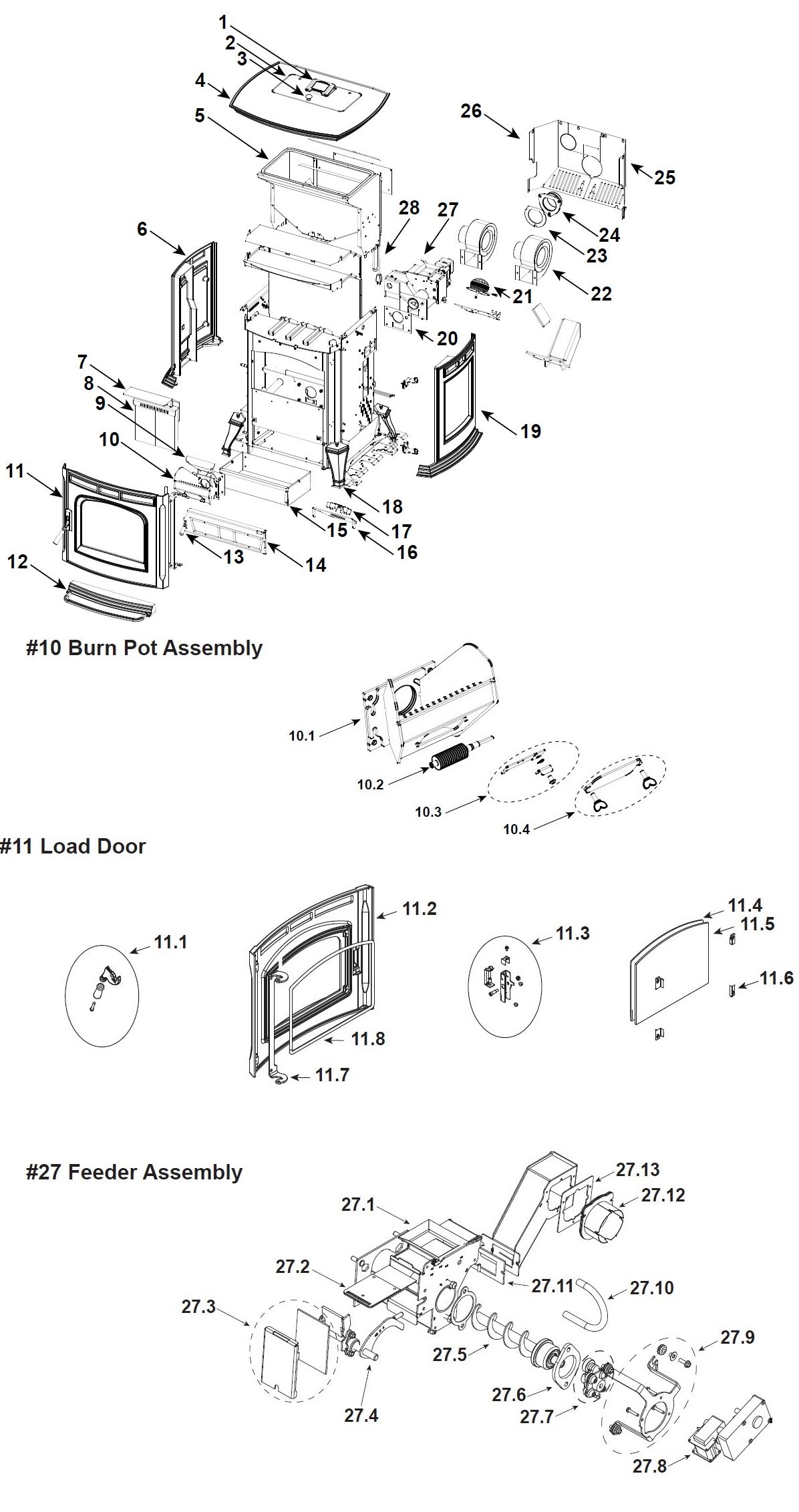

Harman Absolute 63 replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Touch Control (1-00-777552)1-00-777552$604.00
#10.1Harman Absolute 63 Burn Pot Weldment (1-10-999674W)1-10-999674W$347.00
#10.2aHarman Genuine 16 Fin 306 Watt Igniter (3-20-677200)3-20-677200$117.00
#10.3Harman Absolute63 Igniter Cover with Hardware (1-00-574402)1-00-574402$56.00
#10.4Harman & Heatilator Burnpot Clean Out Cover - 2 Sets (1-00-06623)1-00-06623$22.00
#11.1Harman Cast Latch, Knob & Screw (1-00-0119)1-00-0119$91.00
#11.2aHarman Absolute63 Load Door with Gasket - Black (4-00-999144P)4-00-999144P$431.00
#11.2bHarman Absolute63 Roped Load Door - Majolica Brown (1-00-999144-14)1-00-999144-14$945.00
#11.3Harman Absolute43 & Absolute63 Load Door Latch Bracket with Hardware (1-00-777665)1-00-777665$173.00
#11.5Harman Absolute63 Glass with Gasket (1-00-999146)1-00-999146$326.00
#11.6Harman Absolute63 Glass Clips with Hardware (1-00-999145)1-00-999145$126.00
#11.7Harman Load Door Hinge with Hardware (1-00-999114)1-00-999114$121.00
#11.8HHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#12aHarman ABSOLUTE63 Ashlip - Black (3-00-999129P)3-00-999129P$239.00
#12bHarman Absolute63 Ashlip - Majolica Brown (1-00-999129-14)1-00-999129-14$563.00
#13Harman Absolute43 & Absolute63 Ash Door Handle Assembly (1-00-777149)1-00-777149$94.00
#14Harman Absolute 63 Complete Ash Door (1-10-999135A)1-10-999135A$443.00
#15Harman Absolute 63 Ash Pan (1-10-999133A)1-10-999133A$224.00
#16Harman Absolute Inlet Cover (1-00-777607)1-00-777607$89.00
#17Harman Combustion Blower Fan Blade (1-10-574500A)1-10-574500A$71.00
#18aHarman Absolute Leg - Black (1-00-249100)1-00-249100$179.00
#18bHarman Absolute Leg - Majolica Brown (1-00-249100-14)1-00-249100-14$439.00
#19aHarman Absolute63 Right Side - Black (4-00-999131P)4-00-999131P$623.00
#19bHarman Absolute63 Right Side - Majolica Brown (1-00-999131-14)1-00-999131-14$849.00
#2Harman Hopper Lid Glass (3-40-777770)3-40-777770$99.00
#20Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#21Harman Combustion Blower with Capacitor (1-00-02275)1-00-02275$511.00
#22Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#23Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#24Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#25Harman Absolute63 Right Rear Cover (1-00-999125)1-00-999125$203.00
#26Harman Absolute63 Rear Cover - Left (1-00-999126)1-00-999126$174.00
#27.1Harman Feeder Body (1-10-680021W)1-10-680021W$529.00
#27.10Harman & Heatilator Eco-Choice Feeder Air Crossover Tube Kit (1-00-67900)1-00-67900$43.00
#27.11Harman Ultra Air Intake Gasket (UL Feeder Snout Gasket) (3-44-677160)3-44-677160$7.50
#27.12HHT UL Air Intake Assembly with Gasket (1-10-06810A)1-10-06810A$56.00
#27.13Harman and Heatilator Eco-Choice Feeder Air Intake Gasket (3-44-72224)3-44-72224$4.50
#27.2Harman & Heatilator UL Slide Plate Assembly (1-10-677121A)1-10-677121A$99.00
#27.3Harman & Heatilator Eco-Choice UL Feeder Cover and Gasket - 2 Sets (1-00-677122)1-00-677122$79.00
#27.4Harman UL Feeder Pusher Arm (1-10-677131W)1-10-677131W$104.00
#27.5Harman & Heatilator Eco-Choice UL Feeder Auger (3-50-00565)3-50-00565$191.00
#27.6Harman & Heatilator Feeder Bearing Retainer (1-00-04035)1-00-04035$27.00
#27.7Harman Cam Block Assembly (1-10-777620A)1-10-777620A$99.00
#27.8Harman Absolute 63 Auger Motor (3-20-00999)3-20-00999$213.00
#27.9Harman Absolute63 Motor Mount with Hardware (1-00-999111)1-00-999111$144.00
#28HHT Power Cord - 8 Feet (3-20-51578)3-20-51578$30.00
#3Harman Hopper Lid Knob with Screw - Black (1-00-02000-1)1-00-02000-1$53.00
#4aHarman Absolute63 Black Cast Top (4-00-999132S)4-00-999132S$659.00
#4bHarman Absolute63 Top - Majolica Brown (1-00-999132-14)1-00-999132-14$1,211.00
#5Harman Absolute 63 Hopper Assembly (1-10-999157A) 1-10-999157A$529.00
#6aHarman Absolute63 Left Side - Black (4-00-999130P)4-00-999130P$551.00
#6bHarman Absolute63 Left Side - Majolica Brown (1-00-999130-14)1-00-999130-14$859.00
#7Harman Absolute 63 Brick Support (1-10-999779W)1-10-999779W$142.00
#8Harman Firebrick 9 x 4-1/2 x 1-1/4 - Set of 7 (1-00-900450125)1-00-900450125$110.00
#9Harman Flame Guide (3-00-06644)3-00-06644$47.00
#N/SHarman Power Entry Module (3-20-803744)3-20-803744$44.00
#N/SHarman Absolute63 Heat Shield - Majolica Brown (1-00-999144)1-00-999144$191.00
#N/SHarman Draft Meter Bolt and Tube (1-00-04004)1-00-04004$26.00
#N/SHarman Wiring Harness (3-20-08888)3-20-08888$53.00
#N/SHarman, Heat N Glo & Quadra-Fire Touch Up Paint - Majolica Brown (1-00-0014)1-00-0014$30.00
#N/SHarman & Heatilator Draft Meter Assembly (1-00-00637)1-00-00637$1,343.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SHarman Thermostat Extension (3-20-00607)3-20-00607$21.00
#N/SHarman Absolute63 Smoke Shield - Majolica Brown (1-00-999143)1-00-999143$108.00
#N/SHarman Return Air Sensor (3-20-08780)3-20-08780$38.00
#N/SHarman Flue Tube Cleaning Brush (3-40-00126)3-40-00126$57.00
#N/SHarman Communication Cable (3-20-72662)3-20-72662$22.00
#N/SHarman Control Board (1-00-05372)1-00-05372$429.00
#N/SHarman Thermister Probe - ESP Probe Red Wires (3-20-00844)3-20-00844$97.00
#N/SHarman 5 Amp Ceramic Fuses - 5 Pack (1-00-05237)1-00-05237$40.00
#N/SHHT Silicone Tubing - 1/8" x 5' (1-00-5113574)1-00-5113574$45.00
#N/SHarman Absolute43/63 External Temp Extension (3-20-70607)3-20-70607$25.00
#N/SHarman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#N/SHarman Cable Cover Gasket (3-44-777549)3-44-777549$7.00
#N/SHarman Hopper Lid Screw Posts & Washers - Set of 2 (1-00-129004)1-00-129004$5.50
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman Hopper Lid Latch - Single Set (1-00-0669697)1-00-0669697$30.00
#N/SHarman & Vermont Castings Hopper Ball Spring Plunger - Single (3-31-5500)3-31-5500$8.00
#N/SHarman 5/16" Push Retainers - 100 Pack (3-31-94807-100)3-31-94807-100$34.00
#N/SHarman Hopper Lid Hinge (1-00-777771)1-00-777771$133.00
#N/SHarman Hopper Lid Hinge Pin Plate (1-00-777560)1-00-777560$80.00
#N/SHarman & Heatilator Eco-Choice Hopper Throat Gasket (3-44-677185)3-44-677185$18.00
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#N/SHarman & Heatilator Wingscrew 1/4-20 X 5/8 - 2 Pack (3-31-782108)3-31-782108$6.50
#N/SHarman Wood Door Handle (3-40-00247)3-40-00247$9.00
#N/SHarman Absolute Ash Door Roller Latch (1-00-77723)1-00-77723$34.00
#N/SHHT Door Rope Gasket - 30 Feet (1-00-00888)1-00-00888$48.00
#N/SHarman Leg Leveling Kit - Set of 4 (1-00-12302)1-00-12302$55.00
#N/SHarman Combustion Blower Capacitor (1-00-00276)1-00-00276$99.00
#N/SHarman Absolute63 Combustion Blower Studs and Nuts (1-00-99922)1-00-99922$42.00
#N/SHarman & Heatilator Eco-Choice 1/2" Pillow Block - Single (3-31-3614087)3-31-3614087$7.50
#N/SHarman Auger Gaskets - Pack of 5 (1-00-888196)1-00-888196$53.00
