Harman Allure 50 Parts Diagram

Harman Allure 50 Interactive Parts Finder

Find the exact replacement parts you need for your Harman Allure 50. This Pellet stove has 101 parts mapped in our interactive diagram below. Common replacement parts include Harman Touch Control, Harman Cable Cover Gasket, Harman Hopper Lid Knob with Screw - Black, Harman Hopper Lid Latch - Single Set, and Harman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5'. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 101 replacement parts available.

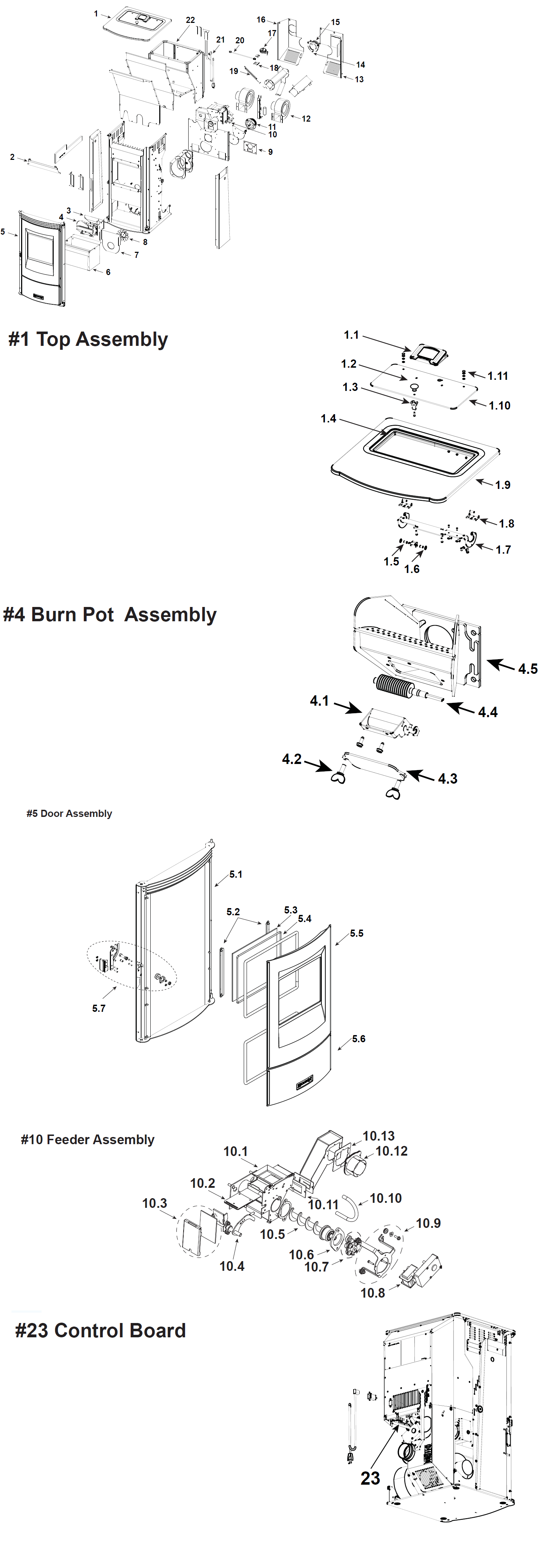

Harman Allure 50 replacement parts diagram
Part #Part NamePart CodePrice
#1.1Harman Touch Control (1-00-777552)1-00-777552$604.00
#1.10Harman Hopper Lid Glass (3-40-777770)3-40-777770$99.00
#1.11Harman Hopper Lid Screw Posts & Washers - Set of 2 (1-00-129004)1-00-129004$5.50
#1.2Harman Hopper Lid Knob with Screw - Black (1-00-02000-1)1-00-02000-1$53.00
#1.3Harman Hopper Lid Latch - Single Set (1-00-0669697)1-00-0669697$30.00
#1.4Harman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#1.6Harman 5/16" Push Retainers - 100 Pack (3-31-94807-100)3-31-94807-100$34.00
#1.7Harman Hopper Lid Hinge (1-00-777771)1-00-777771$133.00
#1.8Harman Hopper Lid Hinge Pin Plate (1-00-777560)1-00-777560$80.00
#1.9Harman Allure50 Cast Top (4-00-888106S)4-00-888106S$676.00
#10.1Harman Absolute43 & Allure 50 Feeder Body (1-10-777513A)1-10-777513A$527.00
#10.10Harman & Heatilator Eco-Choice Feeder Air Crossover Tube Kit (1-00-67900)1-00-67900$43.00
#10.12HHT UL Air Intake Assembly with Gasket (1-10-06810A)1-10-06810A$56.00
#10.13Harman and Heatilator Eco-Choice Feeder Air Intake Gasket (3-44-72224)3-44-72224$4.50
#10.2Harman Slide Plate Assembly (1-10-777690A)1-10-777690A$46.00
#10.3Harman & Heatilator Eco-Choice UL Feeder Cover and Gasket - 2 Sets (1-00-677122)1-00-677122$79.00
#10.4Harman Allure50 Pusher Arm (1-10-888539W)1-10-888539W$263.00
#10.5Harman & Heatilator Eco-Choice UL Feeder Auger (3-50-00565)3-50-00565$191.00
#10.6Harman & Heatilator Feeder Bearing Retainer (1-00-04035)1-00-04035$27.00
#10.7Harman Cam Block Assembly (1-10-777620A)1-10-777620A$99.00
#10.8Harman 4 RPM CW Outboard Auger Motor (3-20-00677) - Made in America3-20-00677$200.00
#10.9Harman Auger Motor Mount with Hardware (1-00-777598)1-00-777598$92.00
#11Harman Combustion Blower with Capacitor (1-00-02275)1-00-02275$511.00
#12Harman Distribution Blower (3-21-33647)3-21-33647$286.00
#13Harman Allure 50 Right Rear Cover (1-10-888124A)1-10-888124A$323.00
#14Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#15Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#16Harman Allure50 Rear Cover - Left (1-10-888123A)1-10-888123A$148.00
#18Harman Wiring Harness (3-20-08888)3-20-08888$53.00
#19Harman Thermister Probe - ESP Probe Red Wires (3-20-00844)3-20-00844$97.00
#2Harman Allure Series Smoke Shield (1-00-888116)1-00-888116$101.00
#20Harman Communication Cable (3-20-72662)3-20-72662$22.00
#21HHT Power Cord - 8 Feet (3-20-51578)3-20-51578$30.00
#23Harman Control Board (1-00-05372)1-00-05372$429.00
#3Harman Flame Guide (3-00-06644)3-00-06644$47.00
#4.2Harman & Heatilator Wingscrew 1/4-20 X 5/8 - 2 Pack (3-31-782108)3-31-782108$6.50
#4.3Harman & Heatilator Burnpot Clean Out Cover - 2 Sets (1-00-06623)1-00-06623$22.00
#4.4AHarman Genuine 16 Fin 306 Watt Igniter (3-20-677200)3-20-677200$117.00
#4.5Harman Allure50 Burn Pot (1-10-888194W)1-10-888194W$337.00
#5.1Harman Allure50 Door Frame (1-10-888515W)1-10-888515W$479.00
#5.3Harman Allure50 Glass with Gasket (1-00-888150)1-00-888150$236.00
#5.4Harman, Heatilator and Vermont Castings Glass Gasket - 15 Feet (1-00-2312)1-00-2312$30.00
#5.5Harman Allure50 Load Door with Gasket (4-00-888108S)4-00-888108S$923.00
#5.6Harman Allure50 Ash Door with Gasket (4-00-888109S)4-00-888109S$551.00
#5.7Harman Allure Series Latch Kit (1-00-888136)1-00-888136$149.00
#6AHarman Allure50 Ash Pan Assembly (1-10-888168A)1-10-888168A$299.00
#6BHarman Allure 50 Ash Pan Parts Bag (1-00-888274)1-00-888274$128.00
#7Harman Allure50 Inlet Cover (1-10-888158)1-10-888158$108.00
#8Harman Combustion Blower Fan Blade (1-10-574500A)1-10-574500A$71.00
#9Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#N/SHarman Cable Cover Gasket (3-44-777549)3-44-777549$7.00
#N/SHarman 1/2" x 20' Round Graphite Gasket (1-00-1086415)1-00-1086415$173.00
#N/SHarman 1/2" x 20' Round Graphite Gasket (1-00-1086415)1-00-1086415$173.00
#N/SHarman Allure50 Latch Roller with Hardware (1-00-888210)1-00-888210$48.00
#N/SHarman & Heatilator Eco-Choice 1/2" Pillow Block - Single (3-31-3614087)3-31-3614087$7.50
#N/SHarman Auger Gaskets - Pack of 5 (1-00-888196)1-00-888196$53.00
#N/SHarman UL Feeder Cam Bearing (3-31-3014)3-31-3014$11.00
#N/SHarman Combustion Blower Capacitor (1-00-00276)1-00-00276$99.00
#N/SHarman Blower Mounting Studs and Nuts -5 Set (1-00-632150)1-00-632150$22.00
#N/SHHT Silicone Tubing - 1/8" x 5' (1-00-5113574)1-00-5113574$45.00
#N/SHarman Power Entry Module (3-20-803744)3-20-803744$44.00
#N/SHarman & Heatilator Eco-Choice Hopper Throat Gasket (3-44-677185)3-44-677185$18.00
#N/SHarman & Heatilator Eco-Choice Hopper Lid Gasket - 3/8" x 1/2" x 5' (1-00-375501)1-00-375501$38.00
#N/SHarman 5 Amp Ceramic Fuses - 5 Pack (1-00-05237)1-00-05237$40.00
#N/SHarman Allure50 Brushed Stainless Left Side Panel (1-00-88857-6)1-00-88857-6$767.00
#N/SHarman Allure Series Left Side Panel - Gloss Black (1-00-88857-26)1-00-88857-26$599.00
#N/SHarman Allure Series Left Side Panel - Frost (1-00-88857-28)1-00-88857-28$599.00
#N/SHarman Allure Series Left Side Panel - Red (1-00-88857-29)1-00-88857-29$499.00
#N/SHarman Allure50 Left Side Panel - Satin Black (1-00-88857-1)1-00-88857-1$539.00
#N/SHarman Allure50 Right Side Panel - Brushed Stainless (1-00-88877-6)1-00-88877-6$549.00
#N/SHarman Allure50 Right Side Panel - Gloss Black (1-00-88877-26)1-00-88877-26$599.00
#N/SHarman Allure50 Right Side Panel - Frost (1-00-88877-28)1-00-88877-28$529.00
#N/SHarman Allure50 Right Side Panel - Red (1-00-88877-29)1-00-88877-29$563.00
#N/SHarman Allure50 Right Side Panel - Satin Black (1-00-88877-1)1-00-88877-1$452.00
#N/SHarman Allure50 Narrow Left Column - Brushed Stainless (1-00-88856-6)1-00-88856-6$215.00
#N/SHarman Allure Series Left Narrow Column - Gloss Black (1-00-88856-26)1-00-88856-26$129.00
#N/SHarman Allure Series Left Narrow Column - Frost (1-00-88856-28)1-00-88856-28$162.00
#N/SHarman Allure Series Left Narrow Column - Red (1-00-88856-29)1-00-88856-29$150.00
#N/SHarman Allure50 Narrow Right Column - Brushed Stainless (1-00-88876-6)1-00-88876-6$215.00
#N/SHarman Allure Series Right Narrow Column - Gloss Black (1-00-88876-26)1-00-88876-26$129.00
#N/SHarman Allure Series Right Narrow Column - Frost (1-00-88876-28)1-00-88876-28$162.00
#N/SHarman Allure Series Right Narrow Column - Red (1-00-88876-29)1-00-88876-29$129.00
#N/SHarman Allure50 Left Wide Column - Satin Black (1-00-88859-1)1-00-88859-1$127.00
#N/SHarman Allure50 Right Wide Column - Satin Black (1-00-88879-1)1-00-88879-1$135.00
#N/SHarman & Heatilator Draft Meter Assembly (1-00-00637)1-00-00637$1,343.00
#N/SHarman Draft Meter Bolt and Tube (1-00-04004)1-00-04004$26.00
#N/SHarman Leg Leveling Kit - Set of 4 (1-00-12302)1-00-12302$55.00
#N/SHarman Return Air Sensor (3-20-08780)3-20-08780$38.00
#N/SHarman Allure50 & AllureCE Touch Up Paint - Black Gloss (1-00-0026)1-00-0026$100.00
#N/SHarman Allure50 & AllureCE Touch Up Paint - Gloss White (1-00-0028)1-00-0028$92.00
#N/SHarman Allure50 & AllureCE Touch Up Paint - Red (1-00-0029)1-00-0029$92.00
#N/SHarman Allure50 & AllureCE Touch Up Paint - Satin Black (1-00-0001)1-00-0001$67.00
