Harman TL 2.0 Wood Parts Diagram

Harman TL 2.0 Wood Interactive Parts Finder

Find the exact replacement parts you need for your Harman TL 2.0 Wood. This Wood stove has 29 parts mapped in our interactive diagram below. Common replacement parts include Harman TL2.0 & TL2.6 Top Load Door, Harman TL2.0 & 2.6 Damper Frame Assembly, Harman Rear Brick Retainer - 2 Pack, Harman Wooden Oak Door Handle - Set of 2, and Harman Damper Handle Elbow. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 29 replacement parts available.

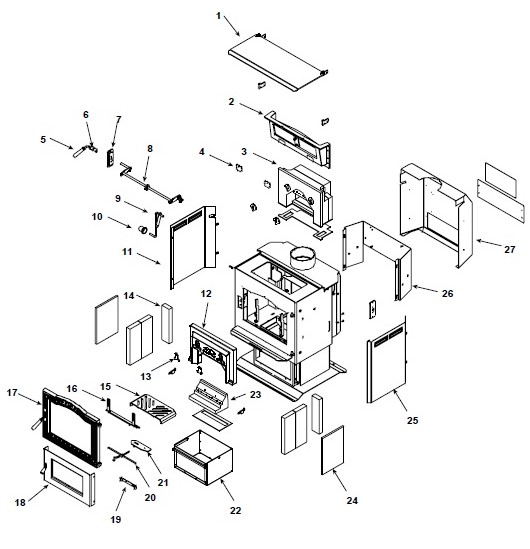

Harman TL 2.0 Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Harman TL2.0 & TL2.6 Top Load Door (1-10-856509A)1-10-856509A$664.00
#10Harman Wooden Knob with Bolt - 2 Sets (1-00-06228)1-00-06228$40.00
#11Harman Painted Left Side Panel (2-00-856023B)2-00-856023B$467.00
#13Harman TL2.0 & TL2.6 Brick Air Plates - Set of 2 (1-00-358118)1-00-358118$58.00
#14Harman TL2.0 Side and Rear Firebrick- 6 Piece Set (1-00-856077)1-00-856077$328.00
#15Harman TL2.0 Ash Grate (2-00-856013B)2-00-856013B$191.00
#16Harman Woodstove Andiron and Extension Kit w/Hardware (1-00-856010)1-00-856010$191.00
#17Harman Door Assembly w/ Glass (1-10-06920A)1-10-06920A$1,278.00
#18Harman TL2.0 & TL2.6 Ash Door Assembly (1-10-856005A)1-10-856005A$731.00
#19Harman TL2.0 & TL2.6 Airslide Rod Bracket (1-00-856008)1-00-856008$263.00
#1AHarman TL2.0 & TL2.6 Top Load Door Assembly - Black (1-10-856009A)1-10-856009A$743.00
#2Harman TL2.0 & 2.6 Damper Frame Assembly (1-10-250109A)1-10-250109A$642.00
#20Harman TL2.0 & TL2.6 Air Control Weldment (1-10-856004W)1-10-856004W$142.00
#21Harman TL2.0 & TL2.6 Air Slide Assembly (1-10-856003W)1-10-856003W$116.00
#22Harman TL2.0 Ash Pan (1-10-856006A)1-10-856006A$419.00
#23Harman Combustion Shoe Brick (3-40-00100)3-40-00100$258.00
#23AHarman TL300 & 300i Shoe Brick Gasket (3-44-06951)3-44-06951$19.00
#24Harman TL2.0 Brick Insulation (3-40-856086)3-40-856086$32.00
#25Harman Painted Right Side Panel (2-00-856024B)2-00-856024B$455.00
#26Harman Painted Heat Shield Mounting Plate (2-00-856026B)2-00-856026B$395.00
#27Harman TL2.0 Rear Heat Shield with Hardware (1-00-856025)1-00-856025$659.00
#4Harman Rear Brick Retainer - 2 Pack (1-00-249135)1-00-249135$26.00
#5Harman Wooden Oak Door Handle - Set of 2 (1-00-00249)1-00-00249$30.00
#6Harman Damper Handle Elbow (3-50-00500S)3-50-00500S$191.00
#7Harman TL2.0 & TL2.6 Damper Shaft Bushing Plates (1-00-856061)1-00-856061$191.00
#8Harman TL2.0 & TL2.6 Damper Rod Weldment (1-10-856011W)1-10-856011W$232.00
#9Harman TLC-2000 Damper Linkage Arm Weldment (1-10-08722)1-10-08722$99.00
