Harman TL 2.6 with Legs Wood Parts Diagram

Harman TL 2.6 with Legs Wood Interactive Parts Finder

Find the exact replacement parts you need for your Harman TL 2.6 with Legs Wood. This Wood stove has 34 parts mapped in our interactive diagram below. Common replacement parts include Harman TL2.0 & 2.6 Damper Frame Assembly, Harman Rear Brick Retainer - 2 Pack, Harman TL2.0 & TL2.6 Complete Gasket Set, Harman Wooden Oak Door Handle - Set of 2, and Harman Damper Handle Elbow. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 34 replacement parts available.

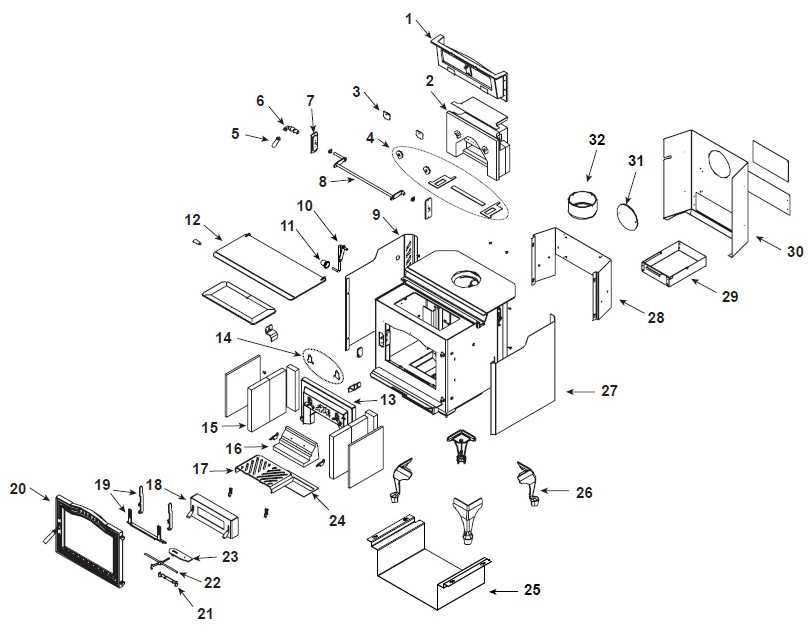

Harman TL 2.6 with Legs Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Harman TL2.0 & 2.6 Damper Frame Assembly (1-10-250109A)1-10-250109A$642.00
#10Harman TLC-2000 Damper Linkage Arm Weldment (1-10-08722)1-10-08722$99.00
#11Harman Wooden Knob with Bolt - 2 Sets (1-00-06228)1-00-06228$40.00
#12Harman TL2.0 & TL2.6 Top Load Door (1-10-856509A)1-10-856509A$664.00
#12AHarman TL2.0 & TL2.6 Top Load Door Assembly - Black (1-10-856009A)1-10-856009A$743.00
#14Harman TL2.0 & TL2.6 Brick Air Plates - Set of 2 (1-00-358118)1-00-358118$58.00
#15Harman TL2.6 Side and Rear Firebrick- 4 Piece Set (1-00-857047)1-00-857047$228.00
#16Harman Combustion Shoe Brick (3-40-00100)3-40-00100$258.00
#17Harman Ash Grate (2-00-857052B)2-00-857052B$180.00
#18Harman TL2.6 with Legs Ash Door Assembly (1-10-857036A)1-10-857036A$587.00
#19Harman Woodstove Andiron and Extension Kit w/Hardware (1-00-856010)1-00-856010$191.00
#20Harman Door Assembly w/ Glass (1-10-06920A)1-10-06920A$1,278.00
#21Harman TL2.0 & TL2.6 Airslide Rod Bracket (1-00-856008)1-00-856008$263.00
#22Harman TL2.0 & TL2.6 Air Control Weldment (1-10-856004W)1-10-856004W$142.00
#23Harman TL2.0 & TL2.6 Air Slide Assembly (1-10-856003W)1-10-856003W$116.00
#24Harman TL300 & 300i Shoe Brick Gasket (3-44-06951)3-44-06951$19.00
#25Harman TL2.6 Bottom Heat Shield (1-00-857056)1-00-857056$311.00
#26Harman TL2.6 Queen Anne Leg with Hardware (1-00-7000551)1-00-7000551$251.00
#27Harman Painted Right Side Panel (2-00-857021B)2-00-857021B$254.00
#28Harman Painted Heat Shield Mounting Plate (2-00-856026B)2-00-856026B$395.00
#29Harman TL2.6 Ash Pan (1-10-857037A)1-10-857037A$419.00
#3Harman Rear Brick Retainer - 2 Pack (1-00-249135)1-00-249135$26.00
#30Harman TL2.6 Rear Heat Shield with Hardware (1-00-857024)1-00-857024$325.00
#31Harman Rear Flue Collar Weldment (1-10-857038W) 1-10-857038W$285.00
#31AHarman Flue Collar Weldment (1-10-857001W) 1-10-857001W$223.00
#32Harman TL2.6 Flue Opening Cover (1-00-857023)1-00-857023$130.00
#4Harman TL2.0 & TL2.6 Complete Gasket Set (3-44-358110)3-44-358110$122.00
#5Harman Wooden Oak Door Handle - Set of 2 (1-00-00249)1-00-00249$30.00
#6Harman Damper Handle Elbow (3-50-00500S)3-50-00500S$191.00
#7Harman TL2.0 & TL2.6 Damper Shaft Bushing Plates (1-00-856061)1-00-856061$191.00
#8Harman TL2.0 & TL2.6 Damper Rod Weldment (1-10-856011W)1-10-856011W$232.00
#9Harman TL2.6 Painted Left Side Panel (2-00-857019B)2-00-857019B$383.00
