Harman TL 2.6 with Pedestal Wood Parts Diagram

Harman TL 2.6 with Pedestal Wood Interactive Parts Finder

Find the exact replacement parts you need for your Harman TL 2.6 with Pedestal Wood. This Wood stove has 31 parts mapped in our interactive diagram below. Common replacement parts include Harman TL2.0 & TL2.6 Top Load Door, Harman TLC-2000 Damper Linkage Arm Weldment, Harman Wooden Knob with Bolt - 2 Sets, Harman TL2.0 & 2.6 Damper Frame Assembly, and Harman Rear Brick Clips - Set of 2. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 31 replacement parts available.

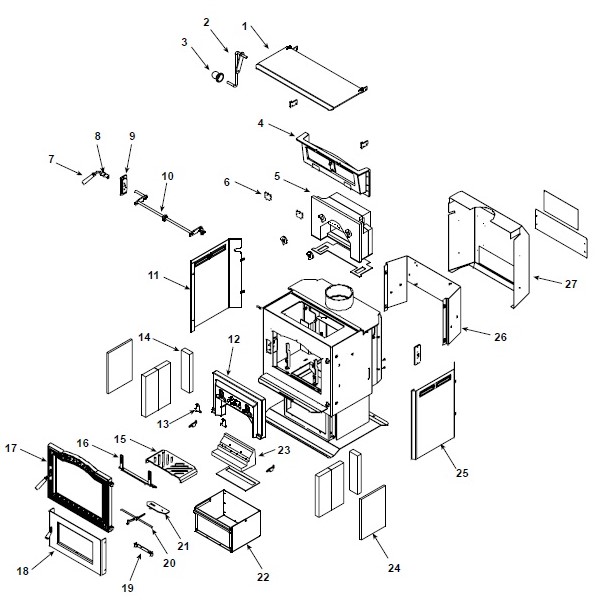

Harman TL 2.6 with Pedestal Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Harman TL2.0 & TL2.6 Top Load Door (1-10-856509A)1-10-856509A$664.00
#10Harman TL2.0 & TL2.6 Damper Rod Weldment (1-10-856011W)1-10-856011W$232.00
#11Harman TL2.6 Painted Left Side Panel (2-00-857019B)2-00-857019B$383.00
#13Harman TL2.0 & TL2.6 Brick Air Plates - Set of 2 (1-00-358118)1-00-358118$58.00
#14Harman TL2.6 Side and Rear Firebrick- 4 Piece Set (1-00-857047)1-00-857047$228.00
#15Harman Ash Grate (2-00-857052B)2-00-857052B$180.00
#16Harman Woodstove Andiron and Extension Kit w/Hardware (1-00-856010)1-00-856010$191.00
#17Harman Door Assembly w/ Glass (1-10-06920A)1-10-06920A$1,278.00
#18Harman TL2.0 & TL2.6 Ash Door Assembly (1-10-856005A)1-10-856005A$731.00
#19Harman TL2.0 & TL2.6 Airslide Rod Bracket (1-00-856008)1-00-856008$263.00
#1AHarman TL2.0 & TL2.6 Top Load Door Assembly - Black (1-10-856009A)1-10-856009A$743.00
#2Harman TLC-2000 Damper Linkage Arm Weldment (1-10-08722)1-10-08722$99.00
#20Harman TL2.0 & TL2.6 Air Control Weldment (1-10-856004W)1-10-856004W$142.00
#21Harman TL2.0 & TL2.6 Air Slide Assembly (1-10-856003W)1-10-856003W$116.00
#22Harman TL2.6 Ash Pan (1-10-857002A)1-10-857002A$467.00
#23Harman Combustion Shoe Brick (3-40-00100)3-40-00100$258.00
#23AHarman TL300 & 300i Shoe Brick Gasket (3-44-06951)3-44-06951$19.00
#24Harman TL2.6 Brick Insulation (3-40-857054)3-40-857054$48.00
#25Harman Painted Right Side Panel (2-00-857021B)2-00-857021B$254.00
#26Harman Painted Heat Shield Mounting Plate (2-00-856026B)2-00-856026B$395.00
#27Harman TL2.6 Rear Heat Shield with Hardware (1-00-857024)1-00-857024$325.00
#3Harman Wooden Knob with Bolt - 2 Sets (1-00-06228)1-00-06228$40.00
#4Harman TL2.0 & 2.6 Damper Frame Assembly (1-10-250109A)1-10-250109A$642.00
#5AHarman Brick Air Gasket - 4 Pack (3-44-2500202-4)3-44-2500202-4$31.00
#5BHarman TL2.0 & TL2.6 Complete Gasket Set (3-44-358110)3-44-358110$122.00
#6Harman Rear Brick Clips - Set of 2 (1-00-249153)1-00-249153$50.00
#7Harman Wooden Oak Door Handle - Set of 2 (1-00-00249)1-00-00249$30.00
#8Harman Damper Handle Elbow (3-50-00500S)3-50-00500S$191.00
#9Harman TL2.0 & TL2.6 Damper Shaft Bushing Plates (1-00-856061)1-00-856061$191.00
