Harman XXV Pellet Parts Diagram

Harman XXV Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Harman XXV Pellet. This Pellet stove has 63 parts mapped in our interactive diagram below. Common replacement parts include Harman Flue Tailpipe - Cast, Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set, Harman XXV Right Feeder Shield, Harman XXV & XXV-TC Feeder Shield - Left, and Harman XXV Hopper Assembly. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 63 replacement parts available.

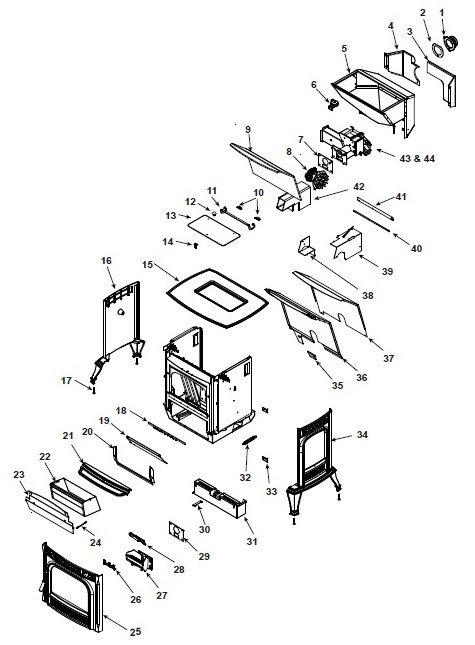

Harman XXV Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Harman Flue Tailpipe - Cast (3-00-247237)3-00-247237$38.00
#10Harman Hopper Hinge Plate (2-00-06695L)2-00-06695L$13.00
#11Harman Hopper Lid Hinge (2-00-06694)2-00-06694$126.00
#12Harman Hopper Lid Knob with Screw - Gold (1-00-02000)1-00-02000$43.00
#13Harman Accentra FS and XXV Hopper Lid Glass (3-40-247100)3-40-247100$117.00
#14Harman Hopper Lid Latch - Single Set (1-00-0669697)1-00-0669697$30.00
#15Harman XXV & XXV-TC Black Top (4-00-677057P)4-00-677057P$579.00
#15AHarman XXV Top - Majolica Brown Porcelain (1-10-677057-14V)1-10-677057-14V$958.00
#15BHarman XXV & XXV-TC Top - Majolica Brown Porcelain (1-10-677057-14)1-10-677057-14$1,317.00
#15CHarman XXV & XXV-TC Top - Dark Blue Porcelain (1-10-677057-20)1-10-677057-20$1,619.00
#15DHarman XXV Series Top - Frost Porcelain (1-10-677057-21)1-10-677057-21$1,787.00
#15EHarman XXV & XXV-TC Top - Light Grey (1-10-677057-22)1-10-677057-22$1,715.00
#16Harman XXV & XXV-TC Left Side - Black (4-00-677055P)4-00-677055P$638.00
#16AHarman Left Side - Majolica Brown (1-10-677055-14V) 1-10-677055-14V$937.00
#16BHarman XXV & XXV-TC Left Side - Majolica Brown (1-10-677055-14)1-10-677055-14$1,259.00
#16CHarman XXV & XXV-TC Left Side - Dark Blue Porcelain (1-10-677055-20)1-10-677055-20$1,679.00
#16DHarman XXV & XXV-TC Left Side - Porcelain Frost (1-10-677055-21)1-10-677055-21$1,739.00
#16EHarman XXV & XXV-TC Left Side - Porcelain Black (1-10-677055-22)1-10-677055-22$1,679.00
#17Harman Leg Leveling Kit - Set of 4 (1-00-12302)1-00-12302$55.00
#18Harman XXV Airwash Reducer (1-00-677300)1-00-677300$37.00
#19Harman XXV & XXV-TC Ash Door Stop (2-00-677096B)2-00-677096B$119.00
#2Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#20Harman XXV & XXV-TC Ash Door Gasket Retainer (2-00-677025B)2-00-677025B$126.00
#21Harman XXV & XXV-TC Ashlip - Black (4-00-677058P)4-00-677058P$323.00
#21AHarman XXV Ash Lip - Majolica Brown Porcelain (1-10-677058-14V)1-10-677058-14V$509.00
#21BHarman XXV & XXV-TC Ash Lip - Majolica Brown (1-10-677058-14)1-10-677058-14$610.00
#21CHarman XXV & XXV-TC Ash Lip - Dark Blue (1-10-677058-20)1-10-677058-20$935.00
#21DHarman XXV & XXV-TC Ash Lip - Frost (1-10-677058-21)1-10-677058-21$1,043.00
#21EHarman XXV & XXV-TC Ash Lip - Black (1-10-677058-22)1-10-677058-22$935.00
#22Harman XXV & XXV-TC Ash Pan (1-10-677044)1-10-677044$247.00
#23Harman XXV & XXV-TC Ash Door Weldment (1-10-677026A)1-10-677026A$215.00
#24Harman XXV & XXV-TC Cable Lanyard (3-31-677070)3-31-677070$8.00
#25Harman XXV & XXV-TC Load Door Assembly - Dark Blue (1-10-677099A-20)1-10-677099A-20$2,099.00
#26Harman XXV Series Letters (2-00-677022S)2-00-677022S$98.00
#27Harman Burn Pot Weldment (1-10-00675)1-10-00675$337.00
#28Harman and Heatilator Eco-Choice Flame Guide (3-00-03000)3-00-03000$48.00
#29Harman & Heatilator Eco-Choice Ceramic Insert Gasket (3-44-724114)3-44-724114$9.00
#3Harman XXV Right Feeder Shield (1-10-677085A)1-10-677085A$181.00
#30Harman XXV-TC & XXV Distribution Blower Mount (2-00-677006L)2-00-677006L$53.00
#31Harman Distribution Blower (1-00-29145)1-00-29145$409.00
#32Harman XXV & XXV-TC Extension Spring (3-31-2181)3-31-2181$13.00
#33Harman Hinge Plate (3-00-674047)3-00-674047$21.00
#34Harman Right Side - Majolica Brown (1-10-677056-14V) 1-10-677056-14V$947.00
#35Harman XXV Air Jacket Filler Plate (2-00-677039B)2-00-677039B$94.00
#36Harman XXV Air Jacket (2-00-677035B)2-00-677035B$191.00
#37Harman XXV Hopper Heat Shield (2-00-677038B)2-00-677038B$215.00
#39Harman XXV Combustion Box Heat Shield (2-00-677040B)2-00-677040B$119.00
#3AHarman XXV & XXV-TC Feeder Shield - Right (1-10-677885A)1-10-677885A$227.00
#4Harman XXV & XXV-TC Feeder Shield - Left (1-10-677084A)1-10-677084A$183.00
#40Harman XXV & XXV-TC Rear Shield Spacer (2-00-677087L)2-00-677087L$28.00
#41Harman Rear Shield Retainer (2-00-677086L)2-00-677086L$28.00
#42Harman XXV and XXV-TC Combustion Box Insulation (3-44-677042)3-44-677042$32.00
#43Harman XXV Feeder Assembly (1-10-677153A) 1-10-677153A$1,376.00
#44Harman XXV Feeder Assembly (1-10-677189A)1-10-677189A$1,823.00
#5Harman XXV Hopper Assembly (1-10-677800A) 1-10-677800A$886.00
#5AHarman XXV Hopper Assembly (1-10-677190A) 1-10-677190A$458.00
#5BHarman XXV Hopper Assembly (1-10-677206A) 1-10-677206A$458.00
#7Harman & Heatilator Eco-Choice Burn Pot & Tailpipe Gasket Set (1-00-07381)1-00-07381$8.50
#8Harman & Heatilator Eco-Choice Combustion Blower Motor (3-21-08639)3-21-08639$214.00
