Heat N Glo 6000GBV Parts Diagram

Heat N Glo 6000GBV Interactive Parts Finder

Find the exact replacement parts you need for your Heat N Glo 6000GBV. This Gas stove has 42 parts mapped in our interactive diagram below. Common replacement parts include Heat N Glo 6000 Series Log Set, Heat N Glo 6000 Series Grate Assembly, Heat N Glo 6000GBV Burner Assembly - NG/LP, HHT Glass Assembly, and HHT Junction Box. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 42 replacement parts available.

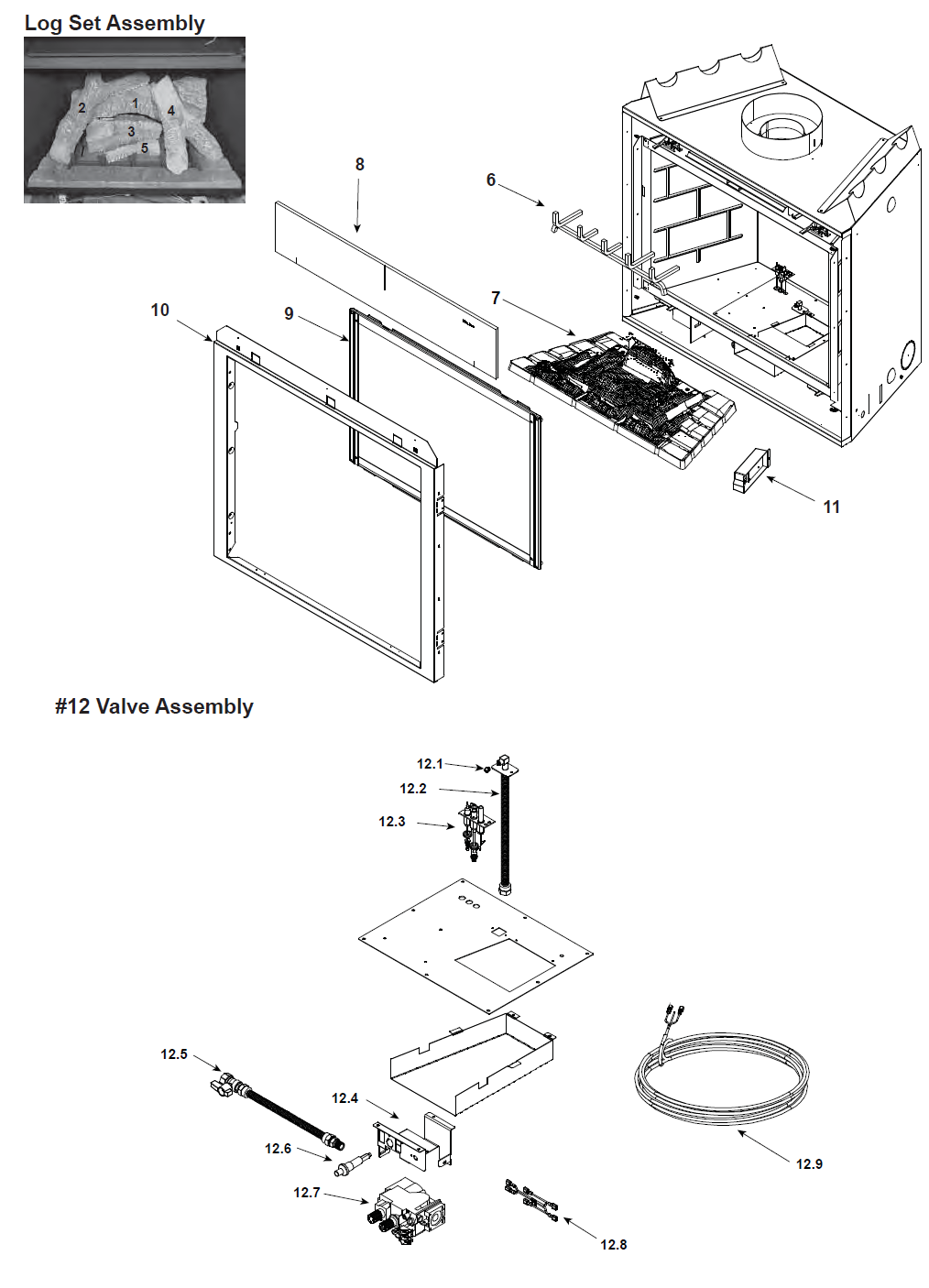

Heat N Glo 6000GBV replacement parts diagram
Part #Part NamePart CodePrice
#11HHT Junction Box (SRV4021-013)SRV4021-013$36.00
#12.1AHHT Orifice #40C - NG (582-840)582-840$7.00
#12.1BHHT Burner Orifice #53C - LP (582-853)582-853$7.00
#12.2Heat N Glo, Heatilator & Quadra-Fire Flex Tube Assembly (383-302A)383-302A$46.00
#12.3AHeat N Glo, Heatilator & Quadra-Fire Pilot Assembly - NG (2103-010)2103-010$115.00
#12.3BHeat N Glo, Heatilator & Quadra-Fire Pilot Assembly - LP (2103-011)2103-011$117.00
#12.4 Heatilator, Heat N Glo & Majestic Valve Bracket (2118-104)2118-104$11.00
#12.5HHT Flex Ball Valve Assembly - 12" (SRV302-320)SRV302-320$50.00
#12.6Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#12.7AQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#12.7BHHT Gas Valve - LP (SRV230-0720)SRV230-0720$224.00
#12.8HHT Remote Wire Assembly (2103-013)2103-013$31.00
#12.9Heat N Glo, Heatilator & Majestic Thermostat Wire Assembly (2045-024)2045-024$7.00
#6Heat N Glo 6000 Series Grate Assembly (2103-005)2103-005$80.00
#7Heat N Glo 6000GBV Burner Assembly - NG/LP (SRV2104-007)SRV2104-007$2,543.00
#9HHT Glass Assembly (GLA-6000G)GLA-6000G$425.00
#LOGSETHeat N Glo 6000 Series Log Set (LOGS-6000G)LOGS-6000G$537.00
#N/SHHT Gas Valve Regulator - NG (SRV230-1570)SRV230-1570$53.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
#N/SHHT Pilot Orifice - LP (SRV2103-117)SRV2103-117$44.00
#N/SHHT Pilot Orifice .021 - NG (SRV2103-116)SRV2103-116$17.00
#N/SHeat N Glo 6000GBV Conversion Kit - LP (LPK-6GBV)LPK-6GBV$89.00
#N/SHeat N Glo 6000GBV Conversion Kit - NG (NGK-6GBV)NGK-6GBV$89.00
#N/SHeat N Glo and Heatilator Vermiculite Embers Media (MYSTIC-EMBERS)MYSTIC-EMBERS$16.00
#N/SHHT Touch Up Paint - Black (TUP-GBK-12)TUP-GBK-12$30.00
#N/SHeat N Glo Remote Thermostat (SMART-STAT-HNG)SMART-STAT-HNG$239.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Hood (SRV60-143-BK)SRV60-143-BK$173.00
#N/SHeatilator & Heat N Glo High Limit Switch (SRV4021-383)SRV4021-383$19.00
#N/SHeat N Glo, Heatilator and Quadra-Fire Glass Clips - 2 Pack (386-122A/2)386-122A/2$55.00
#N/SHHT Gas Stove Fan Kit (GFK-160A)GFK-160A$327.00
#N/SHeat N Glo Folio Inside Fit Front - Black (FOL-36-BK)FOL-36-BK$387.00
#N/SHeat N Glo 6000 & 8000 Series 80" Wire Assembly (522-503A)522-503A$26.00
#N/SHeat N Glo, Heatilator and Quadra-Fire PSE Thermopile (2103-512)2103-512$54.00
#N/SHeat N Glo Pilot Assembly - LP (446-511A)446-511A$121.00
