Mt. Vernon AE Pellet Parts Diagram

Mt. Vernon AE Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Mt. Vernon AE Pellet. This Pellet stove has 172 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire MT VERNON-AE Hopper Top, Quadra-Fire Hopper Lid - Matte Black, Quadra-Fire Hopper Lid - Sienna Bronze, Quadra-Fire Hopper Lid - Porcelain Mahogany, and HHT Round Magnet. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 172 replacement parts available.

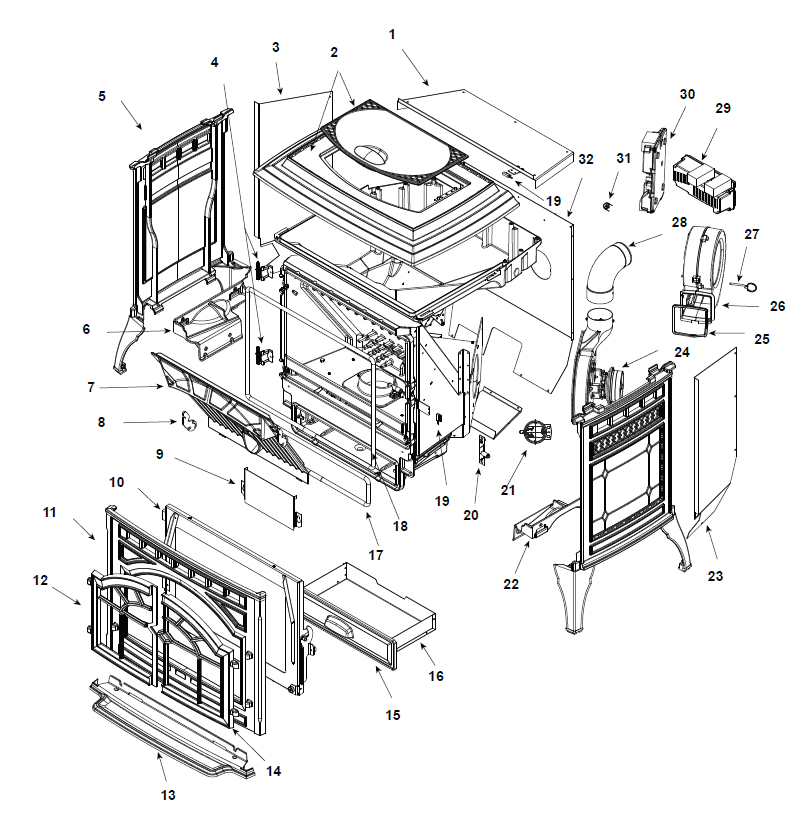

Mt. Vernon AE Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire MT VERNON-AE Hopper Top (7034-169)7034-169$109.00
#10Quadra-Fire MT VERNON AE Door Assembly (7034-006)7034-006$524.00
#10.1Quadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#10.2Quadra-Fire MT VERNON-AE Door Air Deflector (7034-185)7034-185$40.00
#10.3Quadra-Fire Mt Vernon AE Magnet Bracket Assembly (7034-008)7034-008$54.00
#10.4Quadra-Fire Mt Vernon AE Door Frame Assembly (7034-026)7034-026$133.00
#10.5Quadra-Fire Door Latch Assembly (7034-039)7034-039$88.00
#10.6Quadra-Fire Door Glass Assembly with Gasket (SRV7034-007)SRV7034-007$366.00
#10.7Quadra-Fire & Heatilator Glass Retainer (SRV7034-136)SRV7034-136$67.00
#11aQuadra-Fire Mt Vernon Front Face - Matte Black (7005-108MBK)7005-108MBK$959.00
#11bQuadra-Fire Mt Vernon Front Face - Sienna Bronze (7005-108CSB)7005-108CSB$983.00
#12aQuadra-Fire Mt Vernon Left Door - Matte Black (7005-110MBK)7005-110MBK$527.00
#12bQuadra-Fire Mt Vernon Left Door - Sienna Bronze (7005-110CSB)7005-110CSB$635.00
#12dQuadra-Fire MT VERNON Left Door - Porcelain Mahogany (7005-110PMH)7005-110PMH$947.00
#13aQuadra-Fire Mt Vernon Ash Lip - Matte Black (7005-111MBK)7005-111MBK$325.00
#13bQuadra-Fire Mt Vernon-AE Ash Lip - Sienna Bronze (7005-111CSB)7005-111CSB$407.00
#13dQuadra-Fire Ash Lip (7005-111PMH)7005-111PMH$560.00
#14aQuadra-Fire Mt Vernon Right Door - Matte Black (7005-109MBK)7005-109MBK$431.00
#14bQuadra-Fire Mt Vernon Right Door - Sienna Bronze (7005-109CSB)7005-109CSB$635.00
#14dQuadra-Fire MT VERNON Right Door - Porcelain Mahogany (7005-109PMH)7005-109PMH$971.00
#15Quadra-Fire & Heatilator Ash Pan Door (SRV7034-133)SRV7034-133$195.00
#16Quadra-Fire & Heatilator Ash Pan Assembly (SRV7034-069)SRV7034-069$252.00
#17Heatilator & Quadra-Fire Ash Door Gasket (SRV7034-178)SRV7034-178$65.00
#18Heatilator & Quadra-Fire Door Rope Gasket (SRV7034-177)SRV7034-177$65.00
#19Quadra-Fire & Heatilator Eco-Choice Magnetic Hopper Lid Switch (SRV7000-375)SRV7000-375$30.00
#2.1aQuadra-Fire Hopper Lid - Matte Black (7034-157MBK)7034-157MBK$552.00
#2.1bQuadra-Fire Hopper Lid - Sienna Bronze (7034-157CSB)7034-157CSB$647.00
#2.1dQuadra-Fire Hopper Lid - Porcelain Mahogany (7034-157PMH)7034-157PMH$840.00
#2.2HHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#2.3aQuadra-Fire MT Vernon-AE Hinge Arm - Right (7034-160)7034-160$13.00
#2.3bQuadra-Fire MT Vernon-AE Hinge Arm - Left (7034-161)7034-161$12.00
#2.4aQuadra-Fire Top - Matte Black (7034-155MBK)7034-155MBK$639.00
#2.4bQuadra-Fire Top - Sienna Bronze (7034-155CSB)7034-155CSB$983.00
#2.4dQuadra-Fire Top - Porcelain Mahogany (7034-155PMH)7034-155PMH$1,022.00
#2.5Quadra-Fire Hinge Pin (SRV7034-159)SRV7034-159$70.00
#2.6Quadra-Fire Hinge Retainer (SRV7034-163)SRV7034-163$44.00
#2.7Quadra-Fire 1/4-20 X 5/8" Screws - Pack of 10 (7000-426/10)7000-426/10$29.00
#20Quadra-Fire & Heatilator Latch Bracket Assembly (SRV7034-049)SRV7034-049$25.00
#21 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#22Quadra-Fire Side Mount - Right (7034-126)7034-126$89.00
#23Quadra-Fire Mt Vernon-AE Shroud - Right (SRV7034-171)SRV7034-171$112.00
#24Quadra-Fire Combustion / Exhaust Blower Motor (SRV7034-033)SRV7034-033$262.00
#25Quadra-Fire Mt. Vernon AE & Edge 60 Convection Blower Gasket (SRV7000-329)SRV7000-329$25.00
#26Quadra-Fire Mt. Vernon AE and Edge 60 Convection Blower (SRV7000-260)SRV7000-260$368.00
#27aQuadra-Fire MT VERNON Detent Pin (7000-376)7000-376$7.00
#27bQuadra-Fire Elbow Catch (7000-393)7000-393$35.00
#28Quadra-Fire Exhaust Transition Assembly (SRV7034-139)SRV7034-139$177.00
#29Heatilator & Quadra-Fire DC Power Supply Assembly (SRV7000-443)SRV7000-443$368.00
#3Quadra-Fire MT Vernon-AE Left Shroud (7034-172)7034-172$100.00
#30Heatilator & Quadra-Fire Control Board Assembly (SRV7000-456)SRV7000-456$969.00
#31Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#32Quadra-Fire MT VERNON-AE Rear Shroud (7034-170)7034-170$105.00
#33Quadra-Fire Mt. Vernon AE & Edge 60 Feed Assembly (SRV7034-004)SRV7034-004$461.00
#33.1Heatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#33.2Quadra-Fire Mt. Vernon AE & Edge 60 Feed Assembly (SRV7034-004)SRV7034-004$461.00
#33.3Heailator & Quadra-Fire Feed Motor Gasket (SRV7034-144)SRV7034-144$17.00
#33.4Quadra-Fire Mt. Vernon AE & Edge 60 Feed Assembly (SRV7034-004)SRV7034-004$461.00
#33.5Quadra-Fire & Heatilator Optical Switch Assembly (SRV7034-038)SRV7034-038$168.00
#33.6Quadra-Fire Edge 60 & MT Vernon-AE Auger Motor (SRV7000-313)SRV7000-313$258.00
#33.7Quadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#34Quadra-Fire Firepot Riser Assembly (SRV7034-002)SRV7034-002$779.00
#34.1Heatilator & Quadra-Fire Thermocouple Kit (SRV7034-247)SRV7034-247$157.00
#34.11Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Bottom (SRV7034-153)SRV7034-153$124.00
#34.2Quadra-Fire & Heatilator Eco-Choice Half Clip Thermocouple Holder (7000-321)7000-321$6.00
#34.3Heatilator & Quadra-Fire Thermocouple Cover (SRV7034-186)SRV7034-186$8.00
#34.4Heatilator & Quadra-Fire Firepot Assembly (SRV7034-072B)SRV7034-072B$202.00
#34.5Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Gasket (SRV7034-190)SRV7034-190$13.00
#34.6Heatilator & Quadra-Fire Auto Clean Link Arm (7034-176)7034-176$14.00
#34.7Heatilator & Quadra-Fire Auto Clean Plow Weldment (SRV7034-024)SRV7034-024$45.00
#34.8Heatilator & Quadra-Fire Auto Clean Rail (SRV7034-152)SRV7034-152$49.00
#34.9Quadra-Fire & Heatilator Eco-Choice Burn Pot Springs - 4 Pack (7000-513/4)7000-513/4$14.00
#35Quadra-Fire Auto-Clean Motor/Arm Assembly (SRV7034-020)SRV7034-020$674.00
#35.1Quadra-Fire MT Vernon-AE Auto-Clean Lever (7034-158)7034-158$45.00
#35.2Quadra-Fire Mt Vernon AE & Edge 60 Micro Switch (SRV7000-327)SRV7000-327$14.00
#35.3Heatilator & Quadra-Fire Auto-Clean Gear Motor - 12 Volt (SRV7000-502)SRV7000-502$147.00
#35.4Quadra-Fire Auto Clean Motor Grommet (7034-188)7034-188$10.00
#35.5Quadra-Fire Mt. Vernon AE and Edge 60 Auto Clean Cam (SRV7034-187)SRV7034-187$40.00
#35.6Quadra-Fire Auto Clean Bearing (7000-333)7000-333$13.00
#35.7Heatilator & Quadra-Fire Auto Clean Gasket (SRV7034-165)SRV7034-165$14.00
#4Heatilator & Quadra-Fire Male Hinge (SRV7034-138)SRV7034-138$48.00
#5aQuadra-Fire Side - Matte Black (7005-107MBK)7005-107MBK$946.00
#5bQuadra-Fire Interchangeable Side - Sienna Bronze (7005-107CSB)7005-107CSB$1,199.00
#5dQuadra-Fire MT Vernon Side Plate - Porcelain Mahogany (7005-107PMH)7005-107PMH$1,413.00
#6Quadra-Fire Side Mount - Left (7034-128)7034-128$109.00
#7Heatilator & Quadra-Fire Baffle - Cast Iron (SRV7034-263)SRV7034-263$281.00
#8Heatilator & Quadra-Fire Baffle Latch (SRV7034-149)SRV7034-149$15.00
#9Heatilator & Quadra-Fire Intake Shield (SRV7034-224)SRV7034-224$12.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire Glass Gasket - 10 Feet (7000-377/10)7000-377/10$48.00
#N/SQuadra-Fire Mt Vernon AE Ash Pan Roller Catch - Pack of 2 (SRV7000-494)SRV7000-494$38.00
#N/SHeatilator Eco-Choice & Quadra-Fire Twin Ball Catch & Striker (SRV7000-532)SRV7000-532$97.00
#N/SQuadra-Fire Mt. Vernon AE & Edge 60 Combustion Blower Housing Gasket (SRV7000-332)SRV7000-332$24.00
#N/SQuadra-Fire 15 Amp Slow IEC Glass Fuses - 10 Pack (7000-491/10)7000-491/10$41.00
#N/SQuadra-Fire Bottom Auto-Clean Assembly (7034-021)7034-021$210.00
#N/SQuadra-Fire Firepot Riser Clamp Assembly (7034-012)7034-012$114.00
#N/SQuadra-Fire Control Board Bracket (7034-212)7034-212$67.00
#N/SQuadra-Fire Door Switch Bracket (7034-215)7034-215$64.00
#N/SQuadra-Fire MT Vernon-AE Hopper Switch Bracket (7034-216)7034-216$9.00
#N/SQuadra-Fire Snap Disc Bracket (7034-150)7034-150$8.00
#N/SQuadra-Fire Vacuum Switch Bracket (7034-211)7034-211$10.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SHeat N Glo & Quadra-Fire Leveling Assembly (SRV7000-000)SRV7000-000$22.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Touch Up Paint - Porcelain Mahogany (855-1450)855-1450$30.00
#N/SQuadra-Fire Touch Up Paint - Sienna Bronze (TOUCHUP-CSB)TOUCHUP-CSB$26.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire & Heatilator Eco-Choice Conductor Thermostat Wire (SRV7000-409)SRV7000-409$57.00
#N/SHeatilator & Quadra-Fire AE/CE Wall Control (SRV7000-549)SRV7000-549$399.00
#N/SHeatilator & Quadra-Fire Face Plate (7034-124)7034-124$275.00
#N/S Heatilator & Quadra-Fire Fuel Level Sensor (SRV7000-523)SRV7000-523$168.00
#N/SQuadra-Fire Exhaust Gasket (SRV7034-109)SRV7034-109$14.00
#N/SQuadra-Fire Extruded Gasket - 10 Feet (7000-320/10)7000-320/10$45.00
#N/SQuadra-Fire Mt Vernon AE Hopper Gasket - Front / Back (SRV7034-236)SRV7034-236$69.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (844-5750)844-5750$25.00
#N/SQuadra-Fire Castile & MT Vernon Rivets - 25 Pack (25272/25)25272/25$32.00
#N/SQuadra-Fire & Heatilator Eco-Choice Ring Mount Thermocouple (SRV7000-381)SRV7000-381$106.00
#N/SQuadra-Fire Sienna Bronze / Espresso Paint (PAINT1-CSB/CES)PAINT1-CSB/CES$40.00
#N/SQuadra-Fire Willow/Tuscan Olive Paint - 12oz (PAINT1-CWL/CTO)PAINT1-CWL/CTO$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Vacuum Hose (SRV7000-373)SRV7000-373$57.00
#N/SPelPro & Quadra-Fire Plastic Wire Clip - 10 Pack (7000-400/10)7000-400/10$12.00
#N/SQuadra-Fire & Heatilator Wire Harness (SRV7034-191)SRV7034-191$97.00
#N/SHeatilator & Quadra-Fire Battery Backup Wire Harness (SRV7034-202)SRV7034-202$46.00
#N/SHeatilator & Quadra-Fire Convection Blower Wire Harness (SRV7034-219)SRV7034-219$37.00
#N/SQuadra-Fire & Heatilator Door/Hopper Wire Harness (SRV7034-192)SRV7034-192$62.00
#N/SQuadra-Fire & Heatilator Wire Harness Power Out AC (SRV7034-220)SRV7034-220$19.00
#N/SHeatilator & Quadra-Fire DC Power Supply Wire Harness (SRV7034-221)SRV7034-221$42.00
#N/SQuadra-Fire Mt Vernon Insert-AE Power Receptacle Wire Harness (SRV7034-233)SRV7034-233$53.00
#N/SHeatilator & Quadra-Fire Snap Disc Wire Harness (SRV7034-193)SRV7034-193$19.00
#N/SQuadra-Fire Mt Vernon Insert-AE Thermostat Wire Harness (SRV7034-200)SRV7034-200$60.00
#N/SQuadra-Fire 12 Volt Power Cord (12VCORD-AE)12VCORD-AE$57.00
#N/SQuadra-Fire & Eco-Choice Top Vent Offset Collar (812-3570)812-3570$169.00
#N/SQuadra-Fire & Eco-Choice Pellet Stove 3" Damper (PEL-DAMP3)PEL-DAMP3$255.00
#N/SQuadra-Fire & Heatilator 4" Damper (PEL-DAMP4)PEL-DAMP4$455.00
#N/SQuadra-Fire Log Set (LOGS-60-AE-B)LOGS-60-AE-B$249.00
#N/SQuadra-Fire & Eco-Choice Outside Air Kit (OAK-3)OAK-3$149.00
#N/SQuadra-Fire Vertically Centering Adapter Kit (TPVNT-3)TPVNT-3$139.00
#N/SQuadra-Fire 3"- 4" Offset Vent Adapter (811-0720)811-0720$169.00
#N/SQuadra-Fire Rear Vent Adapter W / Cleanout (811-0620)811-0620$229.00
#N/SQuadra-Fire Warming Shelves With Brackets (844-9780)844-9780$260.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Button Head (32328/20)32328/20$32.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire 1/4-20 X 3/8" Screws - 24 Pack (7000-401/24)7000-401/24$23.00
#N/SQuadra-Fire 1/4-20 X 5/8" Screws - Pack of 24 (7000-398/24)7000-398/24$20.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
