Quadrafire 21M-ACC Wood Parts Diagram

Quadrafire 21M-ACC Wood Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire 21M-ACC Wood. This Wood stove has 79 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Convection Air Channel, Heatilator & Quadra-Fire Cast Iron Flue Collar, Quadra-Fire 21M-ACC Side Panel Assembly - Left, Quadra-Fire Complete Brick Assembly, and HHT Single Brick. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 79 replacement parts available.

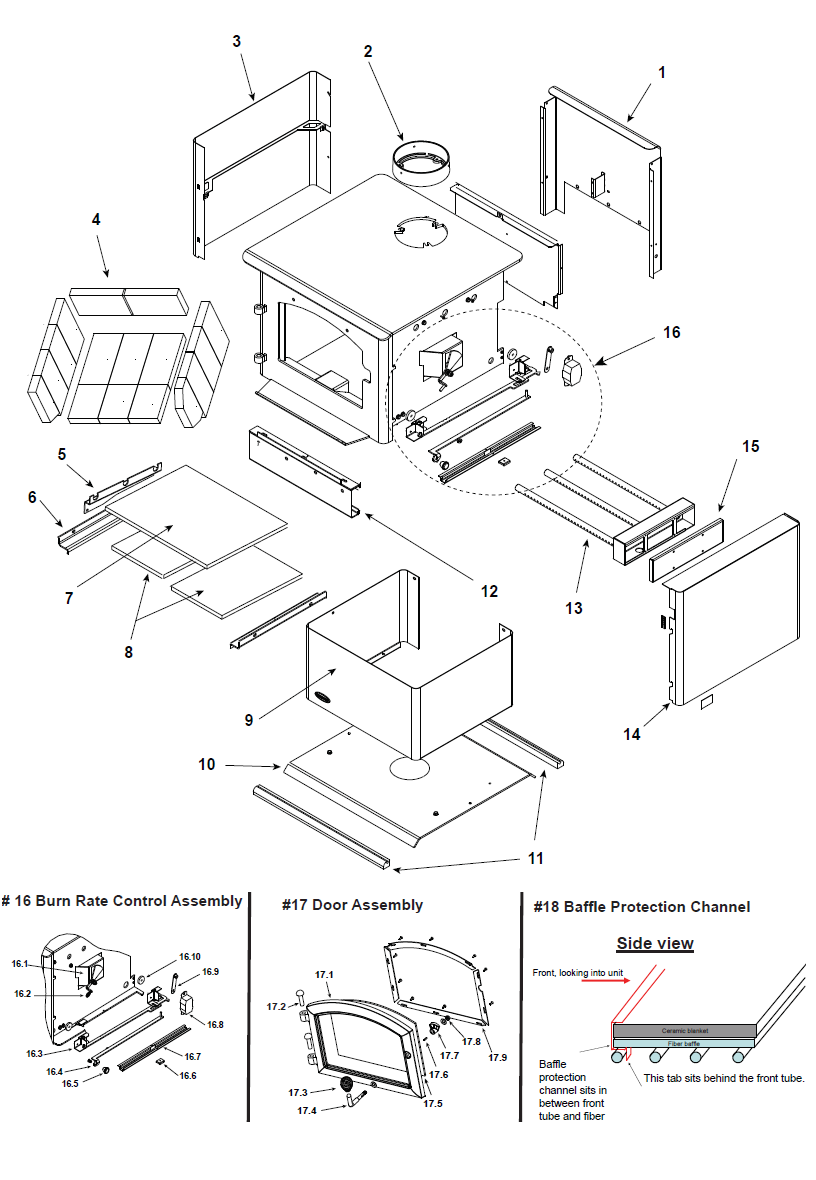

Quadrafire 21M-ACC Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire Convection Air Channel (SRV7039-107)SRV7039-107$275.00
#10Quadra-Fire Pedestal Base (SRV7033-163)SRV7033-163$311.00
#12Quadra-Fire Rear Air Channel Assembly (SRV7039-001)SRV7039-001$299.00
#13Quadra-Fire Manifold Tube Channel Assembly (SRV7039-004)SRV7039-004$292.00
#14Quadra-Fire 21M-ACC Side Panel Assembly - Right (SRV7039-002)SRV7039-002$287.00
#15Quadra-Fire Top Tube Channel Access Cover (SRV7039-114)SRV7039-114$227.00
#16.1Quadra-Fire Burn Rate Control Assembly (SRV7039-016)SRV7039-016$172.00
#16.10HHT Air Timer Door Gasket (7033-282)7033-282$6.00
#16.2AHeat N Glo & Quadra-Fire 1/4" Nickel Spring Handle (SRV250-8340)SRV250-8340$45.00
#16.2BHeat N Glo & Quadra-Fire 1/4" Gold Spring Handle Set (832-0630)832-0630$42.00
#16.2CHeat N Glo, Heatilator & Quadra-Fire Spring Handle - Black (SRV7000-614)SRV7000-614$76.00
#16.3Quadra-Fire Timer Air Control Assembly (SRV7039-015)SRV7039-015$215.00
#16.4Quadra-Fire 2100 Millennium ACC Rear Air Control Arm Assembly (SRV7039-006)SRV7039-006$121.00
#16.5Quadra-Fire Start Up Control Knob (SRV7000-343)SRV7000-343$23.00
#16.6Heat N Glo, Heatilator, & Quadra-Fire Air Control Latch Magnet (SRV229-0631)SRV229-0631$12.00
#16.7Quadra-Fire Air Control Rod Guide (SRV7033-210)SRV7033-210$62.00
#16.8HHT Timer Assembly (SRV480-1940)SRV480-1940$128.00
#16.9Quadra-Fire Timer Arm Assembly (SRV7033-034)SRV7033-034$39.00
#17.1Quadra-Fire 21M-ACC Black Door Assembly (SRV7039-008)SRV7039-008$576.00
#17.2AQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (832-0250)832-0250$71.00
#17.2BHeatilator & Quadra-Fire Nickel Hinge Pin - 1/2" (SRV430-5320)SRV430-5320$35.00
#17.2CHeatilator & Quadra-Fire 1/2" Black Hinge Pins - 2 Pack (7000-606/2)7000-606/2$47.00
#17.3AQuadra-Fire, Heatilator & Heat N Glo 1/2" Nickel Spring Handle (SRV250-8330)SRV250-8330$57.00
#17.3BHHT 1/2" Gold Spring Door Handle (832-0620)832-0620$38.00
#17.3C Heat N Glo, Majestic & Quadra-Fire Spring Door Handle - Black (SRV7000-613)SRV7000-613$77.00
#17.4Heatilator Eco-Choice & Quadra-Fire Formed Door Handle (SRV430-1131)SRV430-1131$40.00
#17.5Quadra-Fire & Heat N Glo Door Glass Assembly with Gasket (SRV7000-013)SRV7000-013$178.00
#17.6HHT Door Cam Latch Key - 5/8" (SRV430-1151)SRV430-1151$11.00
#17.7HHT Door Cam Latch (SRV430-1141)SRV430-1141$19.00
#17.9Quadra-Fire Glass Frame Set (GL-FRM-21M)GL-FRM-21M$75.00
#18Quadra-Fire Baffle Protection Channel (SRV7039-144)SRV7039-144$89.00
#2Heatilator & Quadra-Fire Cast Iron Flue Collar (SRV7000-302)SRV7000-302$113.00
#3Quadra-Fire 21M-ACC Side Panel Assembly - Left (SRV7039-003)SRV7039-003$299.00
#4Quadra-Fire Complete Brick Assembly (SRV7039-007)SRV7039-007$251.00
#5Quadra-Fire Tube Support Rack (SRV7039-108)SRV7039-108$179.00
#6Quadra-Fire Brick Retainer (SRV7033-149)SRV7033-149$39.00
#7HHT Ceramic Blanket - 1/2" Thick (832-3390)832-3390$82.00
#8Quadra-Fire Fiberboard Baffle - Set of 2 (SRV7039-111)SRV7039-111$101.00
#9Quadra-Fire Pedestal Riser (SRV7033-207)SRV7033-207$227.00
#N/SQuadra-Fire Manifold Tube Gasket (4 Pack) (7038-168/4)7038-168/4$40.00
#N/SHeatilator & Quadra-Fire Nickel Hinge Pin - 1/2" (SRV430-5320)SRV430-5320$35.00
#N/SQuadra-Fire Door Upgrade Kit - Satin Nickel (UK-DRNL)UK-DRNL$99.00
#N/SHHT Outside Air Shield (SRV33271)SRV33271$43.00
#N/SHeatilator Eco-Choice & Quadra-Fire Outside Air Collar Assembly (SRV7033-039)SRV7033-039$12.00
#N/SHeatilator & Quadra-Fire Outside Air Kit (OAK-ACC)OAK-ACC$69.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SQuadra-Fire Wire Harness (7033-262)7033-262$23.00
#N/SHeatilator, Quadra-Fire, & Vermont Castings Convection Fan Snap Disc #1 (SRV230-0470)SRV230-0470$37.00
#N/SQuadra-Fire, Heatilator & Heat N Glo 1/2" Nickel Spring Handle (SRV250-8330)SRV250-8330$57.00
#N/SHeat N Glo & Quadra-Fire 1/4" Nickel Spring Handle (SRV250-8340)SRV250-8340$45.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SHeatilator Eco-Choice & Quadra-Fire Blower Kit ACC (BK-ACC)BK-ACC$469.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
#N/SHHT 3/8 SAE Washer Set - 3 Pack (832-0990)832-0990$23.00
#N/SQuadra-Fire Component Pack (7039-011)7039-011$79.00
#N/SHHT Single Brick - Set of 6 (832-3040)832-3040$98.00
#N/SHHT Single Brick (832-0550)832-0550$30.00
#N/SQuadra-Fire Component Pack Assembly (SRV436-5350)SRV436-5350$83.00
#N/SHHT Glass Gasket Tape - 3/4" x 5' (832-0460)832-0460$20.00
#N/SHHT Door Rope Gasket - 3/4" x 7' (832-1680)832-1680$49.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Trimount Plugs (229-0880/24)229-0880/24$36.00
#N/SQuadra-Fire & Heat N Glo Door Handle Assembly (832-0540)832-0540$89.00
#N/SQuadra-Fire Snap Disc Bracket Assembly (SRV7033-036)SRV7033-036$275.00
#N/SQuadra-Fire Outside Air Cover Plate Assembly (SRV7033-041)SRV7033-041$76.00
#N/SQuadra-Fire Burn Rate Label (SRV7033-160)SRV7033-160$15.00
#N/SQuadra-Fire Start-Up Air Control Label (SRV7033-166)SRV7033-166$19.00
#N/SQuadra-Fire Rear Air Door Assembly (SRV7037-013)SRV7037-013$61.00
#N/SHeatilator Eco-Choice & Quadra-Fire Blower Control Box (SRV7000-194)SRV7000-194$178.00
#N/SHHT Convection Blower (812-4900)812-4900$245.00
#N/SQuadra-Fire Component Pack (7033-051)7033-051$19.00
