Quadrafire 31M-ACC-Wood Parts Diagram

Quadrafire 31M-ACC-Wood Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire 31M-ACC-Wood. This Wood stove has 93 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Convection Air Channel with Bracket, Quadra-Fire Air Supply Back, Heatilator & Quadra-Fire Cast Iron Flue Collar, Quadra-Fire 31M-ACC Series Left Side Panel Assembly, and Quadra-Fire Rear Channel Assembly. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 93 replacement parts available.

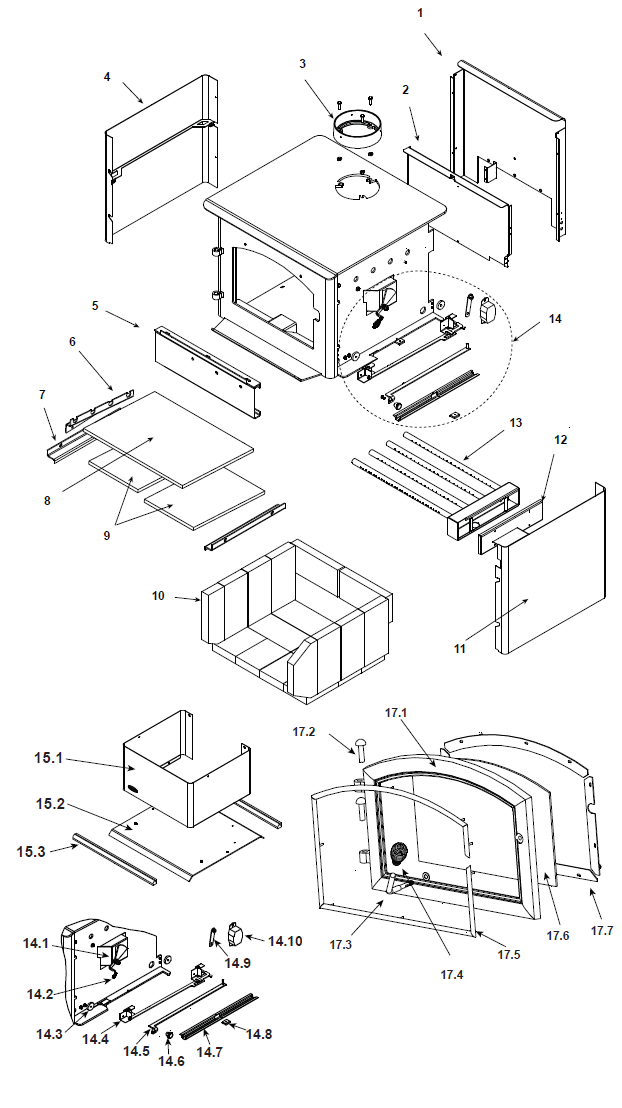

Quadrafire 31M-ACC-Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire Convection Air Channel with Bracket (SRV7033-144)SRV7033-144$263.00
#10Quadra-Fire Complete Brick Assembly (SRV7033-006)SRV7033-006$318.00
#11Quadra-Fire 31M-ACC Series Side Panel Assembly - Right (SRV7033-017)SRV7033-017$161.00
#12Quadra-Fire Tube Channel Top Access Cover (SRV7033-237)SRV7033-237$141.00
#13Quadra-Fire Tube Channel Assembly (SRV7033-023)SRV7033-023$326.00
#14.1Quadra-Fire Burn Rate Control Assembly (SRV7033-033)SRV7033-033$136.00
#14.10HHT Timer Assembly (SRV480-1940)SRV480-1940$128.00
#14.2AHeat N Glo & Quadra-Fire 1/4" Gold Spring Handle Set (832-0630)832-0630$42.00
#14.2BHeat N Glo & Quadra-Fire 1/4" Nickel Spring Handle (SRV250-8340)SRV250-8340$45.00
#14.2CHeat N Glo, Heatilator & Quadra-Fire Spring Handle - Black (SRV7000-614)SRV7000-614$76.00
#14.3HHT Air Timer Door Gasket (7033-282)7033-282$6.00
#14.4Quadra-Fire Timer Air Control Assembly (SRV7033-052)SRV7033-052$236.00
#14.5Quadra-Fire Rear Air Control Arm Assembly (SRV7033-035)SRV7033-035$60.00
#14.6Quadra-Fire Start Up Control Knob (SRV7000-343)SRV7000-343$23.00
#14.7Quadra-Fire Air Control Rod Guide (SRV7033-210)SRV7033-210$62.00
#14.8Heat N Glo, Heatilator, & Quadra-Fire Air Control Latch Magnet (SRV229-0631)SRV229-0631$12.00
#14.9Quadra-Fire Timer Arm Assembly (SRV7033-034)SRV7033-034$39.00
#15.1Quadra-Fire Pedestal Riser (SRV7033-207)SRV7033-207$227.00
#15.2Quadra-Fire Pedestal Base (SRV7033-163)SRV7033-163$311.00
#16Quadra-Fire Baffle Protection Channel (SRV7033-298)SRV7033-298$138.00
#17.1AQuadra-Fire Arched Door with Fiber Handle - Classic Black (DR-31/43BK-FH)DR-31/43BK-FH$469.00
#17.1BQuadra-Fire Arched Door Classic Black - Satin Nickel Trim (DR-31/43NL-FH)DR-31/43NL-FH$649.00
#17.2AQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (832-0250)832-0250$71.00
#17.2BHeatilator & Quadra-Fire Nickel Hinge Pin - 1/2" (SRV430-5320)SRV430-5320$35.00
#17.2CHeatilator & Quadra-Fire 1/2" Black Hinge Pins - 2 Pack (7000-606/2)7000-606/2$47.00
#17.3Quadra-Fire & Heat N Glo Door Handle Assembly (832-0540)832-0540$89.00
#17.4AHHT 1/2" Gold Spring Door Handle (832-0620)832-0620$38.00
#17.4BQuadra-Fire, Heatilator & Heat N Glo 1/2" Nickel Spring Handle (SRV250-8330)SRV250-8330$57.00
#17.4C Heat N Glo, Majestic & Quadra-Fire Spring Door Handle - Black (SRV7000-613)SRV7000-613$77.00
#17.6Heat N Glo & Quadra-Fire Door Glass with Gasket (SRV7000-012)SRV7000-012$235.00
#17.7Quadra-Fire Glass Frame Set (832-0350)832-0350$90.00
#2Quadra-Fire Air Supply Back (SRV7033-134)SRV7033-134$191.00
#3Heatilator & Quadra-Fire Cast Iron Flue Collar (SRV7000-302)SRV7000-302$113.00
#4Quadra-Fire 31M-ACC Series Left Side Panel Assembly (SRV7033-019)SRV7033-019$167.00
#5Quadra-Fire Rear Channel Assembly (SRV7033-002)SRV7033-002$198.00
#6Quadra-Fire Tube Support Rack (SRV7033-148)SRV7033-148$54.00
#7Quadra-Fire Brick Retainer (SRV7033-149)SRV7033-149$39.00
#8HHT Ceramic Blanket - 1/2" Thick (832-3390)832-3390$82.00
#9Heatilator Eco-Choice & Quadra-Fire Baffles - Set of 2 (SRV7033-209)SRV7033-209$125.00
#N/SHeatilator, Quadra-Fire, & Vermont Castings Convection Fan Snap Disc #1 (SRV230-0470)SRV230-0470$37.00
#N/SQuadra-Fire Outside Air Cover Plate Assembly (SRV7033-041)SRV7033-041$76.00
#N/SQuadra-Fire Snap Disc Bracket Assembly (SRV7033-036)SRV7033-036$275.00
#N/SQuadra-Fire Component Pack (7033-051)7033-051$19.00
#N/SHeatilator Eco-Choice & Quadra-Fire Blower Control Box (SRV7000-194)SRV7000-194$178.00
#N/SHeatilator Eco-Choice & Quadra-Fire Blower Kit ACC (BK-ACC)BK-ACC$469.00
#N/SQuadra-Fire Manifold Tube Gasket (4 Pack) (7038-168/4)7038-168/4$40.00
#N/SQuadra-Fire Door Upgrade Kit - Satin Nickel (UK-DRNL)UK-DRNL$99.00
#N/SQuadra-Fire & Heat N Glo Door Handle Assembly (832-0540)832-0540$89.00
#N/SQuadra-Fire Trimount Plugs (229-0880/24)229-0880/24$36.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Component Pack - Nickel Trim (7033-029)7033-029$79.00
#N/SQuadra-Fire Component Pack - Black & Gold Trim (7033-027)7033-027$79.00
#N/SQuadra-Fire Wire Harness (7033-262)7033-262$23.00
#N/SHeatilator & Quadra-Fire Outside Air Kit (OAK-ACC)OAK-ACC$69.00
#N/SHeatilator Eco-Choice & Quadra-Fire Outside Air Collar Assembly (SRV7033-039)SRV7033-039$12.00
#N/SHHT Outside Air Shield (SRV33271)SRV33271$43.00
#N/SQuadra-Fire, Heatilator & Heat N Glo 1/2" Nickel Spring Handle (SRV250-8330)SRV250-8330$57.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SQuadra-Fire Button Head (32328/20)32328/20$32.00
#N/SQuadra-Fire Keps Lock Nuts (226-0050/40)226-0050/40$10.00
#N/SQuadra-Fire & Heat N Glo Keps Lock Nuts (226-0060/40)226-0060/40$23.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
#N/SQuadra-Fire Burn Rate Label (SRV7033-160)SRV7033-160$15.00
#N/SHHT Single Brick - Set of 6 (832-3040)832-3040$98.00
#N/SHHT Single Brick (832-0550)832-0550$30.00
#N/SHHT Door Cam Latch (SRV430-1141)SRV430-1141$19.00
#N/SHHT Door Cam Latch Key - 5/8" (SRV430-1151)SRV430-1151$11.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SHHT 3/8 SAE Washer Set - 3 Pack (832-0990)832-0990$23.00
#N/SHeatilator Eco-Choice & Quadra-Fire Formed Door Handle (SRV430-1131)SRV430-1131$40.00
#N/SQuadra-Fire Component Pack Assembly (SRV436-5350)SRV436-5350$83.00
#N/SQuadra-Fire Component Pack Assembly (436-5360)436-5360$94.00
#N/SHHT Glass Gasket Tape - 3/4" x 5' (832-0460)832-0460$20.00
#N/SHHT Door Rope Gasket - 3/4" x 7' (832-1680)832-1680$49.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Spring Handle - Black (SRV7000-614)SRV7000-614$76.00
#N/SQuadra-Fire Start-Up Air Control Label (SRV7033-166)SRV7033-166$19.00
#N/SHHT Convection Blower (812-4900)812-4900$245.00
#N/SQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (832-0250)832-0250$71.00
#N/SHeatilator & Quadra-Fire Nickel Hinge Pin - 1/2" (SRV430-5320)SRV430-5320$35.00
#N/SHeatilator & Quadra-Fire 1/2" Black Hinge Pins - 2 Pack (7000-606/2)7000-606/2$47.00
#N/SHHT 1/2" Gold Spring Door Handle (832-0620)832-0620$38.00
#N/SQuadra-Fire Rear Air Door Assembly (SRV7033-024)SRV7033-024$70.00
#N/S Heat N Glo, Majestic & Quadra-Fire Spring Door Handle - Black (SRV7000-613)SRV7000-613$77.00
#N/SHeat N Glo & Quadra-Fire 1/4" Gold Spring Handle Set (832-0630)832-0630$42.00
#N/SHeat N Glo & Quadra-Fire 1/4" Nickel Spring Handle (SRV250-8340)SRV250-8340$45.00
