Quadrafire 43M-ACC Wood Parts Diagram

Quadrafire 43M-ACC Wood Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire 43M-ACC Wood. This Wood stove has 82 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Convection Air Channel with Bracket, Quadra-Fire Air Supply Back, Heatilator & Quadra-Fire Cast Iron Flue Collar, Quadra-Fire 43M-ACC Side Panel Assembly - Left, and Quadra-Fire Rear Channel Assembly. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 82 replacement parts available.

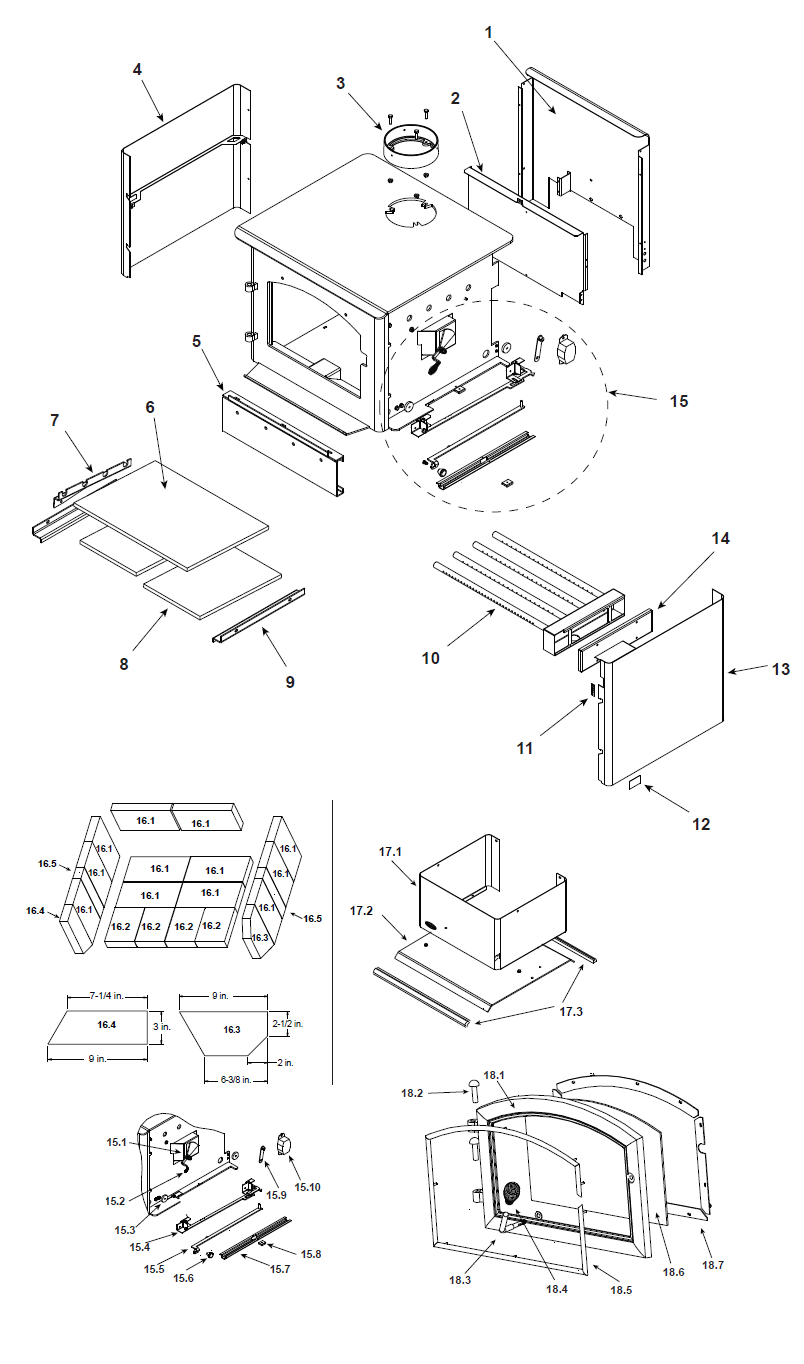

Quadrafire 43M-ACC Wood replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire Convection Air Channel with Bracket (SRV7033-144)SRV7033-144$263.00
#10Quadra-Fire Tube Channel Assembly (SRV7033-023)SRV7033-023$326.00
#11Quadra-Fire Burn Rate Label (SRV7033-160)SRV7033-160$15.00
#12Quadra-Fire Start-Up Air Control Label (SRV7033-166)SRV7033-166$19.00
#13Quadra-Fire 43M - ACC Side Panel Assembly - Right (SRV7037-006)SRV7037-006$222.00
#14Quadra-Fire Tube Channel Top Access Cover (SRV7033-237)SRV7033-237$141.00
#15.1Quadra-Fire Burn Rate Control Assembly (SRV7037-004)SRV7037-004$174.00
#15.10HHT Timer Assembly (SRV480-1940)SRV480-1940$128.00
#15.2AHeat N Glo & Quadra-Fire 1/4" Gold Spring Handle Set (832-0630)832-0630$42.00
#15.2BHeat N Glo & Quadra-Fire 1/4" Nickel Spring Handle (SRV250-8340)SRV250-8340$45.00
#15.2CHeat N Glo, Heatilator & Quadra-Fire Spring Handle - Black (SRV7000-614)SRV7000-614$76.00
#15.3HHT Air Timer Door Gasket (7033-282)7033-282$6.00
#15.4Quadra-Fire Timer Air Control Assembly (SRV7037-018)SRV7037-018$224.00
#15.5Quadra-Fire Rear Air Control Arm Assembly (SRV7037-005)SRV7037-005$48.00
#15.6Quadra-Fire Start Up Control Knob (SRV7000-343)SRV7000-343$23.00
#15.7Quadra-Fire Air Control Rod Guide (SRV7033-210)SRV7033-210$62.00
#15.8Heat N Glo, Heatilator, & Quadra-Fire Air Control Latch Magnet (SRV229-0631)SRV229-0631$12.00
#15.9Quadra-Fire Timer Arm Assembly (SRV7033-034)SRV7033-034$39.00
#16Quadra-Fire Brick Assembly - Complete Set (SRV7037-003)SRV7037-003$266.00
#17.1Quadra-Fire Pedestal Riser (SRV7033-207)SRV7033-207$227.00
#17.2Quadra-Fire Pedestal Base (SRV7033-163)SRV7033-163$311.00
#18.1AQuadra-Fire Arched Door with Fiber Handle - Classic Black (DR-31/43BK-FH)DR-31/43BK-FH$469.00
#18.1BQuadra-Fire Arched Door Classic Black - Satin Nickel Trim (DR-31/43NL-FH)DR-31/43NL-FH$649.00
#18.2AQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (832-0250)832-0250$71.00
#18.2BHeatilator & Quadra-Fire Nickel Hinge Pin - 1/2" (SRV430-5320)SRV430-5320$35.00
#18.2CHeatilator & Quadra-Fire 1/2" Black Hinge Pins - 2 Pack (7000-606/2)7000-606/2$47.00
#18.3Quadra-Fire & Heat N Glo Door Handle Assembly (832-0540)832-0540$89.00
#18.4AHHT 1/2" Gold Spring Door Handle (832-0620)832-0620$38.00
#18.4BQuadra-Fire, Heatilator & Heat N Glo 1/2" Nickel Spring Handle (SRV250-8330)SRV250-8330$57.00
#18.4C Heat N Glo, Majestic & Quadra-Fire Spring Door Handle - Black (SRV7000-613)SRV7000-613$77.00
#18.6Heat N Glo & Quadra-Fire Door Glass with Gasket (SRV7000-012)SRV7000-012$235.00
#18.7Quadra-Fire Glass Frame Set (832-0350)832-0350$90.00
#2Quadra-Fire Air Supply Back (SRV7033-134)SRV7033-134$191.00
#3Heatilator & Quadra-Fire Cast Iron Flue Collar (SRV7000-302)SRV7000-302$113.00
#4Quadra-Fire 43M-ACC Side Panel Assembly - Left (SRV7037-007)SRV7037-007$172.00
#5Quadra-Fire Rear Channel Assembly (SRV7033-002)SRV7033-002$198.00
#6HHT Ceramic Blanket - 1/2" Thick (832-3390)832-3390$82.00
#7Quadra-Fire Tube Support Rack (SRV7033-148)SRV7033-148$54.00
#8Quadra-Fire Fiberboard Baffles - Set of 2 (SRV7037-112)SRV7037-112$121.00
#9Quadra-Fire Brick Retainer (SRV7033-149)SRV7033-149$39.00
#N/SHHT Outside Air Shield (SRV33271)SRV33271$43.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
#N/SHeatilator Eco-Choice & Quadra-Fire Outside Air Collar Assembly (SRV7033-039)SRV7033-039$12.00
#N/SHeatilator & Quadra-Fire Outside Air Kit (OAK-ACC)OAK-ACC$69.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Manifold Tube Gasket (4 Pack) (7038-168/4)7038-168/4$40.00
#N/SHHT Convection Blower (812-4900)812-4900$245.00
#N/SQuadra-Fire Component Pack - Nickel (7037-015)7037-015$79.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SQuadra-Fire Button Head (32328/20)32328/20$32.00
#N/SQuadra-Fire Keps Lock Nuts (226-0050/40)226-0050/40$10.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SQuadra-Fire & Heat N Glo Keps Lock Nuts (226-0060/40)226-0060/40$23.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire Trimount Plugs (229-0880/24)229-0880/24$36.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SHHT 3/8 SAE Washer Set - 3 Pack (832-0990)832-0990$23.00
#N/SQuadra-Fire Component Pack Assembly (SRV436-5350)SRV436-5350$83.00
#N/SQuadra-Fire Rear Air Door Assembly (SRV7037-013)SRV7037-013$61.00
#N/SHHT Single Brick (832-0550)832-0550$30.00
#N/SHHT Single Brick - Set of 6 (832-3040)832-3040$98.00
#N/SHHT Door Cam Latch (SRV430-1141)SRV430-1141$19.00
#N/SHHT Door Cam Latch Key - 5/8" (SRV430-1151)SRV430-1151$11.00
#N/SHeatilator Eco-Choice & Quadra-Fire Formed Door Handle (SRV430-1131)SRV430-1131$40.00
#N/SHHT Glass Gasket Tape - 3/4" x 5' (832-0460)832-0460$20.00
#N/SHHT Door Rope Gasket - 3/4" x 7' (832-1680)832-1680$49.00
#N/SQuadra-Fire Component Pack - Black & Gold (7037-014)7037-014$83.00
#N/SQuadra-Fire Component Pack Assembly (436-5360)436-5360$94.00
#N/SQuadra-Fire Door Upgrade Kit - Satin Nickel (UK-DRNL)UK-DRNL$99.00
#N/SHeatilator Eco-Choice & Quadra-Fire Blower Kit ACC (BK-ACC)BK-ACC$469.00
#N/SHeatilator Eco-Choice & Quadra-Fire Blower Control Box (SRV7000-194)SRV7000-194$178.00
#N/SQuadra-Fire Component Pack (7033-051)7033-051$19.00
#N/SQuadra-Fire Snap Disc Bracket Assembly (SRV7033-036)SRV7033-036$275.00
#N/SHeatilator, Quadra-Fire, & Vermont Castings Convection Fan Snap Disc #1 (SRV230-0470)SRV230-0470$37.00
#N/SQuadra-Fire Wire Harness (7033-262)7033-262$23.00
#N/S(19)Quadra-Fire Baffle Protection Channel (SRV7033-298)SRV7033-298$138.00
