Quadrafire Castile FS-B Pellet Parts Diagram

Quadrafire Castile FS-B Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Castile FS-B Pellet. This Pellet stove has 126 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Castile Hopper Lid Assembly - Black, Quadra-Fire Castile Top - Black, Quadra-Fire Castile Cast Upper Retainer, Quadra-Fire Castile Convection Air Director, and Quadra-Fire Castile Hinge Bracket. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 126 replacement parts available.

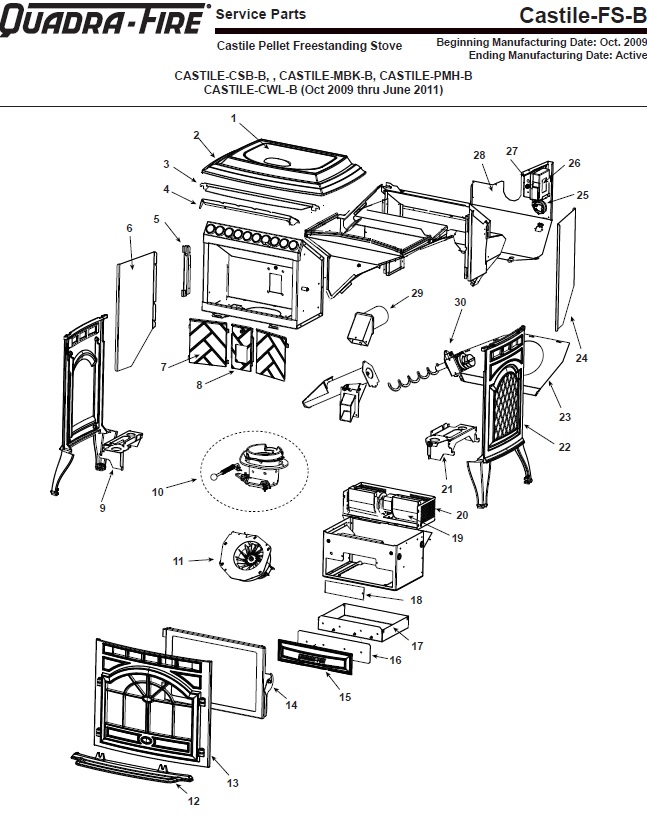

Quadrafire Castile FS-B Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire Castile Hopper Lid Assembly - Black (SRV7021-022MBK)SRV7021-022MBK$407.00
#10Quadra-Fire EZ Clean Firepot Assembly (SRV414-5200)SRV414-5200$336.00
#11Quadra-Fire, PelPro & Heatilator Eco-Choice Exhaust Blower Motor (812-4400)812-4400$153.00
#12Quadra-Fire Castile Ash Catcher - Black (413-0010BK)413-0010BK$294.00
#13Quadra-Fire Castile Series Face - Black (413-0030BK)413-0030BK$589.00
#15Quadra-Fire Castile Ash Drawer Front (SRV7021-138)SRV7021-138$287.00
#16Quadra-Fire Castile Ash Drawer Gasket (SRV7021-139)SRV7021-139$42.00
#17Quadra-Fire Castile Ash Drawer (SRV7021-140)SRV7021-140$215.00
#18Quadra-Fire Castile Igniter Access Plate (SRV413-0380)SRV413-0380$53.00
#19HHT Convection Blower (812-4900)812-4900$245.00
#2Quadra-Fire Castile Top - Black (7021-101MBK)7021-101MBK$587.00
#20Quadra-Fire Castile Convection Blower Shroud (SRV413-0300)SRV413-0300$100.00
#21Quadra-Fire Castile Cast Retainer Assembly - Lower Right (SRV7021-021)SRV7021-021$275.00
#22Quadra-Fire Castile Side - Matte Black (SRV7021-125MBK)SRV7021-125MBK$658.00
#23Quadra-Fire Castile Convection Plenum Back (SRV7021-120)SRV7021-120$172.00
#24Quadra-Fire Castile Outer Skin - Right (SRV7021-118)SRV7021-118$118.00
#25 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#26Quadra-Fire 3 Speed Control Board (SRV7000-704)SRV7000-704$337.00
#27Quadra-Fire Junction Box & Wire Harness (SRV7001-194)SRV7001-194$294.00
#28Quadra-Fire Castile Outer Skin - Back (SRV7021-117)SRV7021-117$311.00
#29Quadra-Fire Castile Exhaust Transition Assembly (SRV7021-003)SRV7021-003$220.00
#3Quadra-Fire Castile Cast Upper Retainer (SRV7021-141)SRV7021-141$131.00
#30Quadra-Fire Feed Assembly (812-4760)812-4760$505.00
#4Quadra-Fire Castile Convection Air Director (SRV7021-123)SRV7021-123$142.00
#5Quadra-Fire Castile Hinge Bracket (SRV7021-115)SRV7021-115$161.00
#6Quadra-Fire Castile Outer Skin - Left (SRV7021-119)SRV7021-119$164.00
#7Quadra-Fire Castile & Santa Fe Side Brick (SRV414-0270)SRV414-0270$128.00
#8Quadra-Fire Castile & SantaFe Cast Brick - Center (SRV414-0260)SRV414-0260$143.00
#9Quadra-Fire Castile Cast Retainer Assembly - Lower Left (SRV7021-018)SRV7021-018$251.00
#N/SHHT Rubber Bumpers - 3 Pack (SRV224-0340)SRV224-0340$14.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire Castile Pull Rod Assembly (SRV7021-005)SRV7021-005$87.00
#N/SQuadra-Fire Ash Dump Control Rod Knob (832-3020)832-3020$78.00
#N/SQuadra-Fire EZ Clean Firepot Linkage Spring (200-2050)200-2050$7.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#N/SQuadra-Fire EZ Clean Firepot Bushing (410-8320)410-8320$7.00
#N/SQuadra-Fire EZ Clean Firepot Floor (414-0290)414-0290$79.00
#N/SQuadra-Fire Oval Firepot Gasket (SRV240-0930)SRV240-0930$19.00
#N/SHHT Lock Nut (226-0090)226-0090$2.50
#N/SQuadra-Fire 1-1/4" Firepot Bolt (225-0120)225-0120$2.50
#N/SQuadra-Fire & Heatilator Eco-Choice 14" Thermocouple (812-4470)812-4470$89.00
#N/SQuadra-Fire Thermocouple Clamp (SRV7001-203)SRV7001-203$81.00
#N/SHHT Combustion / Exhaust Blower Motor Housing Gasket (SRV240-0812)SRV240-0812$10.00
#N/SQuadra-Fire, PelPro & Heatilator Eco-Choice Combustion Blower Gasket - Round (812-4710)812-4710$34.00
#N/SQuadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#N/SQuadra-Fire Castile Door Frame (SRV7021-114)SRV7021-114$189.00
#N/SQuadra-Fire Tadpole Gasket (842-5130)842-5130$38.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SHeat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#N/SQuadra-Fire Door Latch Assembly (SRV7021-006)SRV7021-006$43.00
#N/SQuadra-Fire Santa Fe & Castile Door Glass Assembly (SRV7001-038)SRV7001-038$281.00
#N/SQuadra-Fire Rope Retainer (SRV7001-192)SRV7001-192$19.00
#N/SQuadra-Fire Castile & Santa Fe Glass Gasket Tape (240-0290/10)240-0290/10$47.00
#N/SQuadra-Fire Door Corner Tape (SRV7027-227)SRV7027-227$37.00
#N/SQuadra-Fire Thermostat Term DV Block (SRV230-0690)SRV230-0690$52.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SHeatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#N/SQuadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#N/SQuadra-Fire Feed / Auger System Nylon Bearing (SRV410-0552)SRV410-0552$12.00
#N/SQuadra-Fire Auger Motor Gasket (SRV240-0731)SRV240-0731$4.00
#N/SHeatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#N/SQuadra-Fire Auger Set Screws - 25 Pack (225-0550/25)225-0550/25$35.00
#N/SQuadra-Fire Castile & Edge 60 Ash Drawer Assembly (SRV7021-020)SRV7021-020$395.00
#N/SQuadra-Fire Baffle Assembly (SRV7001-034)SRV7001-034$194.00
#N/SQuadra-Fire Snap Disc Bracket (SRV7005-253)SRV7005-253$8.00
#N/SQuadra-Fire CASTILE-FS-B Component Pack Assembly - Black (SRV7021-011)SRV7021-011$314.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)SRV230-0810$38.00
#N/SHeat N Glo & Quadra-Fire Leveling Assembly (SRV7000-000)SRV7000-000$22.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire Bottom Air Wash Deflector (SRV413-0680)SRV413-0680$67.00
#N/SQuadra-Fire Feed Adjustment Plate (SRV7001-182)SRV7001-182$76.00
#N/SQuadra-Fire & Heatilator Eco-Choice Junction Box 7 Amp Fuses - 10 Pack (812-0380/10)812-0380/10$21.00
#N/SQuadra-Fire .8 Amp Fuse - Control Box - 10 Pack (812-3780/10)812-3780/10$40.00
#N/SQuadra-Fire Castile Hopper Lid Gasket (SRV7021-147)SRV7021-147$85.00
#N/SQuadra-Fire Male Door Hinge (SRV450-2810)SRV450-2810$44.00
#N/SQuadra-Fire Castile Hopper Lid Switch Assembly (SRV7021-023)SRV7021-023$127.00
#N/SQuadra-Fire & Heatilator Eco-Choice Magnetic Hopper Lid Switch (SRV7000-375)SRV7000-375$30.00
#N/SQuadra-Fire Castile Hopper Top (SRV7021-108)SRV7021-108$191.00
#N/SHHT 5/32" ID Vacuum Hose (SRV240-0450)SRV240-0450$53.00
#N/SQuadra-Fire Log Set (LOGS-30-OE)LOGS-30-OE$309.00
#N/SQuadra-Fire Side Log - Left (7050-144)7050-144$249.00
#N/SQuadra-Fire Side Log - Right (7050-143)7050-143$249.00
#N/SQuadra-Fire Castile Magnet Bracket (SRV7021-129)SRV7021-129$92.00
#N/SQuadra-Fire Castile & Santa Fe Ash Cleanout Plate (SRV7001-186)SRV7001-186$14.00
#N/SQuadra-Fire Pellet Stove Reset Button (SRV7000-040)SRV7000-040$43.00
#N/SQuadra-Fire Castile Scraper Repair Kit (SCRAPER-CSTL)SCRAPER-CSTL$131.00
#N/SQuadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#N/SHeatilator Eco-Choice & Quadra-Fire 110-20 Snap Disc (SRV230-1220)SRV230-1220$28.00
#N/SQuadra-Fire Snap Disc #2 - 250 Degree (SRV7000-268)SRV7000-268$57.00
#N/SQuadra-Fire Hopper Switch Wire Harness (SRV7050-130)SRV7050-130$40.00
#N/SQuadra-Fire & Eco-Choice Top Vent Offset Collar (812-3570)812-3570$169.00
#N/SQuadra-Fire & Eco-Choice Pellet Stove 3" Damper (PEL-DAMP3)PEL-DAMP3$255.00
#N/SQuadra-Fire & Heatilator 4" Damper (PEL-DAMP4)PEL-DAMP4$455.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Kit - Rear Mount (811-0872)811-0872$149.00
#N/SQuadra-Fire Air Intake Channel (SRV413-7040)SRV413-7040$83.00
#N/SQuadra-Fire Outside Air Kit Floor Cover (SRV411-1071)SRV411-1071$47.00
#N/SQuadra-Fire 2" x 3' Aluminum Flex Hose (SRV200-0860)SRV200-0860$48.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Cap Assembly (SRV7001-044)SRV7001-044$46.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Collar Assembly (SRV7001-045)SRV7001-045$71.00
#N/SQuadra-Fire Outside Air Kit Trim Plate (SRV412-7100)SRV412-7100$12.00
#N/SQuadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)841-0960$229.00
#N/SHeatilator Eco-Choice & Quadra-Fire Mechanical Thermostat (812-3760)812-3760$162.00
#N/SHHT Programmable Thermostat with Wire (PROG-STAT)PROG-STAT$247.00
#N/SQuadra-Fire Castile & Santa Fe Vertical Adapter Kit (TPVNT-2)TPVNT-2$133.00
#N/SQuadra-Fire & Heatilator Eco-Choice Top Vertical Adapter and Cleanout (TPVNT-6)TPVNT-6$139.00
#N/SQuadra-Fire Rear Vent Adapter W / Cleanout (811-0620)811-0620$229.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SQuadra-Fire Castile & MT Vernon Rivets - 25 Pack (25272/25)25272/25$32.00
#N/SQuadra-Fire Capped Push Nut - 24 Pack (7000-157/24)7000-157/24$31.00
#N/SQuadra-Fire & Heat N Glo Keps Lock Nuts (226-0060/40)226-0060/40$23.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire Wing Nut - 24 Pack (226-0160/24)226-0160/24$32.00
#N/SQuadra-Fire 1/4" x 1-1/4" Right Iron Rivet - 25 Pack (229-0090/25)229-0090/25$34.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SHeatilator & Quadra-Fire Philips Head Screws - 40 Pack (21799A/40)21799A/40$23.00
#N/SQuadra-Fire 8-32 x 3/4 Pan Head Screws - 24 Pack (229-1100/24)229-1100/24$21.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SQuadra-Fire Thumb Screws (844-5070)844-5070$45.00
