Quadrafire Castile- Gas Parts Diagram

Quadrafire Castile- Gas Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Castile- Gas. This Gas stove has 118 parts mapped in our interactive diagram below. Common replacement parts include Heat N Glo & Quadra-Fire Log Assembly, Heat N Glo & Quadra-Fire Front Log, Heat N Glo & Quadra-Fire Front Left Log, Heat N Glo & Quadra-Fire Rear Log, and Quadra-Fire Ceramic Log Pins - 12 Pack. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 118 replacement parts available.

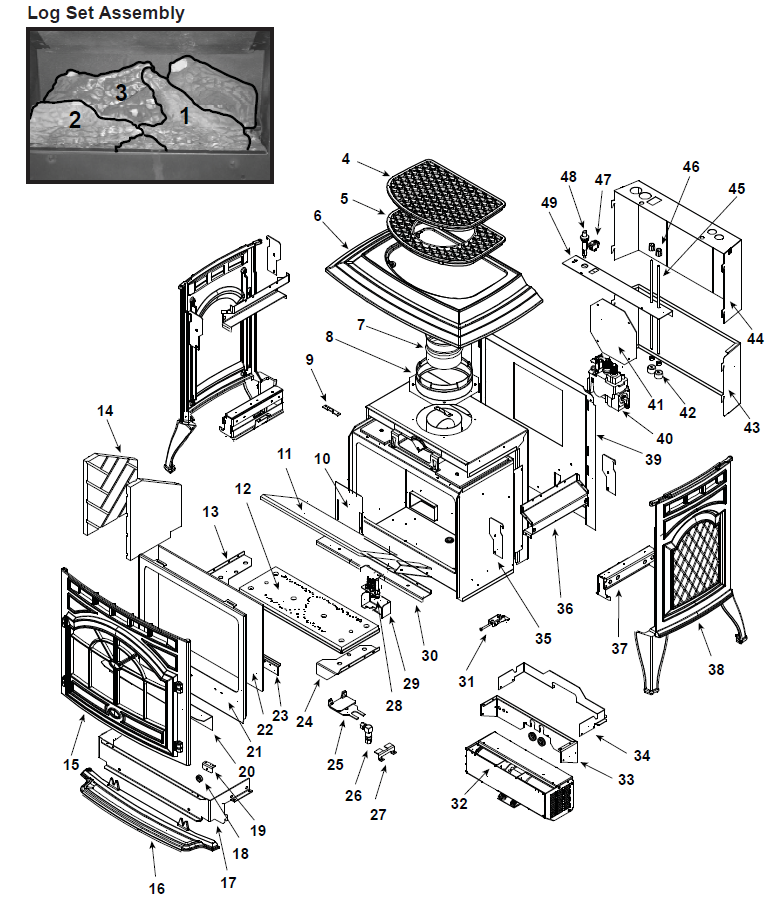

Quadrafire Castile- Gas replacement parts diagram
Part #Part NamePart CodePrice
#1Heat N Glo & Quadra-Fire Front Log (7055-124)7055-124$104.00
#10Heat N Glo & Quadra-Fire Damper Plate (468-0360)468-0360$44.00
#11Quadra-Fire & Heat N Glo Baffle (7010-136A)7010-136A$119.00
#12Heat N Glo & Quadra-Fire Burner Assembly - NG/LP (SRV7010-025)SRV7010-025$654.00
#14Quadra-Fire Castile-Gas & Sapphire-D Refractory Kit (BRICK-T1)BRICK-T1$125.00
#15Quadra-Fire Castile Series Face - Black (413-0030BK)413-0030BK$589.00
#16Quadra-Fire Castile Ash Catcher - Black (413-0010BK)413-0010BK$294.00
#18HHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#2Heat N Glo & Quadra-Fire Front Left Log (7055-125)7055-125$100.00
#21Heat N Glo Tiara I-B Door with Glass Assembly (7010-016)7010-016$349.00
#22Quadra-Fire Door Glass Assembly w/Gasket (7010-017)7010-017$259.00
#23Heat N Glo Tiara I-C Glass Retainer (7010-121)7010-121$7.00
#26HHT Bulkhead Fitting (26457)26457$48.00
#27Heat N Glo & Quadra-Fire Bulkhead Stop (SRV474-0090)SRV474-0090$71.00
#28 Heat N Glo & Quadra-Fire Pilot Assembly - NG (230-1781)230-1781$112.00
#3Heat N Glo & Quadra-Fire Rear Log (7055-126)7055-126$236.00
#30Heat N Glo Tiara I-C Rear Log Support (7010-134)7010-134$59.00
#31Quadra-Fire & Heat N Glo Draw Latch (229-0640)229-0640$38.00
#32HHT Blower Kit (BK-GAS)BK-GAS$569.00
#33Quadra-Fire Topaz Rear Blower Bracket (7009-103)7009-103$37.00
#34Heat N Glo & Quadra-Fire Blower Bracket (7010-146)7010-146$42.00
#38Quadra-Fire Castile Side - Matte Black (SRV7021-125MBK)SRV7021-125MBK$658.00
#40AQuadra-Fire SIT Gas Valve - NG (842-0240)842-0240$274.00
#40BHeat N Glo & Quadra-Fire SIT Gas Valve - LP (842-0230)842-0230$305.00
#42Quadra-Fire Castile Valve Extension Adapter (450-6330)450-6330$13.00
#45Quadra-Fire Castile-Gas & Sapphire Control Rod (455-0340)455-0340$10.00
#46HHT Rheostat Knob - Black (SRV100-512)SRV100-512$17.00
#48Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#5AQuadra-Fire Top Vent Grill - Matte Black (455-0370MBK)455-0370MBK$151.00
#5BQuadra-Fire Top Vent Grill - Porcelain Mahogany (455-0370PMH)455-0370PMH$1,091.00
#5CQuadra-Fire Top CSB Vent Grill - Sienna Bronze (455-0370CSB)455-0370CSB$863.00
#6BQuadra-Fire Castile Top - Mahogany (7021-101PMH)7021-101PMH$1,091.00
#6CQuadra-Fire Castile Top - Sienna Bronze (7021-101CSB)7021-101CSB$755.00
#9Heat N Glo Tiara I-C Door Retainer (7010-122)7010-122$7.00
#LOGASSHeat N Glo & Quadra-Fire Log Assembly (SRV7055-013)SRV7055-013$390.00
#N/SQuadra-Fire Ceramic Log Pins - 12 Pack (7000-465/12)7000-465/12$18.00
#N/SQuadra-Fire Log Pin Ceramic - Pack of 12 (7000-466/12)7000-466/12$20.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire Tadpole Glass & Door Gasket - 10 Feet (844-3010)844-3010$65.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire Door Corner Tape (SRV7027-227)SRV7027-227$37.00
#N/SHHT Power Cord (832-2410)832-2410$120.00
#N/SQuadra-Fire Blower Housing (7016-138)7016-138$79.00
#N/SHHT Convection Blower (812-4900)812-4900$245.00
#N/SQuadra-Fire Thermostat Bracket (455-7230)455-7230$37.00
#N/SHHT Rheostat Knob - Black (SRV100-512)SRV100-512$17.00
#N/SQuadra-Fire Convection Snap Disc 125-20 (#1) (SRV230-0960)SRV230-0960$33.00
#N/SHeatilator Eco-Choice & Quadra-Fire Blower Speed Control (842-0370)842-0370$168.00
#N/SQuadra-Fire Wire Harness (455-7240)455-7240$34.00
#N/SHeat N Glo Tiara I-C Baffle Bracket (7010-137)7010-137$49.00
#N/SHeatilator & Quadra-Fire Brass Elbow (SRV17524)SRV17524$22.00
#N/SHeat N Glo & Quadra-Fire Burner Plate Assembly (7010-022)7010-022$55.00
#N/SHeat N Glo & Quadra-Fire Burner Stop (7010-152)7010-152$47.00
#N/SQuadra-Fire 1/4" Set Collar (229-0750)229-0750$7.00
#N/SQuadra-Fire & Heat N Glo EZ Pilot Injector Orifice - LP (SRV200-2630)SRV200-2630$19.00
#N/SHeat N Glo & Quadra-Fire Leveling Assembly (SRV7000-000)SRV7000-000$22.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SQuadra-Fire Keps Lock Nuts (226-0050/40)226-0050/40$10.00
#N/SHHT On/Off Valve (SRV15697)SRV15697$41.00
#N/SHHT Burner Orifice #52 .063 - LP (SRV17236)SRV17236$17.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Touch Up Paint - Porcelain Mahogany (855-1450)855-1450$30.00
#N/SQuadra-Fire Touch Up Paint - Sienna Bronze (TOUCHUP-CSB)TOUCHUP-CSB$26.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
#N/SHeat N Glo & Quadra-Fire Snap Disc Bracket (7009-108)7009-108$11.00
#N/SHeat N Glo & Quadra-Fire Damper Stop (468-0210)468-0210$7.00
#N/SHHT Brass Connector - 3/8 Flare x 3/8 NPT Male Elbow (SRV4021-045)SRV4021-045$23.00
#N/SQuadra-Fire & Heat N Glo SIT EZ Electrode (842-4580)842-4580$64.00
#N/SHHT Stainless Flex Gas Tube - 22" (7000-197)7000-197$45.00
#N/SHeat N Glo & Quadra-Fire Flue Collar Gasket (455-0660)455-0660$8.00
#N/SHeat N Glo & Quadra-Fire Cover Plate Gasket (7010-160)7010-160$8.00
#N/SHeat N Glo & Quadra-Fire Elbow Gasket (SRV460-0610)SRV460-0610$48.00
#N/SQuadra-Fire Sienna Bronze / Espresso Paint (PAINT1-CSB/CES)PAINT1-CSB/CES$40.00
#N/SHeat N Glo & Quadra-Fire Relief Door (7010-003)7010-003$65.00
#N/SHeat N Glo Tiara I-B Cast Iron Relief Door Bracket (7010-154)7010-154$6.00
#N/SQuadra-Fire & Heat N Glo 34" Thermocouple (200-2950)200-2950$34.00
#N/SHeat N Glo & Quadra-Fire Thermopile (842-0250)842-0250$92.00
#N/SHeat N Glo & Quadra-Fire Wire Harness (7010-156)7010-156$29.00
#N/SHeat N Glo & Quadra-Fire Conversion Kit - NG (NGK-MB)NGK-MB$145.00
#N/SHeat N Glo & Quadra-Fire Conversion Kit - LP (LPK-MB)LPK-MB$109.00
#N/SQuadra-Fire & Heat n Glo EZ Pilot Injector Orifice - NG (842-4440)842-4440$65.00
#N/SQuadra-Fire & Heat N Glo EZ Pilot Injector Orifice - LP (SRV200-2630)SRV200-2630$19.00
#N/SHHT Burner Orifice - .106 - NG (SRV19837)SRV19837$45.00
#N/SHHT Burner Orifice #52 .063 - LP (SRV17236)SRV17236$17.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
#N/SQuadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)841-0960$229.00
#N/SHeatilator Eco-Choice & Quadra-Fire Mechanical Thermostat (812-3760)812-3760$162.00
#N/SHHT Programmable Thermostat with Wire (PROG-STAT)PROG-STAT$247.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Keps Lock Nuts (226-0050/40)226-0050/40$10.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SQuadra-Fire 8-32 x 3/4 Pan Head Screws - 24 Pack (229-1100/24)229-1100/24$21.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
