Quadrafire Castile Pellet FS (Retired) Parts

Quadrafire Castile Pellet FS (Retired) Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Castile Pellet FS (Retired). This Pellet stove has 131 parts mapped in our interactive diagram below. Common replacement parts include Heatilator, Pelpro & Quadra-Fire Vacuum Switch, Quadra-Fire Castile FS Back Outer Skin, Quadra-Fire 3 Speed Control Board, HHT Hopper Lid Handle, and Quadra-Fire Castile FS Hopper Lid Assembly. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 131 replacement parts available.

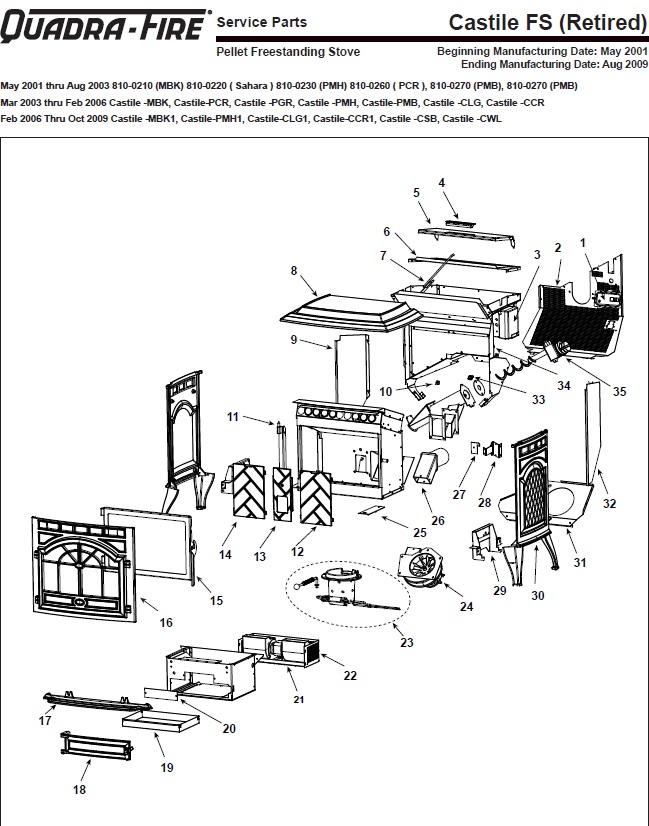

Quadrafire Castile Pellet FS (Retired) replacement parts diagram
Part #Part NamePart CodePrice
#1 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#10Heatilator Eco-Choice & Quadra-Fire Manual Reset Snap Disc (SRV230-1960)SRV230-1960$19.00
#10AQuadra-Fire Snap Disc #2 - 250 Degree (SRV7000-268)SRV7000-268$57.00
#11Quadra-Fire Castile FS Hinge Bracket - Pre SN 0071197648 (SRV413-0550)SRV413-0550$81.00
#11AQuadra-Fire Castile FS Hinge Bracket (413-0770)413-0770$6.00
#12Quadra-Fire Castile FS & Contour Right Cast Brick (412-0970)412-0970$90.00
#13Quadra-Fire Castile FS & Contour Center Cast Brick (412-0960)412-0960$85.00
#14Quadra-Fire Castile FS & Contour Left Cast Brick (412-0950)412-0950$115.00
#15Quadra-Fire Castile FS Top Air Wash Door Assembly (812-4890)812-4890$640.00
#15AQuadra-Fire Door Assembly (413-5110)413-5110$430.00
#16Quadra-Fire Castile Series Face - Black (413-0030BK)413-0030BK$589.00
#17Quadra-Fire Castile Ash Catcher - Black (413-0010BK)413-0010BK$294.00
#18Quadra-Fire Castile FS Ash Door Assembly (812-4600)812-4600$689.00
#19Quadra-Fire Castile FS Ash Pan (413-0400)413-0400$75.00
#2Quadra-Fire Castile FS Back Outer Skin (413-0440)413-0440$91.00
#20Quadra-Fire Castile Igniter Access Plate (SRV413-0380)SRV413-0380$53.00
#21HHT Convection Blower (812-4900)812-4900$245.00
#22Quadra-Fire Castile Convection Blower Shroud (SRV413-0300)SRV413-0300$100.00
#23Quadra-Fire EZ Clean Firepot Assembly (SRV414-5200)SRV414-5200$336.00
#24Quadra-Fire, PelPro & Heatilator Eco-Choice Exhaust Blower Motor (812-4400)812-4400$153.00
#25Quadra-Fire Castile & Santa Fe Ash Cleanout Plate (SRV7001-186)SRV7001-186$14.00
#26Quadra-Fire Castile FS Exhaust Transition Assembly (SRV413-5020)SRV413-5020$209.00
#27Quadra-Fire Castile FS Cast Side Top Mount Hook (413-0730)413-0730$12.00
#28Quadra-Fire Castile FS Cast Side Top Mount (413-0720)413-0720$12.00
#29Quadra-Fire Castile FS Side Mount - Bottom (413-0230)413-0230$10.00
#3Quadra-Fire 3 Speed Control Board (SRV7000-704)SRV7000-704$337.00
#31Quadra-Fire Castile FS Back Exhaust Shroud (SRV413-0310)SRV413-0310$102.00
#32Quadra-Fire Castile FS Right Outer Skin (413-0460)413-0460$72.00
#33Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#34Heatilator Eco-Choice & Quadra-Fire 110-20 Snap Disc (SRV230-1220)SRV230-1220$28.00
#35Quadra-Fire Feed Assembly (812-4760)812-4760$505.00
#4HHT Hopper Lid Handle (SRV200-0110)SRV200-0110$12.00
#5Quadra-Fire Castile FS Hopper Lid Assembly (413-5210)413-5210$124.00
#6Quadra-Fire Castile FS Hopper Top (SRV413-0260)SRV413-0260$115.00
#7AQuadra-Fire Feed Adjustment Plate (SRV7001-182)SRV7001-182$76.00
#8Quadra-Fire Top - Matte Black (413-0050BK)413-0050BK$427.00
#9Quadra-Fire Castile FS Left Outer Skin (413-0450)413-0450$75.00
#N/SHHT Rubber Bumpers - 3 Pack (SRV224-0340)SRV224-0340$14.00
#N/SQuadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#N/SQuadra-Fire Castile & MT Vernon Rivets - 25 Pack (25272/25)25272/25$32.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SHeat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#N/S Quadra-Fire Old Style Door Latch Assembly (SRV413-5200)SRV413-5200$46.00
#N/SQuadra-Fire Tadpole Gasket (842-5130)842-5130$38.00
#N/SQuadra-Fire Santa Fe & Castile Door Glass Assembly (SRV7001-038)SRV7001-038$281.00
#N/SQuadra-Fire Rope Retainer (SRV7001-192)SRV7001-192$19.00
#N/SHHT 1/4" x 10' Black Rope Gasket (834-1460)834-1460$41.00
#N/SQuadra-Fire Ash Removal System Handle (472-5060)472-5060$20.00
#N/SQuadra-Fire Ash Dump Control Rod Knob (832-3020)832-3020$78.00
#N/SQuadra-Fire EZ Clean Firepot Linkage Spring (200-2050)200-2050$7.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#N/SQuadra-Fire EZ Clean Firepot Bushing (410-8320)410-8320$7.00
#N/SQuadra-Fire EZ Clean Firepot Floor (414-0290)414-0290$79.00
#N/SQuadra-Fire Oval Firepot Gasket (SRV240-0930)SRV240-0930$19.00
#N/SHHT Lock Nut (226-0090)226-0090$2.50
#N/SQuadra-Fire 1-1/4" Firepot Bolt (225-0120)225-0120$2.50
#N/SQuadra-Fire & Heatilator Eco-Choice 14" Thermocouple (812-4470)812-4470$89.00
#N/SQuadra-Fire Thermocouple Clamp (SRV7001-203)SRV7001-203$81.00
#N/SHHT Combustion / Exhaust Blower Motor Housing Gasket (SRV240-0812)SRV240-0812$10.00
#N/SQuadra-Fire, PelPro & Heatilator Eco-Choice Combustion Blower Gasket - Round (812-4710)812-4710$34.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SHeatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#N/SQuadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#N/SQuadra-Fire Feed / Auger System Nylon Bearing (SRV410-0552)SRV410-0552$12.00
#N/SQuadra-Fire Auger Motor Gasket (SRV240-0731)SRV240-0731$4.00
#N/SHeatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#N/SQuadra-Fire Auger Set Screws - 25 Pack (225-0550/25)225-0550/25$35.00
#N/SQuadra-Fire Castile & Contour Top Baffle (413-0360)413-0360$175.00
#N/SQuadra-Fire Thermostat Term DV Block (SRV230-0690)SRV230-0690$52.00
#N/SQuadra-Fire Call Light Bulb - Old Style Junction Box (812-0760)812-0760$14.00
#N/SQuadra-Fire Call Light Lens - Old Style Junction Box (812-0750)812-0750$57.00
#N/SQuadra-Fire Fluorescent Call Light - Newer Junction Box (SRV7000-122)SRV7000-122$58.00
#N/SQuadra-Fire Component Pack Assembly MBK (413-5130)413-5130$183.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)SRV230-0810$38.00
#N/SHeat N Glo & Quadra-Fire Leveling Assembly (SRV7000-000)SRV7000-000$22.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Touch Up Paint - Sienna Bronze (TOUCHUP-CSB)Touchup-CSB$26.00
#N/SQuadra-Fire Touch Up Paint - Porcelain Mahogany (855-1450)855-1450$30.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire Bottom Air Wash Deflector (SRV413-0680)SRV413-0680$67.00
#N/SQuadra-Fire Face Stop (413-0760)413-0760$6.00
#N/SQuadra-Fire & Heatilator Eco-Choice Junction Box 7 Amp Fuses - 10 Pack (812-0380/10)812-0380/10$21.00
#N/SQuadra-Fire .8 Amp Fuse - Control Box - 10 Pack (812-3780/10)812-3780/10$40.00
#N/SQuadra-Fire Male Door Hinge (SRV450-2810)SRV450-2810$44.00
#N/SHHT 5/32" ID Vacuum Hose (SRV240-0450)SRV240-0450$53.00
#N/SQuadra-Fire Igniter Wire with Wire Nuts (812-4520)812-4520$213.00
#N/SQuadra-Fire Log Set (LOGS-30-OE)LOGS-30-OE$309.00
#N/SQuadra-Fire Side Log - Left (7050-144)7050-144$249.00
#N/SQuadra-Fire Side Log - Right (7050-143)7050-143$249.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire Castile Scraper Repair Kit (SCRAPER-CSTL)SCRAPER-CSTL$131.00
#N/SQuadra-Fire Manual Reset Snap Disc #2 Retro Kit (812-4650)812-4650$89.00
#N/SQuadra-Fire Heat Output Rocker Switch - 3 Way (812-3500)812-3500$77.00
#N/SQuadra-Fire Thermocouple Grounding Kit (812-4980)812-4980$40.00
#N/SQuadra-Fire Junction Box & Wire Harness (SRV7001-194)SRV7001-194$294.00
#N/SQuadra-Fire & Eco-Choice Top Vent Offset Collar (812-3570)812-3570$169.00
#N/SQuadra-Fire & Eco-Choice Pellet Stove 3" Damper (PEL-DAMP3)PEL-DAMP3$255.00
#N/SQuadra-Fire & Heatilator 4" Damper (PEL-DAMP4)PEL-DAMP4$455.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Kit - Rear Mount (811-0872)811-0872$149.00
#N/SQuadra-Fire Air Intake Channel (SRV413-7040)SRV413-7040$83.00
#N/SQuadra-Fire Outside Air Kit Floor Cover (SRV411-1071)SRV411-1071$47.00
#N/SQuadra-Fire 2" x 3' Aluminum Flex Hose (SRV200-0860)SRV200-0860$48.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Cap Assembly (SRV7001-044)SRV7001-044$46.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Collar Assembly (SRV7001-045)SRV7001-045$71.00
#N/SQuadra-Fire Outside Air Kit Trim Plate (SRV412-7100)SRV412-7100$12.00
#N/SQuadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)841-0960$229.00
#N/SHeatilator Eco-Choice & Quadra-Fire Mechanical Thermostat (812-3760)812-3760$162.00
#N/SHHT Programmable Thermostat with Wire (PROG-STAT)PROG-STAT$247.00
#N/SQuadra-Fire Castile & Santa Fe Vertical Adapter Kit (TPVNT-2)TPVNT-2$133.00
#N/SQuadra-Fire & Heatilator Eco-Choice Top Vertical Adapter and Cleanout (TPVNT-6)TPVNT-6$139.00
#N/SQuadra-Fire Rear Vent Adapter W / Cleanout (811-0620)811-0620$229.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SQuadra-Fire & Heat N Glo Keps Lock Nuts (226-0060/40)226-0060/40$23.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire Ceramic Wire Nut (812-0730)812-0730$5.00
#N/SQuadra-Fire 1/4-20" Screws - 24 Pack (7000-130/24)7000-130/24$35.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SHeatilator & Quadra-Fire Philips Head Screws - 40 Pack (21799A/40)21799A/40$23.00
#N/SQuadra-Fire 8-32 x 3/4 Pan Head Screws - 24 Pack (229-1100/24)229-1100/24$21.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
