Quadrafire CB1200 Pellet Insert Parts Diagram

Quadrafire CB1200 Pellet Insert Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire CB1200 Pellet Insert. This Pellet insert has 130 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire CB1200 Insert Top Assembly, Quadra-Fire Classic Bay Insert Feed Motor Top Cover, Quadra-Fire Feed Motor & Spring Assembly, Quadra-Fire Top Heat Shield Extension, and Quadra-Fire 1200i Rear Vent Exhaust Adapter Assembly W / Gasket. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 130 replacement parts available.

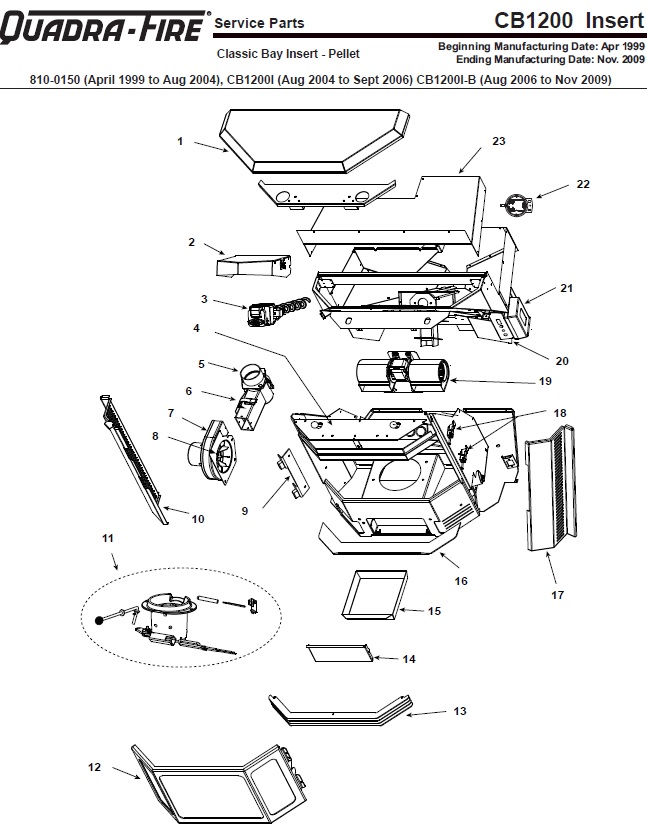

Quadrafire CB1200 Pellet Insert replacement parts diagram

Part #	Part Name	Part Code	Price
#1	Quadra-Fire CB1200 Insert Top Assembly (SRV7027-040)	SRV7027-040	$261.00
#10	Quadra-Fire Classic Bay Insert Door Hinge Mount (410-7290)	410-7290	$48.00
#11	Quadra-Fire 1200 & 1200i EZ Clean Firepot (812-3351)	812-3351	$495.00
#12	Quadra-Fire Classic Bay Door Assembly - Black (DR-CB12-MBK-B)	DR-CB12-MBK-B	$999.00
#13	Quadra-Fire Classic Bay Grille Louvre - Black (LVGRL-CB12-BK-B)	LVGRL-CB12-BK-B	$239.00
#14	Quadra-Fire Ash Pan Door w/Front Access (812-4290)	812-4290	$311.00
#15	Quadra-Fire CB1200-I Ash Pan (812-4130)	812-4130	$77.00
#17	Quadra-Fire 1200 Insert Right Side Curtain (812-4320)	812-4320	$319.00
#18	Quadra-Fire & Heat N Glo Draw Latch (229-0640)	229-0640	$38.00
#19	HHT Convection Blower (812-4900)	812-4900	$245.00
#2	Quadra-Fire Classic Bay Insert Feed Motor Top Cover (410-7920)	410-7920	$53.00
#20	Quadra-Fire 1200 Insert Wire Harness & Junction Box (SRV7000-155)	SRV7000-155	$347.00
#21	Quadra-Fire 3 Speed Control Board (SRV7000-704)	SRV7000-704	$337.00
#22	Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)	SRV7000-531	$101.00
#23	Quadra-Fire Classic Bay Insert Hopper Top (410-7730)	410-7730	$85.00
#3	Quadra-Fire Feed Motor & Spring Assembly (812-3690)	812-3690	$450.00
#4	Quadra-Fire Top Heat Shield Extension (410-7860)	410-7860	$79.00
#5	Quadra-Fire 1200i Rear Vent Exhaust Adapter Assembly W / Gasket (510-5330)	510-5330	$105.00
#6	Quadra-Fire Exhaust Transition Assembly (510-5340)	510-5340	$257.00
#7	Quadra-Fire 1200 Classic Bay Exhaust Blower (812-3381)	812-3381	$358.00
#8	Quadra-Fire, PelPro & Heatilator Eco-Choice Combustion Blower Gasket - Round (812-4710)	812-4710	$34.00
#8A	HHT Combustion / Exhaust Blower Motor Housing Gasket (SRV240-0812)	SRV240-0812	$10.00
#9	Quadra-Fire CB1200I Side Curtain - Left (812-4310)	812-4310	$331.00
#N/S	Quadra-Fire 1200i Hopper Lid Hinge (812-4220)	812-4220	$82.00
#N/S	Quadra-Fire Classic Bay Right Hopper Lid Support (410-7410)	410-7410	$8.00
#N/S	Quadra-Fire Classic Bay Top Hopper Lid Support (410-7560)	410-7560	$8.00
#N/S	HHT Screws - 40-Pack (225-0500/40)	225-0500/40	$25.00
#N/S	Heatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)	812-4421	$255.00
#N/S	Quadra-Fire 7/8" Feed Motor Set Collar (229-0520)	229-0520	$7.00
#N/S	Heatilator & Quadra-Fire Nylon Auger Bearing (SRV7000-598)	SRV7000-598	$62.00
#N/S	Quadra-Fire Classic Bay Feed Motor Mount (410-7172)	410-7172	$46.00
#N/S	Quadra-Fire Auger Motor Gasket (SRV240-0731)	SRV240-0731	$4.00
#N/S	Quadra-Fire Classic Bay Feed Spring Assembly (SRV7027-024)	SRV7027-024	$145.00
#N/S	Quadra-Fire Auger Set Screws - 25 Pack (225-0550/25)	225-0550/25	$35.00
#N/S	Quadra-Fire Feed / Auger System Nylon Bearing (SRV410-0552)	SRV410-0552	$12.00
#N/S	Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)	SRV230-1290	$28.00
#N/S	Quadra-Fire Flue Adapter Gasket (SRV240-0850)	SRV240-0850	$14.00
#N/S	Quadra-Fire 1200i Top Vent Gasket (SRV240-0840)	SRV240-0840	$13.00
#N/S	Quadra-Fire Draw Latch (229-0230)	229-0230	$25.00
#N/S	Quadra-Fire 1200 & 1200MI EZ Clean Linkage Rod (812-4140)	812-4140	$154.00
#N/S	Quadra-Fire Ash Dump Control Rod Knob (832-3020)	832-3020	$78.00
#N/S	Quadra-Fire EZ Clean Firepot Linkage Spring (200-2050)	200-2050	$7.00
#N/S	Quadra-Fire EZ Clean Firepot Bushing (410-8320)	410-8320	$7.00
#N/S	Quadra-Fire EZ Clean Firepot Floor (414-0290)	414-0290	$79.00
#N/S	Quadra-Fire Firepot / Burnpot Gasket (SRV510-0530)	SRV510-0530	$15.00
#N/S	Quadra-Fire Thermocouple Cover (812-1322)	812-1322	$8.00
#N/S	Quadra-Fire Thermocouple (812-0210)	812-0210	$80.00
#N/S	Quadra-Fire Thermocouple Bracket (812-3171)	812-3171	$77.00
#N/S	Quadra-Fire 18" Loop Igniter (812-3811)	812-3811	$50.00
#N/S	Quadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)	7000-223/24	$31.00
#N/S	Quadra-Fire Female Door Hinge (SRV450-2910)	SRV450-2910	$37.00
#N/S	Quadra-Fire Front Center Glass (SRV510-5400)	SRV510-5400	$189.00
#N/S	Quadra-Fire Side Glass Assembly (SRV510-5410)	SRV510-5410	$98.00
#N/S	Quadra-Fire Glass Retainer Assembly (SRV510-5460)	SRV510-5460	$393.00
#N/S	Quadra-Fire 7/8" Door Rope Gasket - 8 Feet (842-2350)	842-2350	$81.00
#N/S	Quadra-Fire 1200 and 1200i Glass Gasket (833-0660)	833-0660	$86.00
#N/S	Quadra-Fire CB1200 Series Door Latch Bracket (SRV410-4912)	SRV410-4912	$50.00
#N/S	Quadra-Fire Classic Bay 1200 Bottom Grill Bar (410-8330)	410-8330	$59.00
#N/S	Quadra-Fire Thermostat Term DV Block (SRV230-0690)	SRV230-0690	$52.00
#N/S	Quadra-Fire Igniter Extension (7000-218)	7000-218	$14.00
#N/S	Quadra-Fire 1200 Insert Left Baffle (812-4200)	812-4200	$179.00
#N/S	Quadra-Fire 1200 Insert Right Baffle (812-4210)	812-4210	$167.00
#N/S	Quadra-Fire Call Light Bulb - Old Style Junction Box (812-0760)	812-0760	$14.00
#N/S	Quadra-Fire Call Light Lens - Old Style Junction Box (812-0750)	812-0750	$57.00
#N/S	Quadra-Fire Fluorescent Call Light - Newer Junction Box (SRV7000-122)	SRV7000-122	$58.00
#N/S	Quadra-Fire CB1200 & CB1200MI-MBK Component Pack (812-4330)	812-4330	$269.00
#N/S	Quadra-Fire Burnpot Cleanout Tool (SRV414-1140)	SRV414-1140	$39.00
#N/S	Quadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)	SRV230-0810	$38.00
#N/S	HHT Touch Up Paint - Matte Black (812-0910)	812-0910	$50.00
#N/S	HHT Power Cord (812-1180)	812-1180	$85.00
#N/S	Quadra-Fire Classic Bay Insert Exhaust Plenum Clean-Out Plate (410-7910)	410-7910	$34.00
#N/S	Quadra-Fire CB1200 Insert Feed Adjustment Assembly (510-5450)	510-5450	$93.00
#N/S	Quadra-Fire Thumb Screws (844-5070)	844-5070	$45.00
#N/S	Quadra-Fire & Heatilator Eco-Choice Junction Box 7 Amp Fuses - 10 Pack (812-0380/10)	812-0380/10	$21.00
#N/S	Quadra-Fire Male Door Hinge (SRV450-2810)	SRV450-2810	$44.00
#N/S	HHT 5/32" ID Vacuum Hose (SRV240-0450)	SRV240-0450	$53.00
#N/S	Quadra-Fire Igniter Wire with Wire Nuts (812-4520)	812-4520	$213.00
#N/S	Heat N Glo, Heatilator, & Quadra-Fire Air Control Latch Magnet (SRV229-0631)	SRV229-0631	$12.00
#N/S	Heatilator, Quadra-Fire, & Vermont Castings Convection Fan Snap Disc #1 (SRV230-0470)	SRV230-0470	$37.00
#N/S	Quadra-Fire 200 Degree Snap Switch (#2) (SRV230-0900)	SRV230-0900	$40.00
#N/S	Quadra-Fire Thermocouple Grounding Kit (812-4980)	812-4980	$40.00
#N/S	Quadra-Fire & Eco-Choice Pellet Stove 3" Damper (PEL-DAMP3)	PEL-DAMP3	$255.00
#N/S	Quadra-Fire & Heatilator 4" Damper (PEL-DAMP4)	PEL-DAMP4	$455.00
#N/S	Quadra-Fire & Heatilator Eco-Choice Log Set (811-0592)	811-0592	$289.00
#N/S	Quadra-Fire Santa-Fe Insert Face - Left (SRV7019-220)	SRV7019-220	$175.00
#N/S	Quadra-Fire Classic Bay 1200i Outside Air Kit (811-0700)	811-0700	$75.00
#N/S	Quadra-Fire 2" x 3' Aluminum Flex Hose (SRV200-0860)	SRV200-0860	$48.00
#N/S	Quadra-Fire Trim Brackets - 2 Pack (832-0840)	832-0840	$82.00
#N/S	Quadra-Fire Gold Trim Panel Set (SRV250-4660)	SRV250-4660	$234.00
#N/S	Quadra-Fire Classic Bay Large Surround - Satin Nickel (SP-CB12I3350-NL)	SP-CB12I3350-NL	$489.00
#N/S	Quadra-Fire Trim Brackets - 2 Pack (832-0840)	832-0840	$82.00
#N/S	Quadra-Fire CB1200I Large Panel Trim Assembly - Nickel (510-5220)	510-5220	$175.00
#N/S	Quadra-Fire Trim Brackets - 2 Pack (832-0840)	832-0840	$82.00
#N/S	Quadra-Fire CB1200I Large Panel Trim Assembly - Nickel (510-5220)	510-5220	$175.00
#N/S	Quadra-Fire Gold Trim Set (811-0710)	811-0710	$395.00
#N/S	Quadra-Fire Small Surround - Satin Nickel (SP-CB12I3040-NL)	SP-CB12I3040-NL	$435.00
#N/S	Quadra-Fire CB1200I Small Panel Trim Assembly - Nickel (510-5210)	510-5210	$181.00
#N/S	Quadra-Fire Rear Shroud Assembly W/ Top Vent Kit (811-0680)	811-0680	$329.00
#N/S	Quadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)	841-0960	$229.00
#N/S	Heatilator Eco-Choice & Quadra-Fire Mechanical Thermostat (812-3760)	812-3760	$162.00
#N/S	HHT Programmable Thermostat with Wire (PROG-STAT)	PROG-STAT	$247.00
#N/S	Quadra-Fire CB1200 Insert 3" Top Vent Adapter (811-0660)	811-0660	$189.00
#N/S	Quadra-Fire CB1200 4" Top Vent Adapter (811-0670)	811-0670	$189.00
#N/S	Quadra-Fire 1200i Top Vent Kit (811-0650)	811-0650	$256.00
#N/S	Quadra-Fire 3"- 4" Offset Vent Adapter (811-0720)	811-0720	$169.00
#N/S	Quadra-Fire 1200 Classic Bay Insert Rear Vent Kit (811-0690)	811-0690	$180.00
#N/S	HHT AVK Repair Kit (RIVNUT-REPAIR)	RIVNUT-REPAIR	$125.00
#N/S	Quadra-Fire Ceramic Wire Nut (812-0730)	812-0730	$5.00
#N/S	HHT Lock Nut (226-0090)	226-0090	$2.50
#N/S	Heat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)	220-0440/24	$25.00
#N/S	Heatilator & Quadra-Fire Philips Head Screws - 40 Pack (21799A/40)	21799A/40	$23.00
#N/S	Quadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)	12460/40	$14.00
