Quadrafire CB1200MI-MBK Parts Diagram

Quadrafire CB1200MI-MBK Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire CB1200MI-MBK. This Pellet stove has 131 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire CB1200 Insert Top Assembly, Quadra-Fire 1200i Hopper Lid Hinge, Quadra-Fire Classic Bay Right Hopper Lid Support, Quadra-Fire Classic Bay Top Hopper Lid Support, and Quadra-Fire Classic Bay Insert Feed Motor Top Cover. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 131 replacement parts available.

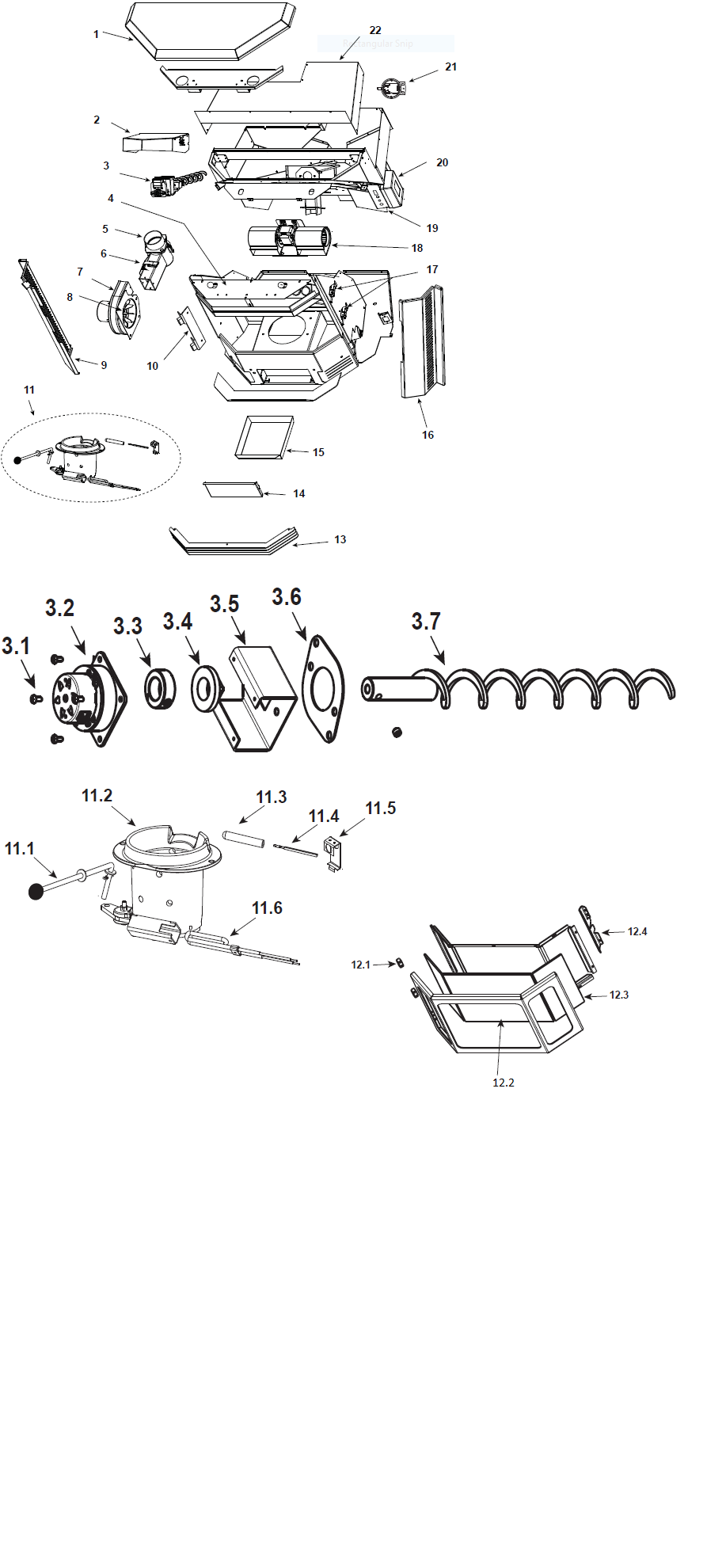

Quadrafire CB1200MI-MBK replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire CB1200 Insert Top Assembly (SRV7027-040)SRV7027-040$261.00
#10Quadra-Fire Classic Bay Insert Door Hinge Mount (410-7290)410-7290$48.00
#11.1Quadra-Fire 1200 & 1200MI EZ Clean Linkage Rod (812-4140)812-4140$154.00
#11.2Quadra-Fire 1200 & 1200i EZ Clean Firepot (812-3351)812-3351$495.00
#11.3A Quadra-Fire Thermocouple Cover (812-1322)812-1322$8.00
#11.4Quadra-Fire Thermocouple (812-0210)812-0210$80.00
#11.5Quadra-Fire Thermocouple Bracket (812-3171)812-3171$77.00
#11.6AHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#12.1Quadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#12.2Quadra-Fire Front Center Glass (SRV510-5400)SRV510-5400$189.00
#12.3Quadra-Fire Side Glass Assembly (SRV510-5410)SRV510-5410$98.00
#12.4Quadra-Fire Glass Retainer Assembly (SRV510-5460)SRV510-5460$393.00
#13AQuadra-Fire Classic Bay Grille Louvre - Black (LVGRL-CB12-BK-B)LVGRL-CB12-BK-B$239.00
#14Quadra-Fire Ash Pan Door w/Front Access (812-4290)812-4290$311.00
#15Quadra-Fire CB1200-I Ash Pan (812-4130)812-4130$77.00
#16Quadra-Fire 1200 Insert Right Side Curtain (812-4320)812-4320$319.00
#17Quadra-Fire & Heat N Glo Draw Latch (229-0640)229-0640$38.00
#18HHT Convection Blower (812-4900)812-4900$245.00
#19Quadra-Fire 1200 Insert Wire Harness & Junction Box (SRV7000-155)SRV7000-155$347.00
#2Quadra-Fire Classic Bay Insert Feed Motor Top Cover (410-7920)410-7920$53.00
#20Quadra-Fire 3 Speed Control Board (SRV7000-704)SRV7000-704$337.00
#21 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#22Quadra-Fire Classic Bay Insert Hopper Top (410-7730)410-7730$85.00
#3Quadra-Fire Feed Motor & Spring Assembly (812-3690)812-3690$450.00
#3.1HHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#3.2Heatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#3.3Quadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#3.4Heatilator & Quadra-Fire Nylon Auger Bearing (SRV7000-598)SRV7000-598$62.00
#3.5Quadra-Fire Classic Bay Feed Motor Mount (410-7172)410-7172$46.00
#3.6Quadra-Fire Auger Motor Gasket (SRV240-0731)SRV240-0731$4.00
#3.7Quadra-Fire Classic Bay Feed Spring Assembly (SRV7027-024)SRV7027-024$145.00
#4Quadra-Fire Top Heat Shield Extension (410-7860)410-7860$79.00
#5Quadra-Fire 1200i Rear Vent Exhaust Adapter Assembly W / Gasket (510-5330)510-5330$105.00
#6Quadra-Fire Exhaust Transition Assembly (510-5340)510-5340$257.00
#7Quadra-Fire 1200 Classic Bay Exhaust Blower (812-3381)812-3381$358.00
#8AQuadra-Fire, PelPro & Heatilator Eco-Choice Combustion Blower Gasket - Round (812-4710)812-4710$34.00
#8BHHT Combustion / Exhaust Blower Motor Housing Gasket (SRV240-0812)SRV240-0812$10.00
#9Quadra-Fire CB1200I Side Curtain - Left (812-4310)812-4310$331.00
#N/SQuadra-Fire 1200i Hopper Lid Hinge (812-4220)812-4220$82.00
#N/SQuadra-Fire Classic Bay Right Hopper Lid Support (410-7410)410-7410$8.00
#N/SQuadra-Fire Classic Bay Top Hopper Lid Support (410-7560)410-7560$8.00
#N/SQuadra-Fire Feed / Auger System Nylon Bearing (SRV410-0552)SRV410-0552$12.00
#N/SQuadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#N/SQuadra-Fire Flue Adapter Gasket (SRV240-0850)SRV240-0850$14.00
#N/SQuadra-Fire 1200i Top Vent Gasket (SRV240-0840)SRV240-0840$13.00
#N/SQuadra-Fire Draw Latch (229-0230)229-0230$25.00
#N/SQuadra-Fire Ash Dump Control Rod Knob (832-3020)832-3020$78.00
#N/SQuadra-Fire EZ Clean Firepot Linkage Spring (200-2050)200-2050$7.00
#N/SQuadra-Fire EZ Clean Firepot Bushing (410-8320)410-8320$7.00
#N/SQuadra-Fire EZ Clean Firepot Floor (414-0290)414-0290$79.00
#N/SQuadra-Fire Firepot / Burnpot Gasket (SRV510-0530)SRV510-0530$15.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SQuadra-Fire CB1200 Series Door Latch Bracket (SRV410-4912)SRV410-4912$50.00
#N/SQuadra-Fire 7/8" Door Rope Gasket - 8 Feet (842-2350)842-2350$81.00
#N/SQuadra-Fire 1200 and 1200i Glass Gasket (833-0660)833-0660$86.00
#N/SQuadra-Fire Classic Bay 1200 Bottom Grill Bar (410-8330)410-8330$59.00
#N/SQuadra-Fire Thermostat Term DV Block (SRV230-0690)SRV230-0690$52.00
#N/SQuadra-Fire Igniter Extension (7000-218)7000-218$14.00
#N/SQuadra-Fire 1200 Insert Left Baffle (812-4200)812-4200$179.00
#N/SQuadra-Fire 1200 Insert Right Baffle (812-4210)812-4210$167.00
#N/SQuadra-Fire CB1200-I Magnet Mount Bracket (410-7760)410-7760$8.00
#N/SQuadra-Fire Call Light Bulb - Old Style Junction Box (812-0760)812-0760$14.00
#N/SQuadra-Fire Call Light Lens - Old Style Junction Box (812-0750)812-0750$57.00
#N/SQuadra-Fire Fluorescent Call Light - Newer Junction Box (SRV7000-122)SRV7000-122$58.00
#N/SQuadra-Fire CB1200 & CB1200MI-MBK Component Pack (812-4330)812-4330$269.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)SRV230-0810$38.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire Classic Bay Insert Exhaust Plenum Clean-Out Plate (410-7910)410-7910$34.00
#N/SQuadra-Fire CB1200 Insert Feed Adjustment Assembly (510-5450)510-5450$93.00
#N/SQuadra-Fire Thumb Screws (844-5070)844-5070$45.00
#N/SQuadra-Fire & Heatilator Eco-Choice Junction Box 7 Amp Fuses - 10 Pack (812-0380/10)812-0380/10$21.00
#N/SQuadra-Fire .8 Amp Fuse - Control Box - 10 Pack (812-3780/10)812-3780/10$40.00
#N/SQuadra-Fire Male Door Hinge (SRV450-2810)SRV450-2810$44.00
#N/SQuadra-Fire & Heatilator Eco-Choice Magnetic Hopper Lid Switch (SRV7000-375)SRV7000-375$30.00
#N/SHHT 5/32" ID Vacuum Hose (SRV240-0450)SRV240-0450$53.00
#N/SQuadra-Fire Igniter Wire with Wire Nuts (812-4520)812-4520$213.00
#N/SHeat N Glo, Heatilator, & Quadra-Fire Air Control Latch Magnet (SRV229-0631)SRV229-0631$12.00
#N/SQuadra-Fire Pellet Stove Reset Button (SRV7000-040)SRV7000-040$43.00
#N/SQuadra-Fire 1200I Snap Disc 100-20 #1 (SRV7000-829)SRV7000-829$7.00
#N/SQuadra-Fire 200 Degree Snap Switch (#2) (SRV230-0900)SRV230-0900$40.00
#N/SQuadra-Fire Thermocouple Grounding Kit (812-4980)812-4980$40.00
#N/SQuadra-Fire Hopper Switch Wire Harness (SRV414-1220)SRV414-1220$57.00
#N/SQuadra-Fire & Eco-Choice Pellet Stove 3" Damper (PEL-DAMP3)PEL-DAMP3$255.00
#N/SQuadra-Fire & Heatilator 4" Damper (PEL-DAMP4)PEL-DAMP4$455.00
#N/SQuadra-Fire & Heatilator Eco-Choice Log Set (811-0592)811-0592$289.00
#N/SQuadra-Fire Classic Bay 1200i Outside Air Kit (811-0700)811-0700$75.00
#N/SQuadra-Fire 2" x 3' Aluminum Flex Hose (SRV200-0860)SRV200-0860$48.00
#N/SQuadra-Fire Trim Brackets - 2 Pack (832-0840)832-0840$82.00
#N/SQuadra-Fire Gold Trim Panel Set (SRV250-4660)SRV250-4660$234.00
#N/SQuadra-Fire Classic Bay Large Surround - Satin Nickel (SP-CB12I3350-NL)SP-CB12I3350-NL$489.00
#N/SQuadra-Fire CB1200I Large Panel Trim Assembly - Nickel (510-5220)510-5220$175.00
#N/SQuadra-Fire Black Nickel Trim Set - Black (7019-027)7019-027$181.00
#N/SQuadra-Fire Gold Trim Set (811-0710)811-0710$395.00
#N/SQuadra-Fire Small Surround - Satin Nickel (SP-CB12I3040-NL)SP-CB12I3040-NL$435.00
#N/SQuadra-Fire CB1200I Small Panel Trim Assembly - Nickel (510-5210)510-5210$181.00
#N/SQuadra-Fire Panel Trim Set - Black Nickel (7019-026)7019-026$176.00
#N/SQuadra-Fire Pull Rod Handle (PULLROD-HNDL)PULLROD-HNDL$131.00
#N/SQuadra-Fire Rear Shroud Assembly W/ Top Vent Kit (811-0680)811-0680$329.00
#N/SQuadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)841-0960$229.00
#N/SHHT Programmable Thermostat with Wire (PROG-STAT)PROG-STAT$247.00
#N/SQuadra-Fire CB1200 Insert 3" Top Vent Adapter (811-0660)811-0660$189.00
#N/SQuadra-Fire CB1200 4" Top Vent Adapter (811-0670)811-0670$189.00
#N/SQuadra-Fire 1200i Top Vent Kit (811-0650)811-0650$256.00
#N/SQuadra-Fire 3"- 4" Offset Vent Adapter (811-0720)811-0720$169.00
#N/SQuadra-Fire 1200 Classic Bay Insert Rear Vent Kit (811-0690)811-0690$180.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SHHT Rubber Bumpers - 3 Pack (SRV224-0340)SRV224-0340$14.00
#N/SQuadra-Fire Ceramic Wire Nut (812-0730)812-0730$5.00
#N/SQuadra-Fire & Heat N Glo Keps Lock Nuts (226-0060/40)226-0060/40$23.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SHeat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#N/SHeatilator & Quadra-Fire Philips Head Screws - 40 Pack (21799A/40)21799A/40$23.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
