Quadrafire Edge 60 Parts Diagram

Quadrafire Edge 60 Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Edge 60. This Pellet stove has 128 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Edge 60 Left Side Panel, Heatilator Eco-Choice & Quadra-Fire Twin Ball Catch & Striker, Quadra-Fire Edge 60 Hopper Door Assembly, HHT Hopper Lid Handle, and Heatilator & Quadra-Fire Male Hinge. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 128 replacement parts available.

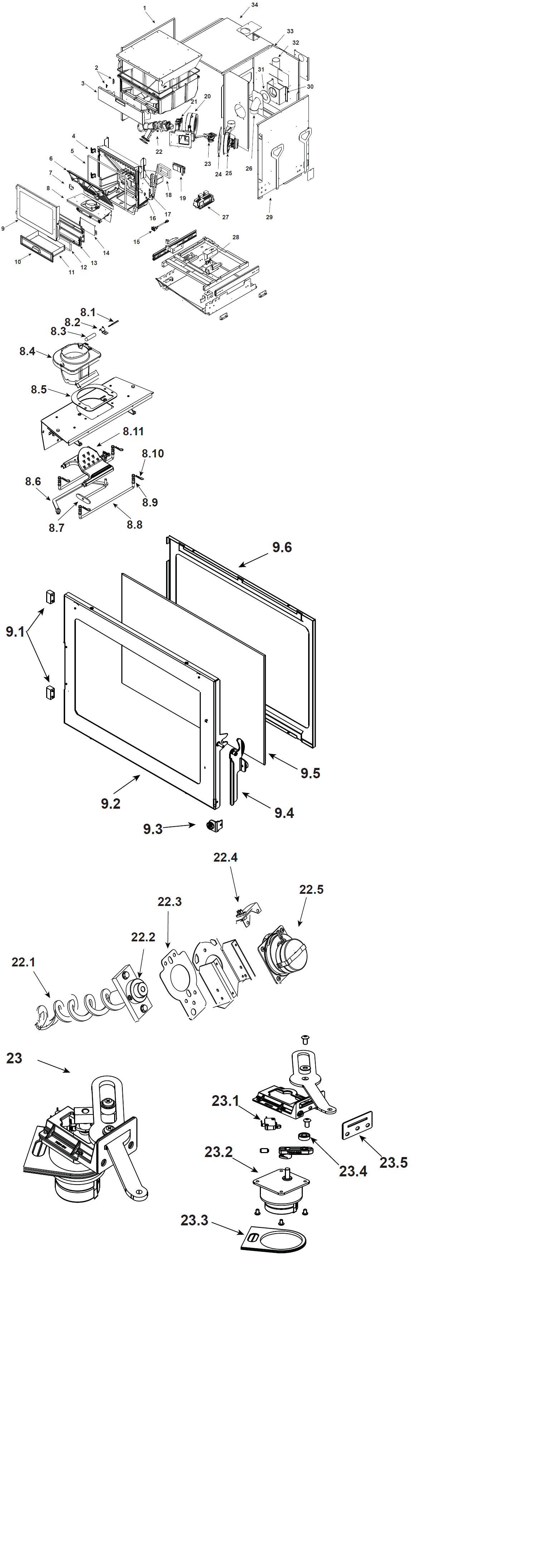

Quadrafire Edge 60 replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire Edge 60 Left Side Panel (SRV7051-110)SRV7051-110$259.00
#10Quadra-Fire & Heatilator Ash Pan Door (SRV7034-133)SRV7034-133$195.00
#11Quadra-Fire & Heatilator Ash Pan Assembly (SRV7034-069)SRV7034-069$252.00
#12Heatilator & Quadra-Fire Ash Door Gasket (SRV7034-178)SRV7034-178$65.00
#13Heatilator & Quadra-Fire Face Plate (7034-124)7034-124$275.00
#14Heatilator & Quadra-Fire Intake Shield (SRV7034-224)SRV7034-224$12.00
#15Heatilator & Quadra-Fire Battery Backup Wire Harness (SRV7034-202)SRV7034-202$46.00
#16Quadra-Fire & Heatilator Eco-Choice Magnetic Hopper Lid Switch (SRV7000-375)SRV7000-375$30.00
#17Quadra-Fire & Heatilator Latch Bracket Assembly (SRV7034-049)SRV7034-049$25.00
#18Quadra-Fire Edge 60 Outside Air Gasket (SRV7051-126)SRV7051-126$54.00
#19 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#2Heatilator Eco-Choice & Quadra-Fire Twin Ball Catch & Striker (SRV7000-532)SRV7000-532$97.00
#20Quadra-Fire Mt. Vernon AE and Edge 60 Convection Blower (SRV7000-260)SRV7000-260$368.00
#21Heatilator & Quadra-Fire Control Board Assembly (SRV7000-456)SRV7000-456$969.00
#22Quadra-Fire Mt. Vernon AE & Edge 60 Feed Assembly (SRV7034-004)SRV7034-004$461.00
#22.1Heatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#22.2Heatilator & Quadra-Fire Nylon Auger Bearing (SRV7000-598)SRV7000-598$62.00
#22.3Heailator & Quadra-Fire Feed Motor Gasket (SRV7034-144)SRV7034-144$17.00
#22.4Quadra-Fire & Heatilator Optical Switch Assembly (SRV7034-038)SRV7034-038$168.00
#22.5Quadra-Fire Edge 60 & MT Vernon-AE Auger Motor (SRV7000-313)SRV7000-313$258.00
#23Quadra-Fire Auto-Clean Motor/Arm Assembly (SRV7034-020)SRV7034-020$674.00
#23.1Quadra-Fire Mt Vernon AE & Edge 60 Micro Switch (SRV7000-327)SRV7000-327$14.00
#23.2Heatilator & Quadra-Fire Auto-Clean Gear Motor - 12 Volt (SRV7000-502)SRV7000-502$147.00
#23.3Quadra-Fire Auto Clean Motor Grommet (7034-188)7034-188$10.00
#23.4Quadra-Fire Auto Clean Bearing (7000-333)7000-333$13.00
#23.5Heatilator & Quadra-Fire Auto Clean Gasket (SRV7034-165)SRV7034-165$14.00
#24Quadra-Fire Mt. Vernon AE & Edge 60 Combustion Blower Housing Gasket (SRV7000-332)SRV7000-332$24.00
#25Quadra-Fire Combustion / Exhaust Blower Motor (SRV7034-033)SRV7034-033$262.00
#26Quadra-Fire Edge 60 Exhaust Transition Assembly (SRV7051-007)SRV7051-007$259.00
#27Heatilator & Quadra-Fire DC Power Supply Assembly (SRV7000-443)SRV7000-443$368.00
#28Quadra-Fire Edge 60 Wire Harness Power Receptacle (SRV7051-152)SRV7051-152$91.00
#29Quadra-Fire Edge 60 Right Side Panel (SRV7051-102)SRV7051-102$259.00
#3Quadra-Fire Edge 60 Hopper Door Assembly (SRV7051-013)SRV7051-013$279.00
#30Quadra-Fire Edge 60 Exhaust Flue Assembly (SRV7051-008)SRV7051-008$47.00
#31Quadra-Fire Edge 60 Exhaust Transition Gasket (SRV7051-116)SRV7051-116$85.00
#32Quadra-Fire Edge 60 Exhaust Adapter Assembly (SRV7051-016)SRV7051-016$159.00
#33Quadra-Fire Edge 60 Back Panel Assembly (SRV7051-010)SRV7051-010$849.00
#34Quadra-Fire Edge 60 Panel Top (SRV7051-100)SRV7051-100$299.00
#4Heatilator & Quadra-Fire Male Hinge (SRV7034-138)SRV7034-138$48.00
#5Heatilator & Quadra-Fire Door Rope Gasket (SRV7034-177)SRV7034-177$65.00
#6Heatilator & Quadra-Fire Baffle - Cast Iron (SRV7034-263)SRV7034-263$281.00
#7Heatilator & Quadra-Fire Baffle Latch (SRV7034-149)SRV7034-149$15.00
#8.1Heatilator & Quadra-Fire Thermocouple Kit (SRV7034-247)SRV7034-247$157.00
#8.11Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Bottom (SRV7034-153)SRV7034-153$124.00
#8.2Quadra-Fire & Heatilator Eco-Choice Half Clip Thermocouple Holder (7000-321)7000-321$6.00
#8.3Heatilator & Quadra-Fire Thermocouple Cover (SRV7034-186)SRV7034-186$8.00
#8.4Heatilator & Quadra-Fire Firepot Assembly (SRV7034-072B)SRV7034-072B$202.00
#8.5Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Gasket (SRV7034-190)SRV7034-190$13.00
#8.6Heatilator & Quadra-Fire Auto Clean Plow Weldment (SRV7034-024)SRV7034-024$45.00
#8.7Heatilator & Quadra-Fire Auto Clean Plow Weldment (SRV7034-024)SRV7034-024$45.00
#8.8Heatilator & Quadra-Fire Auto Clean Rail (SRV7034-152)SRV7034-152$49.00
#8.9Quadra-Fire & Heatilator Eco-Choice Burn Pot Springs - 4 Pack (7000-513/4)7000-513/4$14.00
#9Quadra-Fire Edge 60 Door Assembly (SRV7051-019)SRV7051-019$269.00
#9.1Quadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#9.2Quadra-Fire Edge 60 Door Frame Assembly (SRV7051-020)SRV7051-020$339.00
#9.3HHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#9.4Quadra-Fire Door Latch Assembly (7034-039)7034-039$88.00
#9.5Quadra-Fire Door Glass Assembly with Gasket (SRV7034-007)SRV7034-007$366.00
#9.6Quadra-Fire & Heatilator Glass Retainer (SRV7034-136)SRV7034-136$67.00
#N/SHHT Hopper Lid Handle (SRV200-0110)SRV200-0110$12.00
#N/SQuadra-Fire Bottom Auto-Clean Assembly (7034-021)7034-021$210.00
#N/SQuadra-Fire Firepot Riser Clamp Assembly (7034-012)7034-012$114.00
#N/SQuadra-Fire Glass Gasket - 10 Feet (7000-377/10)7000-377/10$48.00
#N/SQuadra-Fire Door Corner Tape (SRV7027-227)SRV7027-227$37.00
#N/SHeatilator Eco-Choice & Quadra-Fire Twin Ball Catch & Striker (SRV7000-532)SRV7000-532$97.00
#N/SQuadra-Fire Mt. Vernon AE & Edge 60 Convection Blower Gasket (SRV7000-329)SRV7000-329$25.00
#N/SQuadra-Fire 15 Amp Slow IEC Glass Fuses - 10 Pack (7000-491/10)7000-491/10$41.00
#N/SQuadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire Control Board Bracket (7034-212)7034-212$67.00
#N/SQuadra-Fire Door Switch Bracket (7034-215)7034-215$64.00
#N/SQuadra-Fire Snap Disc Bracket (7034-150)7034-150$8.00
#N/SQuadra-Fire Vacuum Switch Bracket (7034-211)7034-211$10.00
#N/SQuadra-Fire Edge 60 Component Pack Assembly (SRV7051-050)SRV7051-050$569.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Conductor Thermostat Wire (SRV7000-409)SRV7000-409$57.00
#N/SHeatilator & Quadra-Fire AE/CE Wall Control (SRV7000-549)SRV7000-549$399.00
#N/S Heatilator & Quadra-Fire Fuel Level Sensor (SRV7000-523)SRV7000-523$168.00
#N/SQuadra-Fire Exhaust Gasket (SRV7034-109)SRV7034-109$14.00
#N/SQuadra-Fire Edge 60 Exhaust Adapter Gasket (SRV7051-105)SRV7051-105$50.00
#N/SQuadra-Fire Extruded Gasket - 10 Feet (7000-320/10)7000-320/10$45.00
#N/SHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#N/SHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#N/SQuadra-Fire 18" Loop Igniter - 300 Watt (SRV7000-647)SRV7000-647$50.00
#N/SQuadra-Fire 18" Loop Igniter - 300 Watt (SRV7000-647)SRV7000-647$50.00
#N/SQuadra-Fire & Heatilator Eco-Choice Ring Mount Thermocouple (SRV7000-381)SRV7000-381$106.00
#N/SQuadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#N/SQuadra-Fire & Heatilator Eco-Choice Vacuum Hose (SRV7000-373)SRV7000-373$57.00
#N/SQuadra-Fire & Heatilator Wire Harness (SRV7034-191)SRV7034-191$97.00
#N/SHeatilator & Quadra-Fire Convection Blower Wire Harness (SRV7034-219)SRV7034-219$37.00
#N/SQuadra-Fire & Heatilator Door/Hopper Wire Harness (SRV7034-192)SRV7034-192$62.00
#N/SQuadra-Fire Edge 60 Door/Interlock Wire Harness (SRV7051-113)SRV7051-113$61.00
#N/SQuadra-Fire & Heatilator Igniter Wire Harness (SRV7034-273)SRV7034-273$42.00
#N/SQuadra-Fire & Heatilator Wire Harness Power Out AC (SRV7034-220)SRV7034-220$19.00
#N/SHeatilator & Quadra-Fire DC Power Supply Wire Harness (SRV7034-221)SRV7034-221$42.00
#N/SHeatilator & Quadra-Fire Snap Disc Wire Harness (SRV7034-193)SRV7034-193$19.00
#N/SQuadra-Fire 12 Volt Power Cord (12VCORD-AE)12VCORD-AE$57.00
#N/SQuadra-Fire Edge 60 Decorative Front (DF-E60CUR-BK)DF-E60CUR-BK$1,080.00
#N/SHHT Rubber Bumpers - 3 Pack (SRV224-0340)SRV224-0340$14.00
#N/SQuadra-Fire Edge 60 Front Component Pack Assembly (SRV7051-058)SRV7051-058$47.00
#N/SQuadra-Fire Elbow Catch (7000-393)7000-393$35.00
#N/SQuadra-Fire Log Set (LOGS-60-AE-B)LOGS-60-AE-B$249.00
#N/SQuadra-Fire & Eco-Choice Outside Air Kit (OAK-3)OAK-3$149.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire 1/4-20 X 3/8" Screws - 24 Pack (7000-401/24)7000-401/24$23.00
#N/SQuadra-Fire 1/4-20 X 5/8" Screws - Pack of 24 (7000-398/24)7000-398/24$20.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SHeatilator & Quadra-Fire Philips Head Screws - 40 Pack (21799A/40)21799A/40$23.00
#N/SQuadra-Fire 8-32 x 3/4 Pan Head Screws - 24 Pack (229-1100/24)229-1100/24$21.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SPelPro & Quadra-Fire Plastic Wire Clip - 10 Pack (7000-400/10)7000-400/10$12.00
#N/S AHeatilator & Quadra-Fire Combustion Blower Motor Gasket (SRV7000-714)SRV7000-714$28.00
#N/S BHeatilator & Quadra-Fire Combustion Blower Motor Gasket (SRV7000-714)SRV7000-714$28.00
