Quadrafire MT Vernon Parts Diagram

Quadrafire MT Vernon Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire MT Vernon. This Pellet stove has 176 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Mt Vernon Hopper Top, Quadra-Fire Convection Snap Disc 125-20 (#1), Heatilator Eco-Choice & Quadra-Fire Manual Reset Snap Disc, Quadra-Fire & PelPro Manual Reset Snap Disc, and Quadra-Fire Manual Reset Snap Disc #3. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 176 replacement parts available.

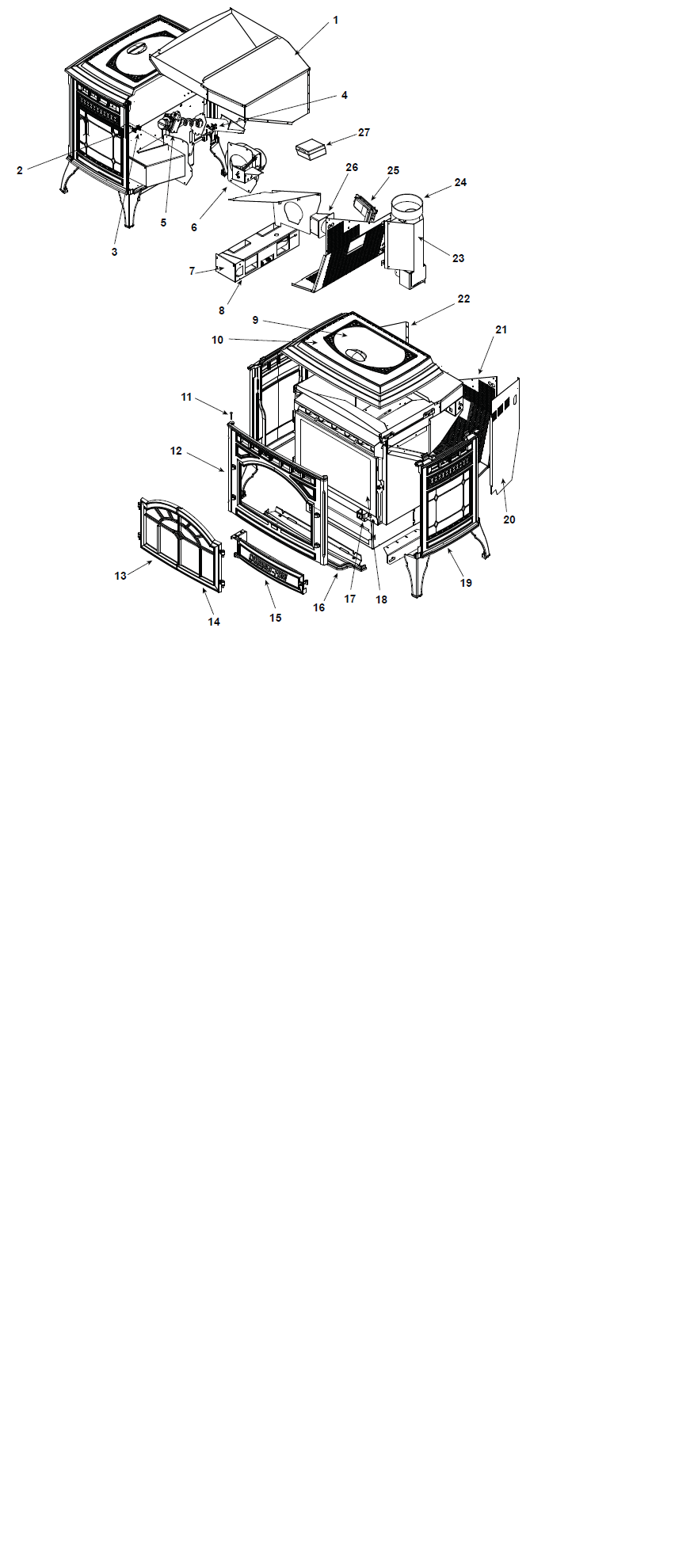

Quadrafire MT Vernon replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire Mt Vernon Hopper Top (7005-135) 7005-135$219.00
#11Quadra-Fire 1/4" x 1-1/4" Right Iron Rivet - 25 Pack (229-0090/25)229-0090/25$34.00
#12AQuadra-Fire Mt Vernon Front Face - Matte Black (7005-108MBK)7005-108MBK$959.00
#12DQuadra-Fire MT Vernon Front Face - Porcelain Mahogany (7005-108PMH)7005-108PMH$1,511.00
#13AQuadra-Fire Mt Vernon Left Door - Matte Black (7005-110MBK)7005-110MBK$527.00
#13DQuadra-Fire MT VERNON Left Door - Porcelain Mahogany (7005-110PMH)7005-110PMH$947.00
#14AQuadra-Fire Mt Vernon Right Door - Matte Black (7005-109MBK)7005-109MBK$431.00
#14DQuadra-Fire MT VERNON Right Door - Porcelain Mahogany (7005-109PMH)7005-109PMH$971.00
#16AQuadra-Fire Mt Vernon Ash Lip - Matte Black (7005-111MBK)7005-111MBK$325.00
#16DQuadra-Fire Ash Lip (7005-111PMH)7005-111PMH$560.00
#18AQuadra-Fire MT Vernon Door Assembly (7005-008)7005-008$550.00
#18BQuadra-Fire MT VERNON Roller Cam Door Assembly (7005-052)7005-052$449.00
#18CQuadra-Fire Mt Vernon Door Assembly W / Bottom Air Wash (7005-057)7005-057$415.00
#19AQuadra-Fire Side - Matte Black (7005-107MBK)7005-107MBK$946.00
#19DQuadra-Fire MT Vernon Side Plate - Porcelain Mahogany (7005-107PMH)7005-107PMH$1,413.00
#2Quadra-Fire Convection Snap Disc 125-20 (#1) (SRV230-0960)SRV230-0960$33.00
#20Quadra-Fire Mt Vernon Right Shroud (7005-164)7005-164$113.00
#22Quadra-Fire MT Vernon Left Shroud (7005-165)7005-165$125.00
#24Quadra-Fire & Eco-Choice Top Vent Offset Collar (812-3570)812-3570$169.00
#25 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#27Quadra-Fire MT Vernon 4-Speed Control Box (SRV7000-206)SRV7000-206$505.00
#3AHeatilator Eco-Choice & Quadra-Fire Manual Reset Snap Disc (SRV230-1960)SRV230-1960$19.00
#3BQuadra-Fire & PelPro Manual Reset Snap Disc (SRV230-0080)SRV230-0080$37.00
#4Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#5Quadra-Fire Feed Assembly (812-4760)812-4760$505.00
#6Quadra-Fire Mt. Vernon Combustion Blower (SRV7000-193)SRV7000-193$901.00
#N/SQuadra-Fire Feed / Auger System Nylon Bearing (SRV410-0552)SRV410-0552$12.00
#N/SQuadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#N/SHeatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#N/SHeatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#N/SQuadra-Fire Auger Motor Gasket (SRV240-0731)SRV240-0731$4.00
#N/SQuadra-Fire Mt Vernon Combustion Blower Motor Gasket (SRV7000-450)SRV7000-450$20.00
#N/SQuadra-Fire MT Vernon Combustion/Exhaust Blower Gasket (SRV7005-226)SRV7005-226$17.00
#N/SHHT 1/4" x 10' Black Rope Gasket (834-1460)834-1460$41.00
#N/SQuadra-Fire ARS Handle Assembly (SRV472-5060)SRV472-5060$104.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire Door Latch Assembly (SRV7021-006)SRV7021-006$43.00
#N/SQuadra-Fire Old Style Door Latch Assembly (SRV413-5200)SRV413-5200$46.00
#N/SQuadra-Fire Mt Vernon Door Rope Shield (SRV7005-271)SRV7005-271$50.00
#N/SQuadra-Fire Tadpole Gasket (842-5130)842-5130$38.00
#N/SQuadra-Fire Mt Vernon Door Glass Assembly W / Gasket (7005-058)7005-058$399.00
#N/SQuadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#N/SQuadra-Fire Mt. Vernon Rope Retainer (7005-268)7005-268$15.00
#N/SQuadra-Fire Door Corner Tape (SRV7027-227)SRV7027-227$37.00
#N/SQuadra-Fire Mt Vernon Scraper Rod and Brick Upgrade Kit (Scraper-MV)Scraper-MV$664.00
#N/SQuadra-Fire Mt Vernon Back Baffle Assembly (7005-070)7005-070$150.00
#N/SQuadra-Fire MT Vernon Baffle Cam (7005-281)7005-281$19.00
#N/SQuadra-Fire MT Vernon Milled Baffle Assembly - Left Side (SRV7005-288)SRV7005-288$60.00
#N/SQuadra-Fire Mt Vernon Top Baffle Assembly (7005-069)7005-069$260.00
#N/SQuadra-Fire Mt Vernon Right Side Milled Baffle Assembly (SRV7005-208)SRV7005-208$85.00
#N/SQuadra-Fire Snap Disc Bracket (SRV7005-253)SRV7005-253$8.00
#N/SQuadra-Fire Fluorescent Call Light - Newer Junction Box (SRV7000-122)SRV7000-122$58.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SQuadra-Fire Feed Adjustment Plate (SRV7001-182)SRV7001-182$76.00
#N/SQuadra-Fire Mt Vernon Firepot / Burn Pot Assembly (SRV7005-067)SRV7005-067$589.00
#N/SQuadra-Fire EZ Clean Firepot Bushing (410-8320)410-8320$7.00
#N/SQuadra-Fire EZ Clean Firepot Floor (414-0290)414-0290$79.00
#N/SQuadra-Fire Oval Firepot Gasket (SRV240-0930)SRV240-0930$19.00
#N/SQuadra-Fire & Heatilator Eco-Choice Junction Box 7 Amp Fuses - 10 Pack (812-0380/10)812-0380/10$21.00
#N/SQuadra-Fire Control Box .5 Amp Fuses (10 Pack) (812-0370/10)812-0370/10$45.00
#N/SQuadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)SRV230-0810$38.00
#N/SQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (844-5750)844-5750$25.00
#N/SPelPro & Quadra-Fire Hinge Pins - 2 Pack (433-1590/2)433-1590/2$30.00
#N/SQuadra-Fire Castile & MT Vernon Rivets - 25 Pack (25272/25)25272/25$32.00
#N/SQuadra-Fire Male Door Hinge (SRV450-2810)SRV450-2810$44.00
#N/SHHT 5/32" ID Vacuum Hose (SRV240-0450)SRV240-0450$53.00
#N/SHeat N Glo & Quadra-Fire Leveling Assembly (SRV7000-000)SRV7000-000$22.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Touch Up Paint - Porcelain Mahogany (855-1450)855-1450$30.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire EZ Clean Firepot Linkage Spring (200-2050)200-2050$7.00
#N/SQuadra-Fire Mt Vernon Reset Button (SRV7000-121)SRV7000-121$15.00
#N/SQuadra-Fire Mt Vernon 4 Position Switch / Heat Output Control Knob (SRV7000-128)SRV7000-128$22.00
#N/SQuadra-Fire & Heatilator Eco-Choice 14" Thermocouple (812-4470)812-4470$89.00
#N/SQuadra-Fire Thermocouple Clamp (SRV7001-203)SRV7001-203$81.00
#N/SQuadra-Fire Thermocouple Cover (812-1322)812-1322$8.00
#N/SQuadra-Fire Thermostat Term DV Block (SRV230-0690)SRV230-0690$52.00
#N/SQuadra-Fire Igniter Extension (7000-218)7000-218$14.00
#N/SQuadra-Fire Mt Vernon Log Set - 3 Piece (LOGS-7005)LOGS-7005$274.00
#N/SQuadra-Fire Mt Vernon Top Log (TPLOG-7005)TPLOG-7005$123.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Kit - Rear Mount (811-0872)811-0872$149.00
#N/SQuadra-Fire Air Intake Channel (SRV413-7040)SRV413-7040$83.00
#N/SQuadra-Fire Outside Air Kit Floor Cover (SRV411-1071)SRV411-1071$47.00
#N/SQuadra-Fire 2" x 3' Aluminum Flex Hose (SRV200-0860)SRV200-0860$48.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Cap Assembly (SRV7001-044)SRV7001-044$46.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Collar Assembly (SRV7001-045)SRV7001-045$71.00
#N/SQuadra-Fire Outside Air Kit Trim Plate (SRV412-7100)SRV412-7100$12.00
#N/SQuadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)841-0960$229.00
#N/SHeatilator Eco-Choice & Quadra-Fire Mechanical Thermostat (812-3760)812-3760$162.00
#N/SHHT Programmable Thermostat with Wire (PROG-STAT)PROG-STAT$247.00
#N/SQuadra-Fire Rear Vent Adapter W / Cleanout (811-0620)811-0620$229.00
#N/SQuadra-Fire Warming Shelves With Brackets (844-9780)844-9780$260.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SQuadra-Fire & Heat N Glo Keps Lock Nuts (226-0060/40)226-0060/40$23.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire Wing Nut - 24 Pack (226-0160/24)226-0160/24$32.00
#N/SQuadra-Fire 1/4-20" Screws - 24 Pack (7000-130/24)7000-130/24$35.00
#N/SQuadra-Fire 1/4-20 X 3/8" Screws - 24 Pack (7000-401/24)7000-401/24$23.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SHeat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#N/SHeatilator & Quadra-Fire Philips Head Screws - 40 Pack (21799A/40)21799A/40$23.00
#N/SQuadra-Fire 8-32 x 3/4 Pan Head Screws - 24 Pack (229-1100/24)229-1100/24$21.00
#N/SQuadra-Fire Thumb Screws (844-5070)844-5070$45.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
