Quadrafire Santa Fe Pre 4/09 Parts Diagram

Quadrafire Santa Fe Pre 4/09 Interactive Parts Finder

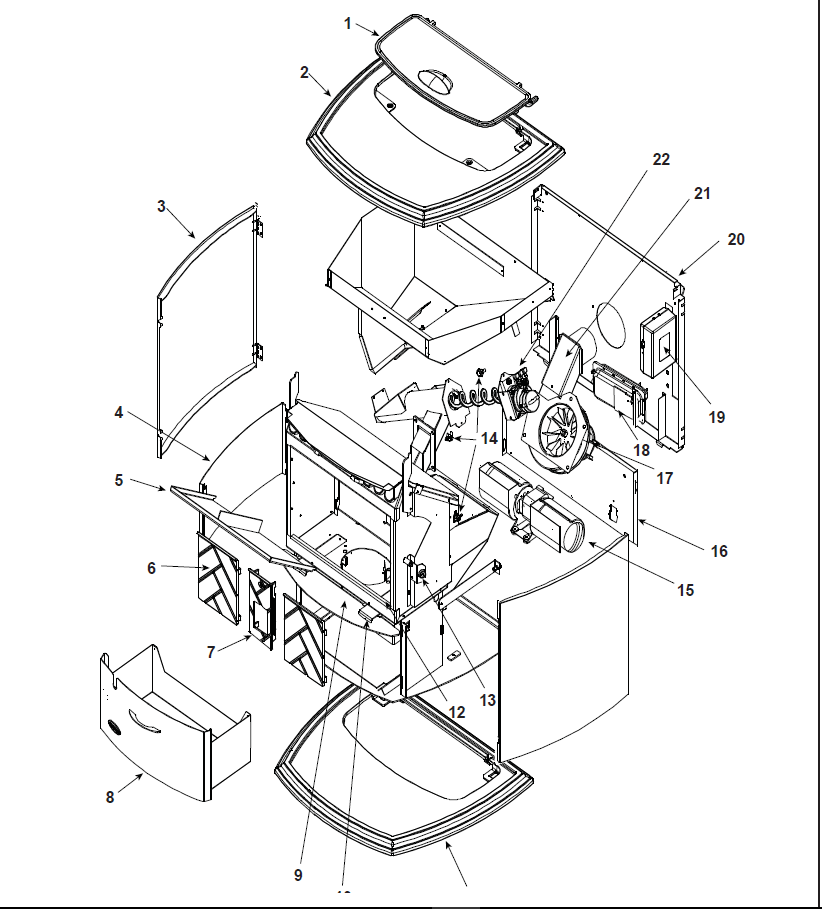

Find the exact replacement parts you need for your Quadrafire Santa Fe Pre 4/09. This Pellet stove has 121 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Hopper Lid Assembly, Quadra-Fire Santa-Fe Hopper Lid - Painted, Quadra-Fire Cast Hopper Lid Hinge Stop, Quadra-Fire SANTA-FE Top Assembly, and HHT Rubber Bumpers - 3 Pack. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 121 replacement parts available.

Quadrafire Santa Fe Pre 4/09 replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire Hopper Lid Assembly (7001-007)7001-007$159.00
#10Quadra-Fire Castile & Santa Fe Ash Cleanout Plate (SRV7001-186)SRV7001-186$14.00
#12Quadra-Fire Bottom Air Wash Deflector (SRV413-0680)SRV413-0680$67.00
#13Quadra-Fire Santa Fe Magnet Latch Bracket (7001-175)7001-175$12.00
#14AHeatilator Eco-Choice & Quadra-Fire 110-20 Snap Disc (SRV230-1220)SRV230-1220$28.00
#14BHeatilator Eco-Choice & Quadra-Fire Manual Reset Snap Disc (SRV230-1960)SRV230-1960$19.00
#14CQuadra-Fire Snap Disc #2 - 250 Degree (SRV7000-268)SRV7000-268$57.00
#15HHT Convection Blower (812-4900)812-4900$245.00
#16Quadra-Fire Santa Fe Pedestal Back (SRV7001-118)SRV7001-118$147.00
#17Quadra-Fire, PelPro & Heatilator Eco-Choice Exhaust Blower Motor (812-4400)812-4400$153.00
#18 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#19Quadra-Fire 3 Speed Control Board (SRV7000-704)SRV7000-704$337.00
#2Quadra-Fire SANTA-FE Top Assembly (7001-016)7001-016$229.00
#20Quadra-Fire Santa-Fe Back (SRV7001-173)SRV7001-173$219.00
#21Quadra-Fire Santa Fe Exhaust Transition Assembly (SRV7001-009)SRV7001-009$120.00
#22Quadra-Fire Feed Assembly (812-4760)812-4760$505.00
#22.1HHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#22.2Heatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#22.3Quadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#22.4Quadra-Fire Feed / Auger System Nylon Bearing (SRV410-0552)SRV410-0552$12.00
#22.6Quadra-Fire Auger Motor Gasket (SRV240-0731)SRV240-0731$4.00
#22.7Heatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#22.8Quadra-Fire Auger Set Screws - 25 Pack (225-0550/25)225-0550/25$35.00
#3Quadra-Fire Santa-Fe Side Curtain Assembly (7001-008)7001-008$239.00
#3AQuadra-Fire Santa Fe Side Curtain Assembly (SRV7001-023)SRV7001-023$381.00
#4Quadra-Fire Santa-Fe Pedestal Side Curtain - Pre 4/09 (SRV7001-169)SRV7001-169$74.00
#5Quadra-Fire Airflow Baffle Upgrade (UK-30KPEL)UK-30KPEL$249.00
#6Quadra-Fire Castile & Santa Fe Side Brick (SRV414-0270)SRV414-0270$128.00
#7Quadra-Fire Castile & SantaFe Cast Brick - Center (SRV414-0260)SRV414-0260$143.00
#8Quadra-Fire Santa Fe Ash Pan Assembly (7001-004)7001-004$98.00
#9Quadra-Fire Santa-Fe Ash Catcher (SRV7001-116)SRV7001-116$108.00
#N/SQuadra-Fire Santa-Fe Hopper Lid - Painted (SRV7001-129)SRV7001-129$159.00
#N/SQuadra-Fire Cast Hopper Lid Hinge Stop (SRV7001-131)SRV7001-131$47.00
#N/SHHT Rubber Bumpers - 3 Pack (SRV224-0340)SRV224-0340$14.00
#N/SHHT Combustion / Exhaust Blower Motor Housing Gasket (SRV240-0812)SRV240-0812$10.00
#N/SQuadra-Fire, PelPro & Heatilator Eco-Choice Combustion Blower Gasket - Round (812-4710)812-4710$34.00
#N/SQuadra-Fire EZ Clean Firepot Assembly (SRV414-5200)SRV414-5200$336.00
#N/SQuadra-Fire EZ Clean Firepot Bushing (410-8320)410-8320$7.00
#N/SQuadra-Fire EZ Clean Firepot Floor (414-0290)414-0290$79.00
#N/SQuadra-Fire Oval Firepot Gasket (SRV240-0930)SRV240-0930$19.00
#N/SQuadra-Fire SANTA-FE Pull Rod Assembly (7001-010)7001-010$87.00
#N/SQuadra-Fire EZ Clean Firepot Linkage Spring (200-2050)200-2050$7.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#N/SHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#N/SQuadra-Fire Thermocouple Clamp (SRV7001-203)SRV7001-203$81.00
#N/SQuadra-Fire & Heatilator Eco-Choice 14" Thermocouple (812-4470)812-4470$89.00
#N/SQuadra-Fire SANTA-FE Front Face - Pre 4/09 (7001-026)7001-026$169.00
#N/SQuadra-Fire SANTA-FE Face Assembly (7001-024)7001-024$439.00
#N/SQuadra-Fire SANTA-FE Door Assembly (7001-031)7001-031$379.00
#N/SQuadra-Fire SANTA-FE Door Assembly (7001-035)7001-035$379.00
#N/SQuadra-Fire SANTA-FE Door Latch Assembly (7001-042)7001-042$36.00
#N/SQuadra-Fire Santa Fe & Castile Door Glass Assembly (SRV7001-038)SRV7001-038$281.00
#N/SQuadra-Fire Tadpole Gasket (842-5130)842-5130$38.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire Rope Retainer (SRV7001-192)SRV7001-192$19.00
#N/SQuadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#N/SQuadra-Fire Santa Fe PEM Stud - 24 Pack (229-0130/24)229-0130/24$29.00
#N/SQuadra-Fire Door Corner Tape (SRV7027-227)SRV7027-227$37.00
#N/SQuadra-Fire Snap Disc Bracket (SRV7005-253)SRV7005-253$8.00
#N/SQuadra-Fire Component Pack Assembly (7001-012)7001-012$183.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)SRV230-0810$38.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire Feed Adjustment Plate (SRV7001-182)SRV7001-182$76.00
#N/SQuadra-Fire & Heatilator Eco-Choice Junction Box 7 Amp Fuses - 10 Pack (812-0380/10)812-0380/10$21.00
#N/SQuadra-Fire .8 Amp Fuse - Control Box - 10 Pack (812-3780/10)812-3780/10$40.00
#N/SQuadra-Fire Male Door Hinge (SRV450-2810)SRV450-2810$44.00
#N/SHHT 5/32" ID Vacuum Hose (SRV240-0450)SRV240-0450$53.00
#N/SQuadra-Fire Igniter Wire with Wire Nuts (812-4520)812-4520$213.00
#N/SQuadra-Fire Log Set (LOGS-30-OE)LOGS-30-OE$309.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire Santa Fe Scraper Repair Kit (SCRAPER-SF)SCRAPER-SF$89.00
#N/SQuadra-Fire Heat Output Rocker Switch - 3 Way (812-3500)812-3500$77.00
#N/SQuadra-Fire Junction Box & Wire Harness (SRV7001-194)SRV7001-194$294.00
#N/SQuadra-Fire Igniter Extension (7000-218)7000-218$14.00
#N/SQuadra-Fire Snap Disk Wire Harness (SRV7001-224)SRV7001-224$21.00
#N/SQuadra-Fire & Eco-Choice Top Vent Offset Collar (812-3570)812-3570$169.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Kit - Rear Mount (811-0872)811-0872$149.00
#N/SQuadra-Fire Air Intake Channel (SRV413-7040)SRV413-7040$83.00
#N/SQuadra-Fire Outside Air Kit Floor Cover (SRV411-1071)SRV411-1071$47.00
#N/SQuadra-Fire 2" x 3' Aluminum Flex Hose (SRV200-0860)SRV200-0860$48.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Cap Assembly (SRV7001-044)SRV7001-044$46.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Collar Assembly (SRV7001-045)SRV7001-045$71.00
#N/SQuadra-Fire Outside Air Kit Trim Plate (SRV412-7100)SRV412-7100$12.00
#N/SQuadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)841-0960$229.00
#N/SHeatilator Eco-Choice & Quadra-Fire Mechanical Thermostat (812-3760)812-3760$162.00
#N/SHHT Programmable Thermostat with Wire (PROG-STAT)PROG-STAT$247.00
#N/SQuadra-Fire Castile & Santa Fe Vertical Adapter Kit (TPVNT-2)TPVNT-2$133.00
#N/SQuadra-Fire 3"- 4" Offset Vent Adapter (811-0720)811-0720$169.00
#N/SQuadra-Fire & Heatilator Eco-Choice Top Vertical Adapter and Cleanout (TPVNT-6)TPVNT-6$139.00
#N/SQuadra-Fire Rear Vent Adapter W / Cleanout (811-0620)811-0620$229.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SQuadra-Fire Capped Push Nut - 24 Pack (7000-157/24)7000-157/24$31.00
#N/SQuadra-Fire Wing Nut - 24 Pack (226-0160/24)226-0160/24$32.00
#N/SQuadra-Fire 1/4" x 1-1/4" Right Iron Rivet - 25 Pack (229-0090/25)229-0090/25$34.00
#N/SQuadra-Fire 1/4-20 X 3/8" Screws - 24 Pack (7000-401/24)7000-401/24$23.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SHeat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SQuadra-Fire Santa Fe PEM Stud - 24 Pack (229-0130/24)229-0130/24$29.00
#N/SQuadra-Fire Thumb Screws (844-5070)844-5070$45.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
#N/SHHT 3/8 SAE Washer Set - 3 Pack (832-0990)832-0990$23.00
