Quadrafire Yosemite Wood Parts Diagram

Quadrafire Yosemite Wood Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Yosemite Wood. This Wood stove has 80 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Yosemite Top - Matte Black, Quadra-Fire Yosemite Top - Porcelain Mahogany, Quadra-Fire Yosemite Left Side - Matte Black, Quadra-Fire Yosemite Left Side - Porcelain Mahogany, and HHT Ceramic Blanket - 1/2" Thick. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 80 replacement parts available.

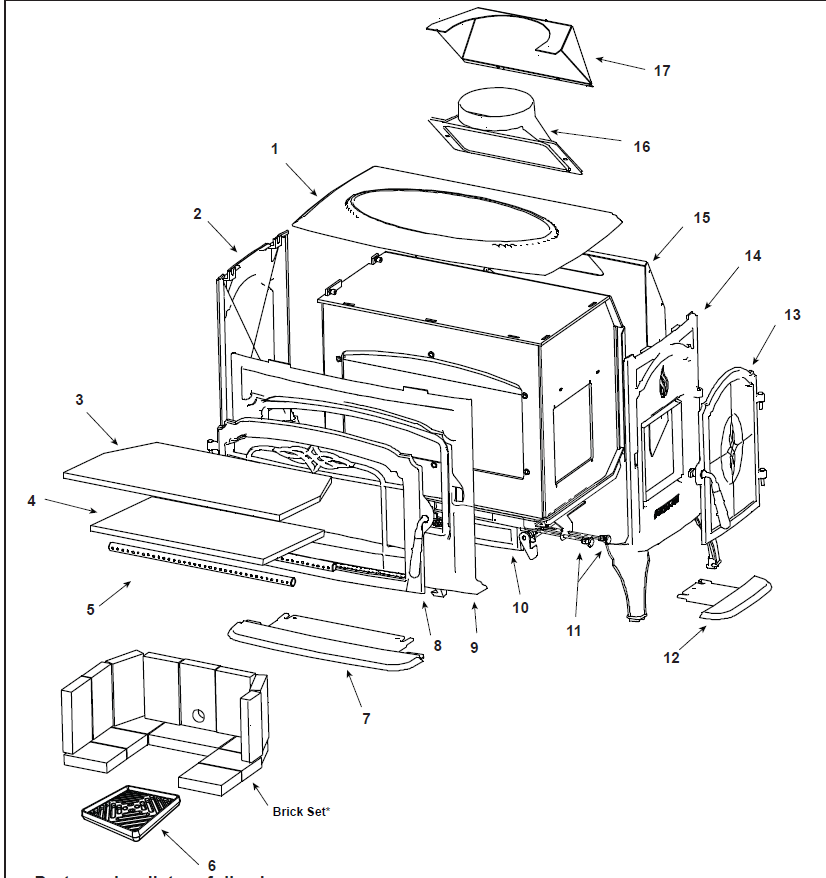

Quadrafire Yosemite Wood replacement parts diagram
Part #Part NamePart CodePrice
#10Quadra-Fire Yosemite Ash Removal System Door Assembly (SRV7004-006)SRV7004-006$289.00
#11Quadra-Fire Knobs (32284/2)32284/2$31.00
#12AQuadra-Fire Yosemite Side Ash Lip - Matte Black (7004-139MBK)7004-139MBK$138.00
#12BQuadra-Fire Yosemite Side Ash Lip - Porcelain Mahogany (7004-139PMH)7004-139PMH$419.00
#13AQuadra-Fire Yosemite Side Door Assembly - Matte Black (7004-004MBK)7004-004MBK$911.00
#13BQuadra-Fire Yosemite Side Door Assembly - Porcelain Mahogany (7004-004PMH)7004-004PMH$1,223.00
#14AQuadra-Fire Yosemite Right Side - Matte Black (7004-131MBK)7004-131MBK$551.00
#15Quadra-Fire Yosemite Back Shield (7004-144)7004-144$179.00
#16Quadra-Fire Yosemite Transition Elbow (7004-129)7004-129$168.00
#17Quadra-Fire Yosemite Vertical Flue Heat Shield (7004-196)7004-196$25.00
#18Quadra-Fire Yosemite Brick Assembly - Pre SN 1750842 (SRV7004-028)SRV7004-028$229.00
#1AQuadra-Fire Yosemite Top - Matte Black (7004-133MBK)7004-133MBK$635.00
#1BQuadra-Fire Yosemite Top - Porcelain Mahogany (7004-133PMH)7004-133PMH$681.00
#2AQuadra-Fire Yosemite Left Side - Matte Black (7004-136MBK)7004-136MBK$395.00
#2BQuadra-Fire Yosemite Left Side - Porcelain Mahogany (7004-136PMH)7004-136PMH$639.00
#3HHT Ceramic Blanket - 1/2" Thick (832-3390)832-3390$82.00
#4Quadra-Fire Yosemite Fiberboard Baffle (BAFFLE-7004)BAFFLE-7004$191.00
#5Quadra-Fire Yosemite Manifold Tube Set (TUBES-7004)TUBES-7004$270.00
#6Quadra-Fire Cumberland Gap & Yosemite Ash Grate (7006-211)7006-211$235.00
#7AQuadra-Fire Yosemite Front Ash Lip - Matte Black (7004-140MBK)7004-140MBK$323.00
#7BQuadra-Fire Yosemite Front Ash Lip - Porcelain Mahogany (7004-140PMH)7004-140PMH$491.00
#8AQuadra-Fire Yosemite Front Door - Matte Black (7004-132MBK)7004-132MBK$545.00
#8BQuadra-Fire Yosemite Front Door - Porcelain Mahogany (SRV7004-132PMH)SRV7004-132PMH$1,079.00
#9AQuadra-Fire Yosemite Front Face - Matte Black (SRV7004-130MBK)SRV7004-130MBK$587.00
#9BQuadra-Fire Yosemite Front Face - Porcelain Mahogany (SRV7004-130PMH)SRV7004-130PMH$1,307.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
#N/SQuadra-Fire Yosemite Brick with Hole (SRV7004-199)SRV7004-199$77.00
#N/SHHT Single Brick (832-0550)832-0550$30.00
#N/SHHT Outside Air Shield (SRV33271)SRV33271$43.00
#N/SHeatilator Eco-Choice & Quadra-Fire Outside Air Collar Assembly (SRV7033-039)SRV7033-039$12.00
#N/SQuadra-Fire Yosemite Complete Brick Assembly (BRICK-7004)BRICK-7004$369.00
#N/SHHT Single Brick - Set of 6 (832-3040)832-3040$98.00
#N/SHHT Single Brick - Set of 6 (832-3040)832-3040$98.00
#N/SHHT Single Brick (832-0550)832-0550$30.00
#N/SQuadra-Fire Yosemite Brick with Hole (SRV7004-199)SRV7004-199$77.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Touch Up Paint - Porcelain Mahogany (855-1450)855-1450$30.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SHeat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#N/SHeatilator & Quadra-Fire Philips Head Screws - 40 Pack (21799A/40)21799A/40$23.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SQuadra-Fire Isle Royale & Yosemite Teflon Washer (844-0460)844-0460$88.00
#N/SQuadra-Fire Fiber Door Handle (SRV433-1380)SRV433-1380$55.00
#N/SHeat N Glo & Quadra-Fire Manifold Tube Clip Set (832-0661)832-0661$45.00
#N/SQuadra-Fire Yosemite Door Handle Assembly - Gold (7004-019)7004-019$219.00
#N/SQuadra-Fire YOSEMITE Door Handle Assembly (7004-020)7004-020$239.00
#N/SQuadra-Fire Fiber Door Handle (SRV433-1380)SRV433-1380$55.00
#N/SQuadra-Fire Ash Removal System Rope Gasket (SRV7000-134)SRV7000-134$65.00
#N/SQuadra-Fire Ash Removal System Handle (472-5060)472-5060$20.00
#N/SQuadra-Fire Yosemite ARS Door Hinge (7004-159)7004-159$8.00
#N/SQuadra-Fire Ash Removal System Latch (7004-160)7004-160$10.00
#N/SHHT Door Gasket - 1/2" x 10' (834-4170)834-4170$66.00
#N/SQuadra-Fire Yosemite Side Door Heat Shield Assembly (SRV7004-207)SRV7004-207$191.00
#N/SQuadra-Fire Yosemite Side Door Lock (7004-198)7004-198$12.00
#N/SQuadra-Fire Yosemite Door Handle Assembly - Gold (7004-019)7004-019$219.00
#N/SQuadra-Fire YOSEMITE Door Handle Assembly (7004-020)7004-020$239.00
#N/SHeat N Glo & Quadra-Fire Leveling Assembly (SRV7000-000)SRV7000-000$22.00
#N/SHHT 1/4" x 10' Black Rope Gasket (834-1460)834-1460$41.00
#N/SQuadra-Fire Yosemite Air Deflector (7004-181)7004-181$72.00
#N/SQuadra-Fire YOSEMITE Ash Pan (7004-155)7004-155$114.00
#N/SQuadra-Fire Blower Cord with Speed Control (821-0110)821-0110$299.00
#N/SHHT Convection Blower (812-4900)812-4900$245.00
#N/SQuadra-Fire Yosemite Component Pack Assembly - Matte Black (7004-016)7004-016$172.00
#N/SQuadra-Fire Yosemite Glass Assembly (SRV7004-025)SRV7004-025$210.00
#N/SQuadra-Fire Yosemite Glass Tab (7004-204)7004-204$10.00
#N/SHHT Lytherm Gasket (834-2590)834-2590$30.00
#N/SQuadra-Fire Yosemite Heat Shield (7004-151)7004-151$73.00
#N/SQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (844-5750)844-5750$25.00
#N/SPelPro & Quadra-Fire Hinge Pins - 2 Pack (433-1590/2)433-1590/2$30.00
#N/SHeat N Glo, Heatilator, & Quadra-Fire Air Control Latch Magnet (SRV229-0631)SRV229-0631$12.00
