Quadrfire Mt Vernon AE Insert pellet Parts Diagram

Quadrfire Mt Vernon AE Insert pellet Interactive Parts Finder

Find the exact replacement parts you need for your Quadrfire Mt Vernon AE Insert pellet. This Pellet insert has 206 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Hopper Lid - Matte Black, Quadra-Fire Hopper Lid - Sienna Bronze, Quadra-Fire Hopper Lid - Porcelain Magogany, Quadra-Fire Top Hinge Assembly, and Quadra-Fire Top - Matte Black. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 206 replacement parts available.

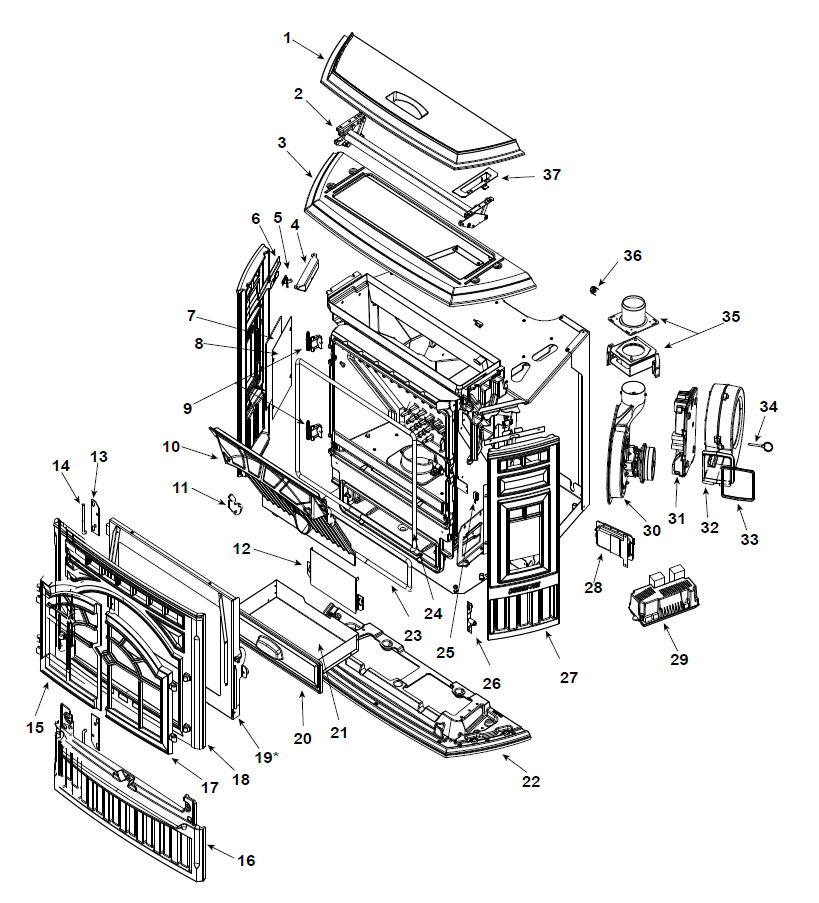

Quadrfire Mt Vernon AE Insert pellet replacement parts diagram
Part #Part NamePart CodePrice
#10Heatilator & Quadra-Fire Baffle - Cast Iron (SRV7034-263)SRV7034-263$281.00
#11Heatilator & Quadra-Fire Baffle Latch (SRV7034-149)SRV7034-149$15.00
#12Heatilator & Quadra-Fire Intake Shield (SRV7034-224)SRV7034-224$12.00
#13Quadra-Fire Hinge Pin Retainer (SRV7036-112)SRV7036-112$42.00
#14Quadra-Fire Hinge Pin (SRV7036-110)SRV7036-110$56.00
#15AQuadra-Fire Mt Vernon Left Door - Matte Black (7005-110MBK)7005-110MBK$527.00
#15BQuadra-Fire Mt Vernon Left Door - Sienna Bronze (7005-110CSB)7005-110CSB$635.00
#15DQuadra-Fire MT VERNON Left Door - Porcelain Mahogany (7005-110PMH)7005-110PMH$947.00
#16AQuadra-Fire Lower Front - Matte Black (7036-122MBK)7036-122MBK$399.00
#16BQuadra-Fire Lower Front - Sienna Bronze (7036-122CSB)7036-122CSB$635.00
#16DQuadra-Fire MT VERNON Lower Front - Porcelain Mahogany (7036-122PMH)7036-122PMH$911.00
#17AQuadra-Fire Mt Vernon Right Door - Matte Black (7005-109MBK)7005-109MBK$431.00
#17BQuadra-Fire Mt Vernon Right Door - Sienna Bronze (7005-109CSB)7005-109CSB$635.00
#17DQuadra-Fire MT VERNON Right Door - Porcelain Mahogany (7005-109PMH)7005-109PMH$971.00
#18AQuadra-Fire Upper Front - Matte Black (7036-105MBK)7036-105MBK$815.00
#18BQuadra-Fire Upper Front - Sienna Bronze (7036-105CSB)7036-105CSB$947.00
#18DQuadra-Fire Upper Front - Porcelain Mahogany (7036-105PMH)7036-105PMH$1,415.00
#19Quadra-Fire MT VERNON AE Door Assembly (7034-006)7034-006$524.00
#19.1Quadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#19.2Quadra-Fire MT VERNON-AE Door Air Deflector (7034-185)7034-185$40.00
#19.3Quadra-Fire Mt Vernon AE Magnet Bracket Assembly (7034-008)7034-008$54.00
#19.4Quadra-Fire Mt Vernon AE Door Frame Assembly (7034-026)7034-026$133.00
#19.5Quadra-Fire Door Latch Assembly (7034-039)7034-039$88.00
#19.6Quadra-Fire Door Glass Assembly with Gasket (SRV7034-007)SRV7034-007$366.00
#19.7Quadra-Fire & Heatilator Glass Retainer (SRV7034-136)SRV7034-136$67.00
#1AQuadra-Fire Hopper Lid - Matte Black (7036-107MBK)7036-107MBK$503.00
#1BQuadra-Fire Hopper Lid - Sienna Bronze (7036-107CSB)7036-107CSB$623.00
#1DQuadra-Fire Hopper Lid - Porcelain Magogany (7036-107PMH)7036-107PMH$835.00
#2Quadra-Fire Top Hinge Assembly (SRV7036-006)SRV7036-006$124.00
#20Quadra-Fire & Heatilator Ash Pan Door (SRV7034-133)SRV7034-133$195.00
#21Quadra-Fire & Heatilator Ash Pan Assembly (SRV7034-069)SRV7034-069$252.00
#22AQuadra-Fire Bottom (7036-109MBK)7036-109MBK$395.00
#22BQuadra-Fire Bottom - Sienna Bronze (7036-109CSB)7036-109CSB$635.00
#22DQuadra-Fire Bottom - Porcelain Mahogany (7036-109PMH)7036-109PMH$772.00
#23Heatilator & Quadra-Fire Ash Door Gasket (SRV7034-178)SRV7034-178$65.00
#24Heatilator & Quadra-Fire Door Rope Gasket (SRV7034-177)SRV7034-177$65.00
#25Quadra-Fire & Heatilator Eco-Choice Magnetic Hopper Lid Switch (SRV7000-375)SRV7000-375$30.00
#26Quadra-Fire & Heatilator Latch Bracket Assembly (SRV7034-049)SRV7034-049$25.00
#27AQuadra-Fire Insert Side - Matte Black (7036-103MBK)7036-103MBK$389.00
#27BQuadra-Fire Side - Sienna Bronze (7036-103CSB)7036-103CSB$659.00
#27DQuadra-Fire Side - Porcelain Mahogany (7036-103PMH)7036-103PMH$725.00
#28 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#29Heatilator & Quadra-Fire DC Power Supply Assembly (SRV7000-443)SRV7000-443$368.00
#30Quadra-Fire Combustion / Exhaust Blower Motor (SRV7034-033)SRV7034-033$262.00
#31Heatilator & Quadra-Fire Control Board Assembly (SRV7000-456)SRV7000-456$969.00
#32Quadra-Fire Mt. Vernon AE and Edge 60 Convection Blower (SRV7000-260)SRV7000-260$368.00
#33Quadra-Fire Mt. Vernon AE & Edge 60 Convection Blower Gasket (SRV7000-329)SRV7000-329$25.00
#34Quadra-Fire MT VERNON Detent Pin (7000-376)7000-376$7.00
#35Quadra-Fire Exhaust Transition (SRV7036-029)SRV7036-029$178.00
#36Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#37Quadra-Fire Hopper Magnet Bracket (SRV7036-149)SRV7036-149$52.00
#38Quadra-Fire Mt. Vernon AE & Edge 60 Feed Assembly (SRV7034-004)SRV7034-004$461.00
#38.1Heatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#38.2Heatilator & Quadra-Fire Nylon Auger Bearing (SRV7000-598)SRV7000-598$62.00
#38.3Heailator & Quadra-Fire Feed Motor Gasket (SRV7034-144)SRV7034-144$17.00
#38.5Quadra-Fire & Heatilator Optical Switch Assembly (SRV7034-038)SRV7034-038$168.00
#38.6Quadra-Fire Edge 60 & MT Vernon-AE Auger Motor (SRV7000-313)SRV7000-313$258.00
#39Quadra-Fire Firepot Riser Assembly (SRV7034-002)SRV7034-002$779.00
#39.1Heatilator & Quadra-Fire Thermocouple Kit (SRV7034-247)SRV7034-247$157.00
#39.11Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Bottom (SRV7034-153)SRV7034-153$124.00
#39.2Quadra-Fire & Heatilator Eco-Choice Half Clip Thermocouple Holder (7000-321)7000-321$6.00
#39.3Heatilator & Quadra-Fire Thermocouple Cover (SRV7034-186)SRV7034-186$8.00
#39.4Heatilator & Quadra-Fire Firepot Assembly (SRV7034-072B)SRV7034-072B$202.00
#39.5Quadra-Fire & Heatilator Eco-Choice Burnpot / Firepot Gasket (SRV7034-190)SRV7034-190$13.00
#39.6Heatilator & Quadra-Fire Auto Clean Link Arm (7034-176)7034-176$14.00
#39.7Heatilator & Quadra-Fire Auto Clean Plow Weldment (SRV7034-024)SRV7034-024$45.00
#39.8Heatilator & Quadra-Fire Auto Clean Rail (SRV7034-152)SRV7034-152$49.00
#39.9Quadra-Fire & Heatilator Eco-Choice Burn Pot Springs - 4 Pack (7000-513/4)7000-513/4$14.00
#3AQuadra-Fire Top - Matte Black (7036-101MBK)7036-101MBK$649.00
#3BQuadra-Fire Top - Sienna Bronze (7036-101CSB)7036-101CSB$767.00
#3DQuadra-Fire Top - Porcelain Mahogany (7036-101PMH)7036-101PMH$1,139.00
#4Quadra-Fire Catch Clip (SRV7036-146)SRV7036-146$48.00
#40Quadra-Fire Firepot Riser Clamp Assembly (7034-012)7034-012$114.00
#40.1Quadra-Fire MT Vernon-AE Auto-Clean Lever (7034-158)7034-158$45.00
#40.2Quadra-Fire Mt Vernon AE & Edge 60 Micro Switch (SRV7000-327)SRV7000-327$14.00
#40.3Heatilator & Quadra-Fire Auto-Clean Gear Motor - 12 Volt (SRV7000-502)SRV7000-502$147.00
#40.4Quadra-Fire Auto Clean Motor Grommet (7034-188)7034-188$10.00
#40.5Quadra-Fire Mt. Vernon AE and Edge 60 Auto Clean Cam (SRV7034-187)SRV7034-187$40.00
#40.6Quadra-Fire Auto Clean Bearing (7000-333)7000-333$13.00
#40.7Heatilator & Quadra-Fire Auto Clean Gasket (SRV7034-165)SRV7034-165$14.00
#5Quadra-Fire Elbow Catch (7000-393)7000-393$35.00
#6Quadra-Fire Catch Bracket (SRV7036-145)SRV7036-145$40.00
#7Quadra-Fire Side Glass Assembly with Gasket (SRV414-5380)SRV414-5380$70.00
#8Quadra-Fire Side Window Backer (SRV414-0280)SRV414-0280$20.00
#9Heatilator & Quadra-Fire Male Hinge (SRV7034-138)SRV7034-138$48.00
#N/SQuadra-Fire Extruded Gasket - 10 Feet (7000-320/10)7000-320/10$45.00
#N/SQuadra-Fire Glass Gasket - 10 Feet (7000-377/10)7000-377/10$48.00
#N/SQuadra-Fire 5/16 Speed Nut (7000-422/24)7000-422/24$25.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire Glass Gasket - 10 Feet (7000-377/10)7000-377/10$48.00
#N/SQuadra-Fire Door Corner Tape (SRV7027-227)SRV7027-227$37.00
#N/SQuadra-Fire Mt Vernon AE Ash Pan Roller Catch - Pack of 2 (SRV7000-494)SRV7000-494$38.00
#N/SHeatilator Eco-Choice & Quadra-Fire Twin Ball Catch & Striker (SRV7000-532)SRV7000-532$97.00
#N/SQuadra-Fire Mt. Vernon AE & Edge 60 Combustion Blower Housing Gasket (SRV7000-332)SRV7000-332$24.00
#N/SHeatilator & Quadra-Fire Combustion Blower Motor Gasket (SRV7000-714)SRV7000-714$28.00
#N/SQuadra-Fire 15 Amp Slow IEC Glass Fuses - 10 Pack (7000-491/10)7000-491/10$41.00
#N/SQuadra-Fire Elbow Catch (7000-393)7000-393$35.00
#N/SQuadra-Fire Flue Adapter Gasket (SRV240-0850)SRV240-0850$14.00
#N/SQuadra-Fire Draw Latch (229-0230)229-0230$25.00
#N/SQuadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#N/SQuadra-Fire Bottom Auto-Clean Assembly (7034-021)7034-021$210.00
#N/SQuadra-Fire Firepot Riser Clamp Assembly (7034-012)7034-012$114.00
#N/SQuadra-Fire Vertically Centering Adapter Kit (TPVNT-4)TPVNT-4$135.00
#N/SQuadra-Fire Control Board Bracket (7034-212)7034-212$67.00
#N/SQuadra-Fire Door Switch Bracket (7034-215)7034-215$64.00
#N/SQuadra-Fire MT Vernon Insert-AE Hopper Switch Bracket (7082-148)7082-148$42.00
#N/SQuadra-Fire Snap Disc Bracket (7034-150)7034-150$8.00
#N/SQuadra-Fire Vacuum Switch Bracket (7034-211)7034-211$10.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Touch Up Paint - Sienna Bronze (TOUCHUP-CSB)TOUCHUP-CSB$26.00
#N/SQuadra-Fire Touch Up Paint - Porcelain Mahogany (855-1450)855-1450$30.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire & Heatilator Eco-Choice Conductor Thermostat Wire (SRV7000-409)SRV7000-409$57.00
#N/SHeatilator & Quadra-Fire AE/CE Wall Control (SRV7000-549)SRV7000-549$399.00
#N/SHeatilator & Quadra-Fire Face Plate (7034-124)7034-124$275.00
#N/S Heatilator & Quadra-Fire Fuel Level Sensor (SRV7000-523)SRV7000-523$168.00
#N/SQuadra-Fire Exhaust Gasket (SRV7034-109)SRV7034-109$14.00
#N/SQuadra-Fire Extruded Gasket - 10 Feet (7000-320/10)7000-320/10$45.00
#N/SQuadra-Fire Mt Vernon AE Insert Extruded Edge Gasket - 10 Feet (7000-319/10)7000-319/10$43.00
#N/SHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#N/SQuadra-Fire 18" Loop Igniter - 300 Watt (SRV7000-647)SRV7000-647$50.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (844-5750)844-5750$25.00
#N/SQuadra-Fire Sienna Bronze / Espresso Paint (PAINT1-CSB/CES)PAINT1-CSB/CES$40.00
#N/SQuadra-Fire Willow/Tuscan Olive Paint - 12oz (PAINT1-CWL/CTO)PAINT1-CWL/CTO$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Ring Mount Thermocouple (SRV7000-381)SRV7000-381$106.00
#N/SQuadra-Fire Mt Vernon Insert-AE Left Top Mount (SRV7036-117)SRV7036-117$104.00
#N/SQuadra-Fire Mt Vernon Insert-AE Right Top Mount (SRV7036-115)SRV7036-115$108.00
#N/SQuadra-Fire & Heatilator Eco-Choice Vacuum Hose (SRV7000-373)SRV7000-373$57.00
#N/SHeatilator & Quadra-Fire Battery Backup Wire Harness (SRV7034-202)SRV7034-202$46.00
#N/SHeatilator & Quadra-Fire Convection Blower Wire Harness (SRV7034-219)SRV7034-219$37.00
#N/SQuadra-Fire & Heatilator Door/Hopper Wire Harness (SRV7034-192)SRV7034-192$62.00
#N/SQuadra-Fire & Heatilator Igniter Wire Harness (SRV7034-273)SRV7034-273$42.00
#N/SQuadra-Fire & Heatilator Wire Harness Power Out AC (SRV7034-220)SRV7034-220$19.00
#N/SHeatilator & Quadra-Fire DC Power Supply Wire Harness (SRV7034-221)SRV7034-221$42.00
#N/SQuadra-Fire Mt Vernon Insert-AE Power Receptacle Wire Harness (SRV7034-233)SRV7034-233$53.00
#N/SHeatilator & Quadra-Fire Snap Disc Wire Harness (SRV7034-193)SRV7034-193$19.00
#N/SQuadra-Fire Mt Vernon Insert-AE Thermostat Wire Harness (SRV7034-200)SRV7034-200$60.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire 1/4-20 X 3/8" Screws - 24 Pack (7000-401/24)7000-401/24$23.00
#N/SQuadra-Fire 1/4-20 X 5/8" Screws - Pack of 24 (7000-398/24)7000-398/24$20.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SPelPro & Quadra-Fire Plastic Wire Clip - 10 Pack (7000-400/10)7000-400/10$12.00
#N/SQuadra-Fire 12 Volt Power Cord (12VCORD-AE)12VCORD-AE$57.00
#N/SQuadra-Fire & Eco-Choice Pellet Stove 3" Damper (PEL-DAMP3)PEL-DAMP3$255.00
#N/SQuadra-Fire & Heatilator 4" Damper (PEL-DAMP4)PEL-DAMP4$455.00
#N/SQuadra-Fire Log Set (LOGS-60-AE-B)LOGS-60-AE-B$249.00
#N/SQuadra-Fire & Eco-Choice Outside Air Kit (OAK-3)OAK-3$149.00
#N/SQuadra-Fire Mt Vernon & Trekker Steel Surround - Classic Black (SP-MTVS-CST)SP-MTVS-CST$329.00
#N/SQuadra-Fire Component Pack Assembly (SRV7036-041)SRV7036-041$34.00
#N/SQuadra-Fire Component Pack Assembly (SRV7036-042)SRV7036-042$31.00
#N/SQuadra-Fire Gold Trim Panel Set (SRV250-4660)SRV250-4660$234.00
#N/SQuadra-Fire Component Pack Assembly (SRV7036-042)SRV7036-042$31.00
#N/SQuadra-Fire Black Nickel Trim Set - Black (7019-027)7019-027$181.00
#N/SQuadra-Fire Cast Trim Kit - Classic Black (811-0930)811-0930$555.00
#N/SQuadra-Fire Cast Trim Kit - Porcelain Mahogany (811-0960)811-0960$729.00
#N/SQuadra-Fire Left Trim Footer - Matte Black (414-7090MBK)414-7090MBK$419.00
#N/SQuadra-Fire Left Trim Footer - Sienna Bronze (414-7090CSB)414-7090CSB$407.00
#N/SQuadra-Fire Left Trim Footer - Porcelain Mahogany (414-7090PMH)414-7090PMH$528.00
#N/SQuadra-Fire Trim Footer - Right - Matte Black (414-7100MBK)414-7100MBK$431.00
#N/SQuadra-Fire Right Trim Footer - Sienna Bronze (414-7100CSB)414-7100CSB$479.00
#N/SQuadra-Fire Right Trim Footer - Porcelain Mahogany (414-7100PMH)414-7100PMH$614.00
#N/SQuadra-Fire Trim Header - Matte Black (414-7110MBK)414-7110MBK$575.00
#N/SQuadra-Fire Trim Header - Sienna Bronze (414-7110CSB)414-7110CSB$563.00
#N/SQuadra-Fire Trim Header - Porcelain Mahogany (414-7110PMH)414-7110PMH$863.00
#N/SQuadra-Fire Trim Leg - Left - Matte Black (414-7120MBK)414-7120MBK$623.00
#N/SQuadra-Fire Left Trim Leg - Sienna Bronze (414-7120CSB)414-7120CSB$599.00
#N/SQuadra-Fire Left Trim Leg - Porcelain Mahogany (414-7120PMH)414-7120PMH$863.00
#N/SQuadra-Fire Trim Leg - Right - Matte Black (414-7130MBK)414-7130MBK$575.00
#N/SQuadra-Fire Right Trim Leg - Sienna Bronze (414-7130CSB)414-7130CSB$599.00
Sidebar Sidebar Sidebar

There are no products listed under this category.

!
