Vermont Castings Defiant 1610 NC Parts Diagram

Vermont Castings Defiant 1610 NC Interactive Parts Finder

Find the exact replacement parts you need for your Vermont Castings Defiant 1610 NC. This Wood stove has 94 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Defiant 1610 Side Insulation, Vermont Castings Defiant 1610 Right Side Brick, Defiant 1610 Non Catalytic Left Side Brick, Vermont Castings Defiant & Encore Brick Support Bracket, and Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 94 replacement parts available.

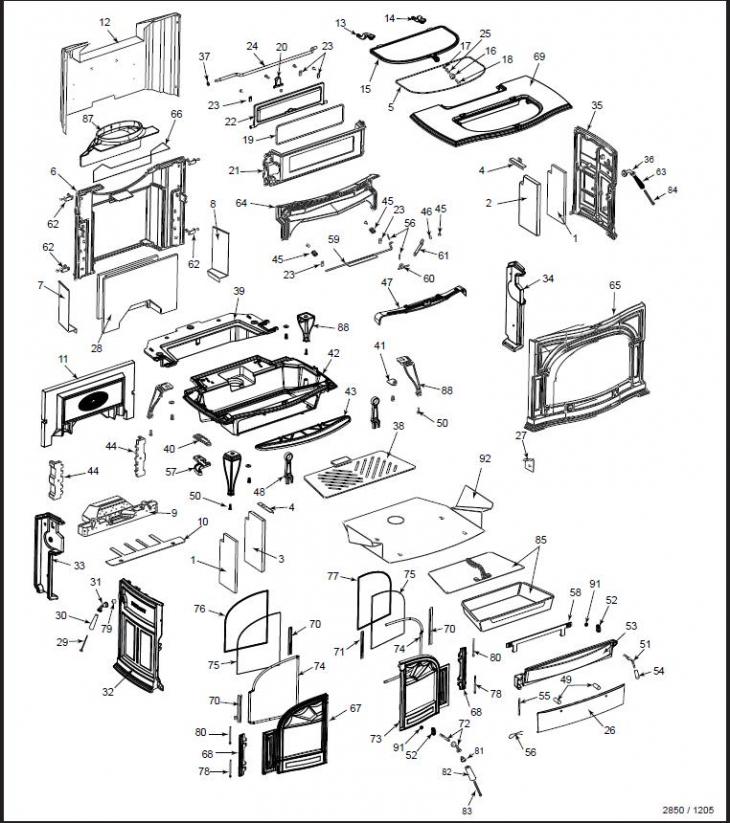

Vermont Castings Defiant 1610 NC replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Defiant 1610 Side Insulation (30002846)30002846$29.00
#10Defiant 1610 NC & Dutchwest Large 2479 Shoe Gasket (30002864)30002864$8.00
#11Vermont Castings Defiant 1610 Fireback (30002840)30002840$499.00
#12Vermont Castings Defiant 1610 Outer Back (30002839)30002839$281.00
#13Vermont Castings Left Griddle Quadrant (30002399A)30002399A$40.00
#14Vermont Castings Right Griddle Quadrant (30002401A)30002401A$33.00
#15Vermont Castings Griddle (30002822A)30002822A$115.00
#16Vermont Castings Defiant Griddle Knob (1600657A)1600657A$25.00
#17Vermont Castings Defiant Griddle Handle Spacer (1600070)1600070$16.00
#18Majestic and Vermont Castings 1" Striker Bolt (1200907)1200907$3.50
#19Vermont Castings 5/16" Medium Density Gasket - SOLD PER FOOT (1203588)1203588$2.00
#2Vermont Castings Defiant 1610 Right Side Brick (30002847)30002847$139.00
#20Vermont Castings Damper Ramp (1300643)1300643$15.00
#21Vermont Castings Defiant Damper Housing (30002821A)30002821A$164.00
#22Vermont Castings Defiant Damper (30002816)30002816$74.00
#23Vermont Castings Damper Tab (1601488)1601488$3.00
#24Vermont Castings Defiant Damper Rod (1600065)1600065$97.00
#25Defiant 1610, 1910, & 1945 Griddle Handle Bushing (1201895)1201895$6.00
#26Vermont Castings Defiant 1610 Non Catalytic Ash Door Heat Shield (1401911)1401911$136.00
#27Vermont Castings Defiant & Encore Rheostat Bracket (30002863)30002863$43.00
#28Vermont Castings Fountain Assembly Rebuild Kit (0000122)0000122$921.00
#29Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#3Defiant 1610 Non Catalytic Left Side Brick (30002848)30002848$139.00
#31Vermont Castings Steel Damper Handle w/Screw Assembly (30002720A)30002720A$63.00
#32Vermont Castings Left Side - Classic Black (30002832A)30002832A$208.00
#33Vermont Castings Defiant Left Air Manifold (30002818)30002818$64.00
#34Vermont Castings Defiant 1610 Air Manifold - Right (30002817)30002817$70.00
#35Vermont Castings Defiant Right Side - Classic Black (30002831A)30002831A$203.00
#36Vermont Castings Thermostat Handle - Complete - (30002716)30002716$29.00
#37Vermont Castings 3/8" Washer (1202560)1202560$3.00
#38Vermont Castings Defiant 1610 Grate (30002820A)30002820A$147.00
#39Vermont Castings Defiant 1610 Inner Bottom (30002838)30002838$251.00
#4Vermont Castings Defiant & Encore Brick Support Bracket (30002480)30002480$35.00
#40Defiant 1610 NC & Defiant 2N1 1975-1979 Top Ash Door Hinge (1-00-30002836)1-00-30002836$20.00
#41Vermont Castings Defiant Door Handle Bracket (30002844)30002844$72.00
#42Vermont Castings Defiant 1610 Bottom (30002829)30002829$527.00
#43Vermont Castings Ashlip - Classic Black (30002811A)30002811A$139.00
#44Vermont Castings Defiant 1610 NC Fireback Retainer (30002815)30002815$25.00
#45Vermont Castings Friction Spring (1201846)1201846$4.00
#46Vermont Castings Flat Washer 1/4" (1202471)1202471$3.00
#47Vermont Castings Defiant 1610 Air Plate (30002819A)30002819A$79.00
#48Vermont Castings Defiant Andiron (30002827A)30002827A$53.00
#49Vermont Castings Control Spacer (1201781)1201781$10.00
#5Vermont Castings 5/16" Griddle Gasket - SOLD PER FOOT (1203668)1203668$3.30
#50Vermont Castings Leg Leveler Bolt (1201745)1201745$4.50
#51Vermont Castings Ash Door Handle Shaft (1600622)1600622$32.00
#52Vermont Castings 3/4" Pawl Assembly - Door Latch (30002362)30002362$8.00
#53Vermont Castings Defiant CAT-C Ash Door with Hinge & Support (SRV30002810)SRV30002810$209.00
#54Vermont Castings Wooden Ash Door Handle - Only (1600663)1600663$8.00
#55Defiant 1610 NC & Defiant 2N1 1975-1979 Ash Door Hinge Rod (30002826)30002826$20.00
#56Vermont Castings Encore & Defiant Ash Door Cotter Pin (30001749)30001749$3.00
#57Vermont Castings Bottom Ashdoor Hinge Support (1300642A)1300642A$56.00
#58Vermont Castings Defiant Ash Pan Bracket (30001908A)30001908A$64.00
#59Vermont Castings Defiant 1610 Primary Air Flap (30002849)30002849$65.00
#6Vermont Castings Defiant 1610 Back (30002833)30002833$383.00
#60Vermont Castings Defiant 1610 & Encore 1450 Primary Air Shaft (30002841)30002841$54.00
#61Vermont Castings Defiant 1610 Primary Air Linkage (30002842)30002842$25.00
#62Vermont Castings Defiant Rear Side Bracket (30002845)30002845$16.00
#63Vermont Castings Maple Thermostat Handle (1600660)1600660$7.00
#64Vermont Castings Defiant 1610 Airwash Manifold (30002814)30002814$94.00
#65Vermont Castings Defiant Front - Classic Black (30002830A)30002830A$405.00
#66Vermont Castings Defiant 7/16" Flue Collar Gasket - SOLD PER FOOT (30001910)30001910$3.00
#67Vermont Castings Left Door - Classic Black (30002813A)30002813A$146.00
#68Vermont Castings Door Hinge Strip (1300645A)1300645A$43.00
#69Vermont Castings Defiant Top - Classic Black (30002834A)30002834A$394.00
#7Defiant 1610 N/C & Encore 1450 N/C Left Heat Deflector (30002441)30002441$69.00
#70Vermont Castings 6 1/4" Glass Clip (30001715)30001715$53.00
#71Vermont Castings 8-1/2" Glass Clip - Right Door Only (30001716)30001716$53.00
#72Vermont Castings Front Steel Door Handle (30002717)30002717$55.00
#73Vermont Castings Right Door - Classic Black (30002812A)30002812A$220.00
#74Vermont Castings 3/8" Low Density Door Gasket- SOLD PER FOOT (1203589)1203589$2.00
#75Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#76Vermont Castings Defiant 1610, 1910 & 1945 Left Door Glass (1600064)1600064$225.00
#77Vermont Castings Defiant Right Door Glass (1600062)1600062$229.00
#78Vermont Castings Long Door Pin (30002727)30002727$6.00
#79Vermont Castings Defiant & Encore 7/16" Spacer (1201779)1201779$4.00
#8Encore 1450 N/C & Defiant 1610 N/C Right Heat Deflector (30002442)30002442$69.00
#80Vermont Castings Long Door Pin (30002727)30002727$6.00
#81Vermont Castings Handle Base Stub (30002714)30002714$19.00
#82Vermont Castings Maple Damper Handle - Only (1600664)1600664$7.00
#83Vermont Castings Damper Handle Screw - Only (1201310)1201310$3.50
#84Vermont Castings Thermostat Handle Long Screw - Only (1201243)1201243$3.00
#85Vermont Castings Ash Pan Assembly (30001690)30001690$156.00
#87Vermont Castings Flue Collar - Classic Black (30001576A)30001576A$176.00
#88Vermont Castings Defiant Leg (30002835A)30002835A$64.00
#9Vermont Castings Shoe Refractory (SRV30002243)SRV30002243$315.00
#91Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#92Vermont Castings Bottom Heat Shield (30005037)30005037$116.00
#92aVermont Castings Bottom Heat Shield Right Wing (30005038)30005038$100.00
#92bVermont Castings Bottom Heat Shield Left Wing (30005039)30005039$92.00
#92cVermont Castings Glass Clip Screws - 10 Pack (1200998-10)1200998-10$11.00
#92dVermont Castings Hex Nut for Wood, Gas, & Coal Stoves (1203251)1203251$8.00
#93Defiant & Dutchwest Fountain Heat Shield (30004572)30004572$89.00
