Vermont Castings Radiance IFT Gas Parts Diagram

Vermont Castings Radiance IFT Gas Interactive Parts Finder

Find the exact replacement parts you need for your Vermont Castings Radiance IFT Gas. This Gas stove has 104 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Radiance Log Set, Vermont Castings Radiance Ember Bed Assembly, Vermont Castings Radiance Top, Vermont Castings Radiance Top - Biscuit, and Vermont Castings Radiance Top - New Bordeaux. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 104 replacement parts available.

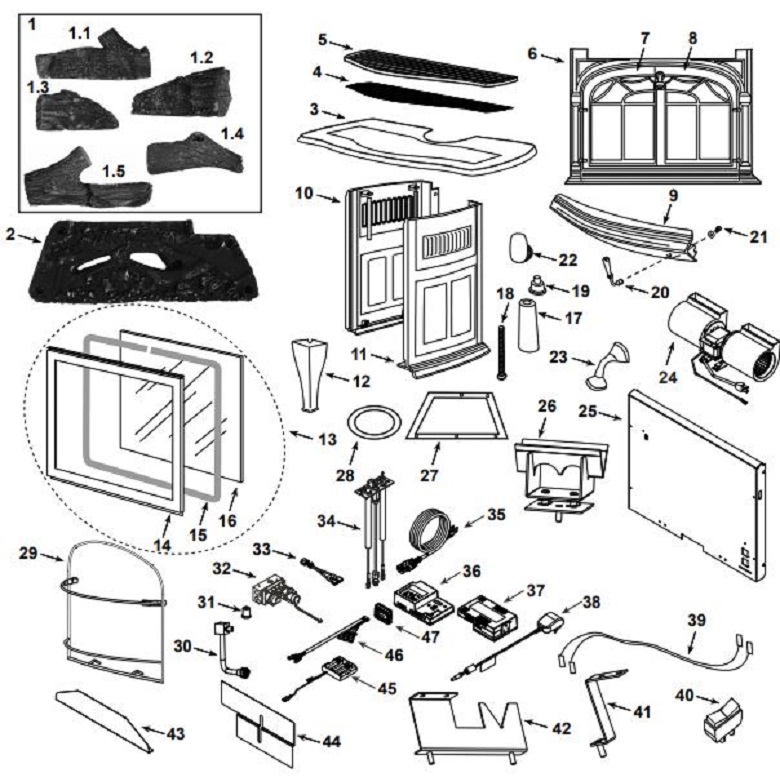

Vermont Castings Radiance IFT Gas replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Radiance Log Set (SRV20012550)SRV20012550$292.00
#10Vermont Castings Radiance Left End - Classic Black (30001751A)30001751A$251.00
#10AVermont Castings Radiance Left End - Biscuit (30003239A)30003239A$635.00
#10BVermont Castings Radiance Left End - New Bordeaux (30006789A)30006789A$659.00
#10CVermont Castings Radiance Left End - Brown Majolica (30004927A)30004927A$779.00
#11Vermont Castings Radiance Right End - Classic Black (30001752A)30001752A$239.00
#11AVermont Castings Radiance Right End - Biscuit (30003238A)30003238A$683.00
#11BVermont Castings Radiance Right End - New Bordeaux (30006788A)30006788A$683.00
#11CVermont Castings Radiance Right End - Brown Majolica (30004926A)30004926A$676.00
#12Vermont Castings Radiance Leg (30001753A)30001753A$76.00
#12AVermont Castings Radiance Leg - Biscuit (30003245A)30003245A$191.00
#12BVermont Castings Radiance Leg - New Bordeaux (30006795A)30006795A$175.00
#12CVermont Castings Radiance Leg - Brown Majolica (30004934A)30004934A$251.00
#13Glass/ Frame Assembly for Radiance Gas Stoves (5003075)5003075$777.00
#14Vermont Castings Radiance Glass Frame (1409112)1409112$191.00
#15Vermont Castings Glass Gasket - MED KNIT - 10' (1203702K)1203702K$16.00
#16Vermont Castings Radiance & Goldenwarm Large Glass Firebox (1601290A)1601290A$382.00
#17Vermont Castings Maple Damper Handle - Only (1600664)1600664$7.00
#19Vermont Castings Handle Base Stub (30002714)30002714$19.00
#2Vermont Castings Radiance Ember Bed Assembly (20012206)20012206$585.00
#20Vermont Castings Radiance & Addison Door Handle Assembly - Brushed Nickel (30002730)30002730$15.00
#22Vermont Castings Front Latch (30001249)30001249$9.00
#23Vermont Castings Steel Damper Handle w/Screw Assembly (30002720A)30002720A$63.00
#24HHT Gas Stove Fan Kit (GFK-160A)GFK-160A$327.00
#25Vermont Castings RADVT-IFT Rear Shroud (SRV30007490)SRV30007490$296.00
#26Vermont Castings Radiance Air Shutter Assembly (20012204)20012204$89.00
#27Vermont Castings Radiance Base Pan / Firebox Gasket (20004287)20004287$9.00
#28Vermont Castings Heat Exchanger Door Gasket (1203687A)1203687A$15.00
#28AVermont Castings Gasket Cement Tube - 2.3oz (1206122)1206122$16.00
#29Vermont Castings RADVT Barrier Screen (30007253)30007253$203.00
#3Vermont Castings Radiance Top (1301194A)1301194A$335.00
#30Vermont Castings Manifold Assembly (SRV30007453)SRV30007453$55.00
#31Vermont Castings Radiance #33 Orifice Hood (20012554)20012554$19.00
#31AVermont Castings Radiance #51 Orifice Hood - LP (20008557)20008557$8.00
#32HHT Variable IPI Gas Valve - NG (SRV2166-302)SRV2166-302$138.00
#32AHeatilator, Heat N Glo & Majestic Dexen Valve - LP (2166-303)2166-303$149.00
#33HHT Jumper Wire (SRV2187-198)SRV2187-198$18.00
#34Outdoor Lifestyles & Vermont Castings Pilot Assembly - NG (SRV4602-300)SRV4602-300$141.00
#34AOutdoor Lifestyles & Vermont Castings Pilot Orifice - LP (SRV4602-301)SRV4602-301$29.00
#35HHT B-Type AC Module Cable (SRV2326-152)SRV2326-152$21.00
#36HHT IFT Control Module (SRV2326-130)SRV2326-130$224.00
#37HHT B Type Aux Module (SRV2326-150)SRV2326-150$138.00
#38HHT Power Supply / Wall Transformer - 6V (SRV2326-131)SRV2326-131$33.00
#39Majestic & Vermont Castings 1/4 STR M/F Terminal Wire (SRV30007499)SRV30007499$37.00
#3AVermont Castings Radiance Top - Biscuit (30003244A)30003244A$803.00
#3BVermont Castings Radiance Top - New Bordeaux (30006794A)30006794A$923.00
#3CVermont Castings Radiance Series Top - Majolica Brown (30004933A)30004933A$755.00
#4Vermont Castings Radiance Top Screen (1601970)1601970$107.00
#40Vermont Castings Switch ON/OFF (30000874)30000874$7.00
#41Vermont Castings Radiance Tie Bracket Assembly (20012442)20012442$8.00
#42Vermont Castings Radiance Burner Support Assembly - Right (20012443)20012443$92.00
#43Vermont Castings RADVT-IFT Cover Plant (SRV30007455)SRV30007455$109.00
#44Vermont Castings Radiance Restrictor Plate (20013028)20013028$33.00
#45HHT Battery Pack (SRV2326-134)SRV2326-134$22.00
#46HHT 6-Pin IFT Wire Harness (SRV2326-132)SRV2326-132$25.00
#47HHT RF FCC Module (SRV2326-120)SRV2326-120$42.00
#5Vermont Castings Radiance Grille (1301195A)1301195A$208.00
#6Vermont Castings Radiance Front II (30001376A)30001376A$347.00
#6AVermont Castings Radiance Front - Biscuit (30003240A)30003240A$863.00
#6BVermont Castings Radiance Front - New Bordeaux (30006790A)30006790A$959.00
#6CVermont Castings Radiance Front - Brown Majolica (30004928A)30004928A$839.00
#7Vermont Castings Radiance Left Door - Classic Black (30001378A)30001378A$143.00
#7AVermont Castings Radiance Left Door - Biscuit (30003242K)30003242K$467.00
#7BVermont Castings Radiance Left Door - New Bordeaux (30006792A)30006792A$815.00
#7CVermont Castings Radiance Left Door - Brown Majolica (30004930A)30004930A$647.00
#8Vermont Castings Radiance Right Door - Classic Black (30001377A)30001377A$144.00
#8AVermont Castings Radiance Right Door - Biscuit (30003241A)30003241A$659.00
#8BVermont Castings Radiance Right Door - New Bordeaux (30006791A)30006791A$714.00
#8CVermont Castings Radiance Right Door - Brown Majolica (30004929A)30004929A$683.00
#9Vermont Castings Radiance Control Door - Classic Black (30001413A)30001413A$123.00
#9AVermont Castings Radiance Control Door - Biscuit (30003243A)30003243A$383.00
#9BVermont Castings Radiance Control Door - Bordeaux (30006793A)30006793A$252.00
#9CVermont Castings Radiance Control Door (30004931A)30004931A$371.00
#N/SVermont Castings Door Handle Holder Insert (1600600)1600600$14.00
#N/SHarman, Quadra-Fire & Vermont Castings Touch Up Paint - Classic Black (3-42-19905)3-42-19905$24.00
#N/SVermont Castings Touch Up Paint - Biscuit (0001277)0001277$29.00
#N/SVermont Castings Touch Up Paint - New Bordeaux (0001341)0001341$29.00
#N/SVermont Castings Touch Up Paint - Brown Majolica (0001270)0001270$22.00
#N/SHHT RC400 Remote Assembly (SRV2326-110)SRV2326-110$354.00
#N/SVermont Castings Warming Shelf Kit - Classic Black (0001560)0001560$239.00
#N/SVermont Castings Warming Shelf Kit - Bordeaux (0001571)0001571$429.00
#N/SVermont Castings Radiance Warming Shelf - Majolica Brown (0001553)0001553$379.00
#N/SVermont Castings Warming Shelf (1302208A)1302208A$97.00
#N/SVermont Castings Radiance IFT Warming Shelf - Biscuit (SRV30003090)SRV30003090$275.00
#N/SVermont Castings Radiance Warming Shelf - Bordeaux (SRV30006797)SRV30006797$275.00
#N/SVermont Castings Radiance IFT Warming Shelf - Majolica Brown (SRV30004817)SRV30004817$275.00
#N/SVermont Castings Warming Shelf Dragon Bracket - Classic Black (1302220A)1302220A$60.00
#N/SVermont Castings Dragon Bracket - Biscuit (SRV30002948)SRV30002948$128.00
#N/SVermont Castings Warming Shelf Dragon Bracket - Bordeaux (30006690A)30006690A$136.00
#N/SVermont Castings Dragon Bracket - Majolica Brown (SRV30004818)SRV30004818$150.00
#N/SVermont Castings Left Warming Shelf Bracket - Classic Black (1302221A)1302221A$41.00
#N/SVermont Castings Right Warming Shelf Bracket - Classic Black (1302222A)1302222A$37.00
#N/SVermont Castings NG to LP Conversion Kit (SRV30007495)SRV30007495$99.00
#N/SVermont Castings LP to NG Conversion Kit (SRV30007496)SRV30007496$123.00
#N/SHHT IPI Regulator with Stepper Motor - NG (NGK-DXV-50)NGK-DXV-50$87.00
#N/SHHT Regulator with Stepper Motor - LP (SRVLPK-DXV-50)SRVLPK-DXV-50$91.00
