Quadrafire Santa Fe Pellet MBK Parts Diagram

Quadrafire Santa Fe Pellet MBK Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Santa Fe Pellet MBK. This Pellet stove has 142 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Santa-Fe Hopper Lid, Quadra-Fire Santa-Fe Top, Quadra-Fire Santa Fe Door Hinge Assembly, Quadra-Fire Male Door Hinge, and Quadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 142 replacement parts available.

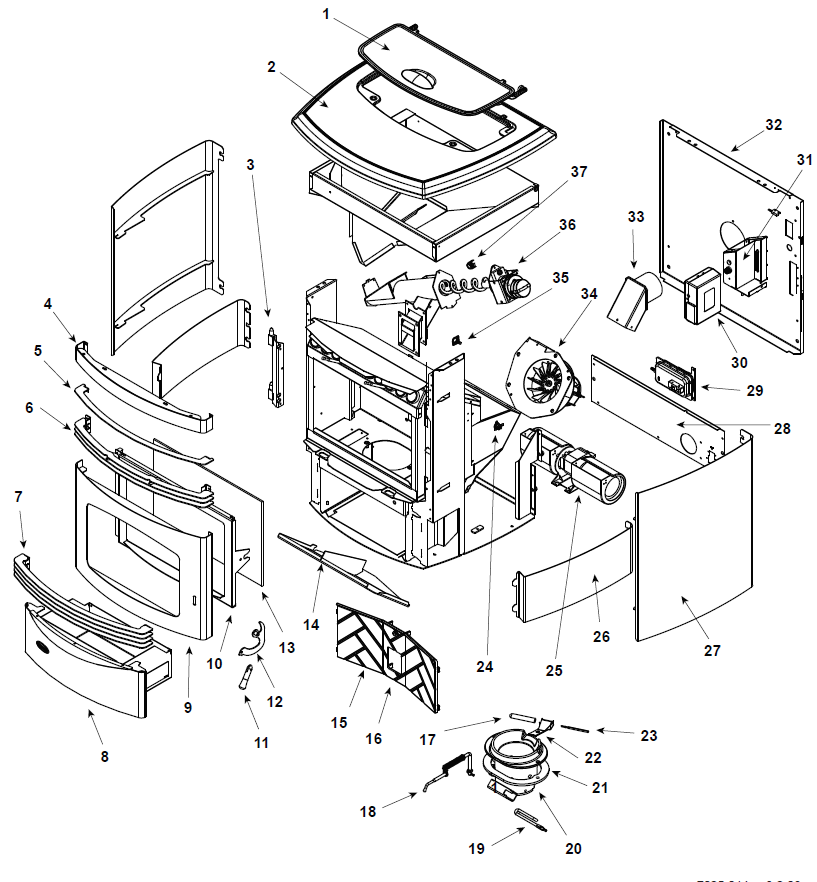

Quadrafire Santa Fe Pellet MBK replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire Santa-Fe Hopper Lid (SRV7050-132)SRV7050-132$274.00
#11Quadra-Fire Santa Fe Door Handle - Black Nickel (SRV7019-174)SRV7019-174$17.00
#12Quadra-Fire Santa Fe Door Latch Assembly (SRV7019-015)SRV7019-015$36.00
#13Quadra-Fire Santa Fe & Castile Door Glass Assembly (SRV7001-038)SRV7001-038$281.00
#14Quadra-Fire Baffle Assembly (SRV7001-034)SRV7001-034$194.00
#15Quadra-Fire Castile & Santa Fe Side Brick (SRV414-0270)SRV414-0270$128.00
#16Quadra-Fire Castile & SantaFe Cast Brick - Center (SRV414-0260)SRV414-0260$143.00
#17Quadra-Fire Thermocouple Cover (812-1322)812-1322$8.00
#18Quadra-Fire Santa Fe Pull Rod Assembly (7019-009)7019-009$65.00
#19Heatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#2Quadra-Fire Santa-Fe Top (SRV7050-101)SRV7050-101$565.00
#20Quadra-Fire EZ Clean Firepot Assembly (SRV414-5200)SRV414-5200$336.00
#21Quadra-Fire Oval Firepot Gasket (SRV240-0930)SRV240-0930$19.00
#22Quadra-Fire Thermocouple Clamp (SRV7001-203)SRV7001-203$81.00
#23Quadra-Fire & Heatilator Eco-Choice 14" Thermocouple (812-4470)812-4470$89.00
#24Heatilator Eco-Choice & Quadra-Fire 110-20 Snap Disc (SRV230-1220)SRV230-1220$28.00
#25HHT Convection Blower (812-4900)812-4900$245.00
#26Quadra-Fire Santa-Fe Pedestal Side Curtain (SRV7050-105)SRV7050-105$41.00
#27Quadra-Fire Santa-Fe Side Curtain Assembly (SRV7050-005)SRV7050-005$191.00
#28Quadra-Fire Santa-Fe Pedestal Back (SRV7050-134)SRV7050-134$26.00
#3Quadra-Fire Santa Fe Door Hinge Assembly (SRV7019-014)SRV7019-014$215.00
#31Quadra-Fire Junction Box & Wire Harness (SRV7001-194)SRV7001-194$294.00
#32Quadra-Fire Santa-Fe Back (SRV7050-102)SRV7050-102$96.00
#33Quadra-Fire Santa Fe Exhaust Transition Assembly (SRV7001-009)SRV7001-009$120.00
#34Quadra-Fire, PelPro & Heatilator Eco-Choice Exhaust Blower Motor (812-4400)812-4400$153.00
#35Quadra-Fire Snap Disc #2 - 250 Degree (SRV7000-268)SRV7000-268$57.00
#36Quadra-Fire Feed Assembly (812-4760)812-4760$505.00
#37Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#4Quadra-Fire Santa Fe Top Face Assembly (7019-047)7019-047$28.00
#5Quadra-Fire Santa Fe Scraper Grill Bar - Black (7019-119)7019-119$63.00
#6Quadra-Fire Santa Fe Upper Grill Assembly - Black (7019-007)7019-007$142.00
#7Quadra-Fire Santa Fe Lower Grill Assembly - Black (7019-008)7019-008$86.00
#8Quadra-Fire Santa Fe Ash Drawer Assembly (SRV7050-002)SRV7050-002$205.00
#9Quadra-Fire Santa Fe Face Assembly with Door (SRV7019-045)SRV7019-045$921.00
#N/SQuadra-Fire Male Door Hinge (SRV450-2810)SRV450-2810$44.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SQuadra-Fire Santa Fe Door Handle Assembly (SRV7019-037)SRV7019-037$213.00
#N/SQuadra-Fire Santa Fe Face Skin Assembly (SRV7019-046)SRV7019-046$311.00
#N/SQuadra-Fire Tadpole Gasket (842-5130)842-5130$38.00
#N/SQuadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#N/SQuadra-Fire Santa Fe Insert Pin (7000-229)7000-229$6.00
#N/SQuadra-Fire Rope Retainer (SRV7001-192)SRV7001-192$19.00
#N/SQuadra-Fire Screws - Pack of 24 (7000-101/24)7000-101/24$30.00
#N/SQuadra-Fire Castile & Santa Fe Glass Gasket Tape (240-0290/10)240-0290/10$47.00
#N/SQuadra-Fire Door Corner Tape (SRV7027-227)SRV7027-227$37.00
#N/SQuadra-Fire Santa Fe Firepot Pull Rod - Black Nickel (SRV7019-172)SRV7019-172$19.00
#N/SQuadra-Fire EZ Clean Firepot Linkage Spring (200-2050)200-2050$7.00
#N/SHeatilator & Quadra-Fire Loop Igniter - 380 Watt (SRV7000-462)SRV7000-462$50.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SQuadra-Fire 1-1/4" Firepot Bolt (225-0120)225-0120$2.50
#N/SQuadra-Fire EZ Clean Firepot Bushing (410-8320)410-8320$7.00
#N/SQuadra-Fire EZ Clean Firepot Floor (414-0290)414-0290$79.00
#N/SHHT Lock Nut (226-0090)226-0090$2.50
#N/SQuadra-Fire Convection Blower Magnet (7019-188)7019-188$7.50
#N/SQuadra-Fire Heat Output Rocker Switch - 3 Way (812-3500)812-3500$77.00
#N/SHHT Combustion / Exhaust Blower Motor Housing Gasket (SRV240-0812)SRV240-0812$10.00
#N/SQuadra-Fire, PelPro & Heatilator Eco-Choice Combustion Blower Gasket - Round (812-4710)812-4710$34.00
#N/SQuadra-Fire Feed / Auger System Nylon Bearing (SRV410-0552)SRV410-0552$12.00
#N/SQuadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#N/SHeatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#N/SHeatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#N/SQuadra-Fire Auger Motor Gasket (SRV240-0731)SRV240-0731$4.00
#N/SQuadra-Fire Snap Disc Bracket (SRV7005-253)SRV7005-253$8.00
#N/SHHT Rubber Bumpers - 3 Pack (SRV224-0340)SRV224-0340$14.00
#N/SQuadra-Fire SANTAFE-MBK Component Pack Assembly (SRV7050-011)SRV7050-011$219.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)SRV230-0810$38.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire Bottom Air Wash Deflector (SRV413-0680)SRV413-0680$67.00
#N/SQuadra-Fire Feed Adjustment Plate (SRV7001-182)SRV7001-182$76.00
#N/SQuadra-Fire Thumb Screws (844-5070)844-5070$45.00
#N/SQuadra-Fire Santa-Fe Hopper Lid Stop (SRV7050-126)SRV7050-126$22.00
#N/SHHT 5/32" ID Vacuum Hose (SRV240-0450)SRV240-0450$53.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire & Heatilator Eco-Choice Magnetic Hopper Lid Switch (SRV7000-375)SRV7000-375$30.00
#N/SQuadra-Fire Castile & Santa Fe Ash Cleanout Plate (SRV7001-186)SRV7001-186$14.00
#N/SQuadra-Fire Santa Fe Insert Scraper Repair Kit (SCRAPER-SFI)SCRAPER-SFI$203.00
#N/SQuadra-Fire Hopper Switch Wire Harness (SRV7050-130)SRV7050-130$40.00
#N/SVermont Castings Ash Door (7001224)7001224$107.00
#N/SQuadra-Fire & Eco-Choice Top Vent Offset Collar (812-3570)812-3570$169.00
#N/SQuadra-Fire Log Set (LOGS-30-OE)LOGS-30-OE$309.00
#N/SVermont Castings Dutchwest 2461 Outer Back (7001231A)7001231A$454.00
#N/SVermont Castings Dutchwest 2461 Inner Back - Post 9/97 (7001230)7001230$103.00
#N/SVermont Castings Dutchwest 2462 Inner Back - Post 9/97 (7001233)7001233$139.00
#N/SVermont Casting Dutchwest 2462 Right Side - Post 7/97 (7001232A)7001232A$337.00
#N/SQuadra-Fire Top Center "Twig" Log (811-0900)811-0900$100.00
#N/SQuadra-Fire Santa Fe Scraper Grill Bar - Black (7019-119)7019-119$63.00
#N/SQuadra-Fire Scraper Grill Bar - Black Nickel (7019-191)7019-191$57.00
#N/SQuadra-Fire Scraper Grill Bar - Gold (7019-161)7019-161$35.00
#N/SQuadra-Fire Santa Fe Grill Bar/Scraper - Nickel (SRV7019-164)SRV7019-164$106.00
#N/SQuadra-Fire Grill Bracket Cover (7019-199)7019-199$9.00
#N/SQuadra-Fire Santa Fe Lower Grill Assembly - Black (7019-008)7019-008$86.00
#N/SQuadra-Fire Lower Grill Assembly - Black Nickel (7019-190)7019-190$117.00
#N/SQuadra-Fire Lower Grill Assembly - Gold (7019-160)7019-160$136.00
#N/SQuadra-Fire Santa Fe Lower Grill Assembly - Nickel (SRV7019-163)SRV7019-163$239.00
#N/SQuadra-Fire Santa Fe Upper Grill Assembly - Black (7019-007)7019-007$142.00
#N/SQuadra-Fire Upper Grill Assembly - Black Nickel (7019-189)7019-189$94.00
#N/SQuadra-Fire Santa Fe Upper Grill Assembly - Gold (7019-159)7019-159$106.00
#N/SQuadra-Fire Santa Fe Upper Grill Assembly - Nickel (SRV7019-162)SRV7019-162$203.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Kit - Rear Mount (811-0872)811-0872$149.00
#N/SQuadra-Fire Air Intake Channel (SRV413-7040)SRV413-7040$83.00
#N/SQuadra-Fire Outside Air Kit Floor Cover (SRV411-1071)SRV411-1071$47.00
#N/SQuadra-Fire 2" x 3' Aluminum Flex Hose (SRV200-0860)SRV200-0860$48.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Cap Assembly (SRV7001-044)SRV7001-044$46.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Collar Assembly (SRV7001-045)SRV7001-045$71.00
#N/SQuadra-Fire Outside Air Kit Trim Plate (SRV412-7100)SRV412-7100$12.00
#N/SQuadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)841-0960$229.00
#N/SHeatilator Eco-Choice & Quadra-Fire Mechanical Thermostat (812-3760)812-3760$162.00
#N/SHHT Programmable Thermostat with Wire (PROG-STAT)PROG-STAT$247.00
#N/SQuadra-Fire Castile & Santa Fe Vertical Adapter Kit (TPVNT-2)TPVNT-2$133.00
#N/SQuadra-Fire 3"- 4" Offset Vent Adapter (811-0720)811-0720$169.00
#N/SQuadra-Fire Rear Vent Adapter W / Cleanout (811-0620)811-0620$229.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire Wing Nut - 24 Pack (226-0160/24)226-0160/24$32.00
#N/SQuadra-Fire 1/4-20" Screws - 24 Pack (7000-130/24)7000-130/24$35.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SHeat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#N/SQuadra-Fire 8-32 x 3/4 Pan Head Screws - 24 Pack (229-1100/24)229-1100/24$21.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
