Quadrafire SantaFei-MBK Pellet Parts Diagram

Quadrafire SantaFei-MBK Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire SantaFei-MBK Pellet. This Pellet stove has 123 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire SANTAFEI Top Hopper Lid, Quadra-Fire Santa-Fe Insert Series Top Hinge Assembly, Quadra-Fire Santa Fe Top Face Assembly, Quadra-Fire Santa Fe Scraper Grill Bar - Black, and Quadra-Fire Santa Fe Upper Grill Assembly - Black. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 123 replacement parts available.

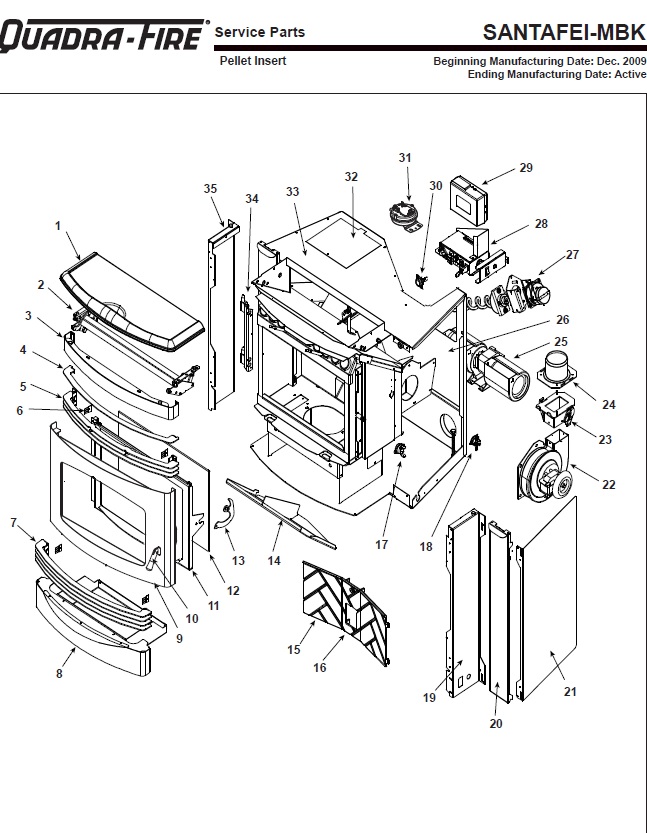

Quadrafire SantaFei-MBK Pellet replacement parts diagram
Part #Part NamePart CodePrice
#1Quadra-Fire SANTAFEI Top Hopper Lid (7019-227)7019-227$329.00
#10Quadra-Fire Santa Fe Door Handle Assembly (SRV7019-037)SRV7019-037$213.00
#12Quadra-Fire Santa Fe & Castile Door Glass Assembly (SRV7001-038)SRV7001-038$281.00
#13Quadra-Fire Santa Fe Door Latch Assembly (SRV7019-015)SRV7019-015$36.00
#14Quadra-Fire Baffle Assembly (SRV7001-034)SRV7001-034$194.00
#15Quadra-Fire Castile & Santa Fe Side Brick (SRV414-0270)SRV414-0270$128.00
#16Quadra-Fire Castile & SantaFe Cast Brick - Center (SRV414-0260)SRV414-0260$143.00
#17Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#18Heatilator Eco-Choice & Quadra-Fire 110-20 Snap Disc (SRV230-1220)SRV230-1220$28.00
#19Quadra-Fire Santa-Fe Insert Face - Right (SRV7019-116)SRV7019-116$287.00
#2Quadra-Fire Santa-Fe Insert Series Top Hinge Assembly (7019-023)7019-023$142.00
#20Quadra-Fire Santa Fe Access Panel Assembly (7019-025)7019-025$96.00
#21Quadra-Fire Santa Fe Outer Skin - Left & Right (7019-100)7019-100$85.00
#22Quadra-Fire, PelPro & Heatilator Eco-Choice Exhaust Blower Motor (812-4400)812-4400$153.00
#23Quadra-Fire Castile & Santa Fe Exhaust Transition Assembly (SRV414-5100)SRV414-5100$105.00
#24Quadra-Fire Santa-Fe Insert Flue Collar Assembly (7019-031)7019-031$84.00
#25HHT Convection Blower (812-4900)812-4900$245.00
#26Quadra-Fire Santa Fe Outer Back Skin (SRV7019-101)SRV7019-101$589.00
#27Quadra-Fire Feed Assembly (812-4760)812-4760$505.00
#28Quadra-Fire Santa Fe Insert Wire Harness/Junction Box (SRV7019-166)SRV7019-166$178.00
#29Quadra-Fire 3 Speed Control Board (SRV7000-704)SRV7000-704$337.00
#3Quadra-Fire Santa Fe Top Face Assembly (7019-047)7019-047$28.00
#30Quadra-Fire Snap Disc #2 - 250 Degree (SRV7000-268)SRV7000-268$57.00
#31 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#32Quadra-Fire & Heat N Glo Outer Can Plate Cover (480-1300)480-1300$85.00
#33Quadra-Fire Santa Fe Insert Outer Top Skin (SRV7019-106)SRV7019-106$256.00
#34Quadra-Fire Santa Fe Door Hinge Assembly (SRV7019-014)SRV7019-014$215.00
#35Quadra-Fire Santa-Fe Insert Face - Left (SRV7019-220)SRV7019-220$175.00
#4Quadra-Fire Santa Fe Scraper Grill Bar - Black (7019-119)7019-119$63.00
#5Quadra-Fire Santa Fe Upper Grill Assembly - Black (7019-007)7019-007$142.00
#6Quadra-Fire Grill Bracket Cover (7019-199)7019-199$9.00
#7Quadra-Fire Santa Fe Lower Grill Assembly - Black (7019-008)7019-008$86.00
#8Quadra-Fire Santa-Fe Insert Ash Draw Assembly (7019-006)7019-006$163.00
#9Quadra-Fire Santa Fe Face Assembly with Door (SRV7019-045)SRV7019-045$921.00
#N/SHHT Rubber Bumpers - 3 Pack (SRV224-0340)SRV224-0340$14.00
#N/SQuadra-Fire Santa Fe Face Skin Assembly (SRV7019-046)SRV7019-046$311.00
#N/SQuadra-Fire Santa Fe Door Handle - Black Nickel (SRV7019-174)SRV7019-174$17.00
#N/SQuadra-Fire Santa Fe Insert Pin (7000-229)7000-229$6.00
#N/SQuadra-Fire Tadpole Gasket (842-5130)842-5130$38.00
#N/SQuadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#N/SQuadra-Fire Rope Retainer (SRV7001-192)SRV7001-192$19.00
#N/SQuadra-Fire Castile & Santa Fe Glass Gasket Tape (240-0290/10)240-0290/10$47.00
#N/SVermont Castings Stove Bag Kit (7001221)7001221$138.00
#N/SQuadra-Fire, PelPro & Heatilator Eco-Choice Combustion Blower Gasket - Round (812-4710)812-4710$34.00
#N/SHHT Combustion / Exhaust Blower Motor Housing Gasket (SRV240-0812)SRV240-0812$10.00
#N/SQuadra-Fire Flue Adapter Flange Gasket (SRV7036-180)SRV7036-180$23.00
#N/SQuadra-Fire Draw Latch (229-0230)229-0230$25.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SHeatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#N/SQuadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#N/SHeatilator & Quadra-Fire Nylon Auger Bearing (SRV7000-598)SRV7000-598$62.00
#N/SQuadra-Fire Auger Motor Gasket (SRV240-0731)SRV240-0731$4.00
#N/SHeatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#N/SQuadra-Fire Auger Set Screws - 25 Pack (225-0550/25)225-0550/25$35.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SQuadra-Fire Snap Disc Bracket (SRV7005-253)SRV7005-253$8.00
#N/SQuadra-Fire Santa Fe Pull Rod Assembly (7019-009)7019-009$65.00
#N/SQuadra-Fire Santa Fe Firepot Pull Rod - Black Nickel (SRV7019-172)SRV7019-172$19.00
#N/SQuadra-Fire EZ Clean Firepot Linkage Spring (200-2050)200-2050$7.00
#N/SQuadra-Fire EZ Clean Firepot Assembly (SRV414-5200)SRV414-5200$336.00
#N/SQuadra-Fire EZ Clean Firepot Bushing (410-8320)410-8320$7.00
#N/SQuadra-Fire EZ Clean Firepot Floor (414-0290)414-0290$79.00
#N/SQuadra-Fire Oval Firepot Gasket (SRV240-0930)SRV240-0930$19.00
#N/SQuadra-Fire & Heatilator Eco-Choice 14" Thermocouple (812-4470)812-4470$89.00
#N/SQuadra-Fire Thermocouple Clamp (SRV7001-203)SRV7001-203$81.00
#N/SQuadra-Fire Santa Fe Insert Component Pack (SRV7019-042)SRV7019-042$294.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)SRV230-0810$38.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire Bottom Air Wash Deflector (SRV413-0680)SRV413-0680$67.00
#N/SQuadra-Fire Santa Fe Insert Feed Adjustment Plate (SRV7019-110)SRV7019-110$164.00
#N/SQuadra-Fire Flue Adapter Gasket (SRV240-0850)SRV240-0850$14.00
#N/SHHT 5/32" ID Vacuum Hose (SRV240-0450)SRV240-0450$53.00
#N/SQuadra-Fire Santa Fe Hopper Switch Assembly (SRV7019-053)SRV7019-053$100.00
#N/SQuadra-Fire & Heatilator Eco-Choice Magnetic Hopper Lid Switch (SRV7000-375)SRV7000-375$30.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire Castile & Santa Fe Ash Cleanout Plate (SRV7001-186)SRV7001-186$14.00
#N/SQuadra-Fire Hopper Switch Wire Harness (SRV414-1220)SRV414-1220$57.00
#N/SQuadra-Fire Log Set (LOGS-30-OE)LOGS-30-OE$309.00
#N/SQuadra-Fire Side Log - Left (7050-144)7050-144$249.00
#N/SQuadra-Fire Side Log - Right (7050-143)7050-143$249.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Kit - Rear Mount (811-0872)811-0872$149.00
#N/SQuadra-Fire Air Intake Channel (SRV413-7040)SRV413-7040$83.00
#N/SQuadra-Fire Outside Air Kit Floor Cover (SRV411-1071)SRV411-1071$47.00
#N/SQuadra-Fire 2" x 3' Aluminum Flex Hose (SRV200-0860)SRV200-0860$48.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Cap Assembly (SRV7001-044)SRV7001-044$46.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Collar Assembly (SRV7001-045)SRV7001-045$71.00
#N/SQuadra-Fire Outside Air Kit Trim Plate (SRV412-7100)SRV412-7100$12.00
#N/SQuadra-Fire Trim Brackets - 2 Pack (832-0840)832-0840$82.00
#N/SQuadra-Fire Black Nickel Trim Set - Black (7019-027)7019-027$181.00
#N/SQuadra-Fire Trim Brackets - 2 Pack (832-0840)832-0840$82.00
#N/SQuadra-Fire Panel Trim Set - Black Nickel (7019-026)7019-026$176.00
#N/SQuadra-Fire Pellet Stove Reset Button (SRV7000-040)SRV7000-040$43.00
#N/SQuadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)841-0960$229.00
#N/SHeatilator Eco-Choice & Quadra-Fire Mechanical Thermostat (812-3760)812-3760$162.00
#N/SHHT Programmable Thermostat with Wire (PROG-STAT)PROG-STAT$247.00
#N/SQuadra-Fire 3"- 4" Offset Vent Adapter (811-0720)811-0720$169.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire Wing Nut - 24 Pack (226-0160/24)226-0160/24$32.00
#N/SQuadra-Fire 1/4-20" Screws - 24 Pack (7000-130/24)7000-130/24$35.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SHeat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#N/SQuadra-Fire 8-32 x 3/4 Pan Head Screws - 24 Pack (229-1100/24)229-1100/24$21.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SQuadra-Fire Santa Fe PEM Stud - 24 Pack (229-0130/24)229-0130/24$29.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
