Quadrafire Sapphire-D Gas Parts Diagram

Quadrafire Sapphire-D Gas Interactive Parts Finder

Find the exact replacement parts you need for your Quadrafire Sapphire-D Gas. This Gas stove has 100 parts mapped in our interactive diagram below. Common replacement parts include Heat N Glo & Quadra-Fire Log Assembly, Heat N Glo & Quadra-Fire Front Log, Heat N Glo & Quadra-Fire Front Left Log, Heat N Glo & Quadra-Fire Rear Log, and Quadra-Fire SAPPHIRE-D Top to Rear Vent Conversion Kit. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 100 replacement parts available.

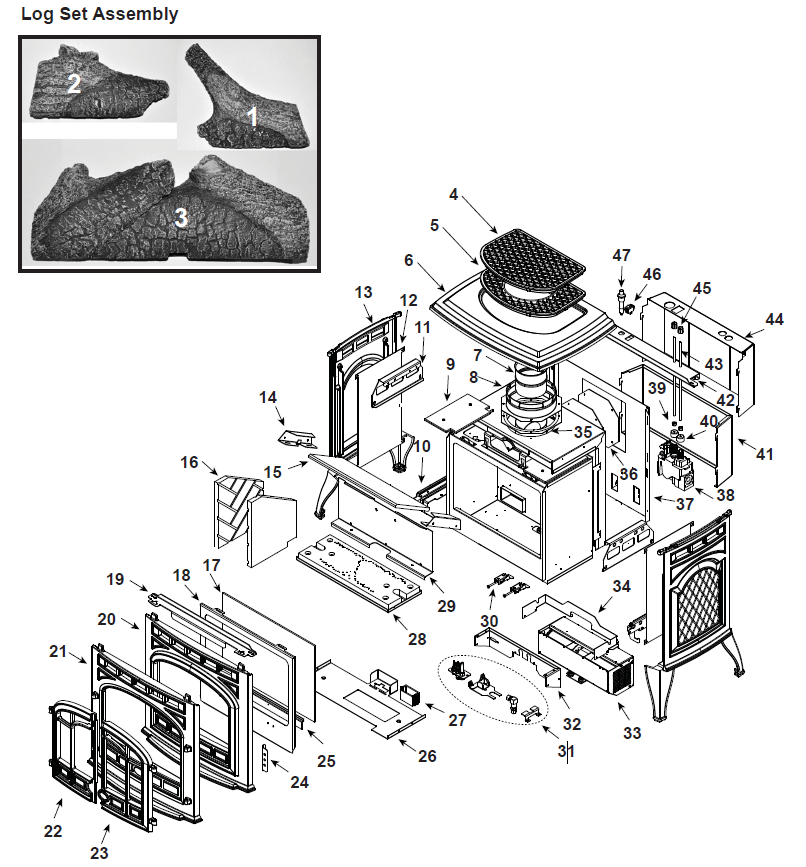

Quadrafire Sapphire-D Gas replacement parts diagram
Part #Part NamePart CodePrice
#1Heat N Glo & Quadra-Fire Front Log (7055-124)7055-124$104.00
#10Quadra-Fire Sapphire Cast Retainer Assembly (SRV7055-008)SRV7055-008$108.00
#11Quadra-Fire Sapphire Cast Side Top Mount (SRV7055-114)SRV7055-114$170.00
#12Quadra-Fire Sapphire Side Heat Shield (SRV7055-120)SRV7055-120$83.00
#13AQuadra-Fire Castile Side - Sienna Bronze (SRV7021-125CSB)SRV7021-125CSB$815.00
#13BQuadra-Fire Castile Side - Matte Black (SRV7021-125MBK)SRV7021-125MBK$658.00
#13CQuadra-Fire Castile Side - Porcelain Mahogany (SRV7021-125PMH)SRV7021-125PMH$1,343.00
#14Heat N Glo Tiara I-C Baffle Bracket (7010-137)7010-137$49.00
#15Quadra-Fire & Heat N Glo Baffle (7010-136A)7010-136A$119.00
#16Quadra-Fire Castile-Gas & Sapphire-D Refractory Kit (BRICK-T1)BRICK-T1$125.00
#17Quadra-Fire Door Glass Assembly w/Gasket (7010-017)7010-017$259.00
#18Heat N Glo Tiara I-B Door with Glass Assembly (7010-016)7010-016$349.00
#19Quadra-Fire Sapphire Front Cast Retainer (SRV7055-108)SRV7055-108$175.00
#2Heat N Glo & Quadra-Fire Front Left Log (7055-125)7055-125$100.00
#20Quadra-Fire Sapphire Front - Black Solitaire (SRV7055-123MBK)SRV7055-123MBK$671.00
#21AQuadra-Fire Sapphire Series Cabinet Style Front - Sienna Bronze (SRV7055-103CSB)SRV7055-103CSB$767.00
#21BQuadra-Fire Sapphire Series Cabinet Style Front - Classic Black (SRV7055-103MBK)SRV7055-103MBK$647.00
#21CQuadra-Fire Sapphire Series Cabinet Style Front - Porcelain Mahogany (SRV7055-103PMH)SRV7055-103PMH$1,367.00
#22BQuadra-Fire Sapphire Series Left Door - Classic Black (SRV7055-107MBK)SRV7055-107MBK$419.00
#22CQuadra-Fire Sapphire Series Left Door - Porcelain Mahogany (SRV7055-107PMH)SRV7055-107PMH$1,043.00
#23AQuadra-Fire Sapphire Series Right Door - Sienna Bronze (SRV7055-105CSB)SRV7055-105CSB$527.00
#23BQuadra-Fire Sapphire Series Right Door - Classic Black (SRV7055-105MBK)SRV7055-105MBK$419.00
#23CQuadra-Fire Sapphire Series Right Door - Porcelain Mahogany (SRV7055-105PMH)SRV7055-105PMH$1,067.00
#24Quadra-Fire Sapphire Cast Front Hook (SRV7055-110)SRV7055-110$58.00
#25Heat N Glo Tiara I-C Glass Retainer (7010-121)7010-121$7.00
#26Heat N Glo & Quadra-Fire Burner Plate Assembly (7010-022)7010-022$55.00
#27Heat N Glo Tiara I-C Pilot Spacer (7031-256)7031-256$16.00
#28Heat N Glo & Quadra-Fire Burner Assembly - NG/LP (SRV7010-025)SRV7010-025$654.00
#29Heat N Glo Tiara I-C Rear Log Support (7010-134)7010-134$59.00
#3Heat N Glo & Quadra-Fire Rear Log (7055-126)7055-126$236.00
#30Quadra-Fire & Heat N Glo Draw Latch (229-0640)229-0640$38.00
#31.1 Heat N Glo & Quadra-Fire Pilot Assembly - NG (230-1781)230-1781$112.00
#31.2Quadra-Fire & Heat N Glo Shutter Assembly (SRV7010-027)SRV7010-027$58.00
#31.3HHT Bulkhead Fitting (26457)26457$48.00
#31.4Heat N Glo & Quadra-Fire Bulkhead Stop (SRV474-0090)SRV474-0090$71.00
#32Heat N Glo & Quadra-Fire Blower Bracket (7010-146)7010-146$42.00
#33HHT Blower Kit (BK-GAS)BK-GAS$569.00
#34Quadra-Fire Topaz Rear Blower Bracket (7009-103)7009-103$37.00
#35Heat N Glo & Quadra-Fire Elbow Gasket (SRV460-0610)SRV460-0610$48.00
#36Heat N Glo & Quadra-Fire Cover Plate Gasket (7010-160)7010-160$8.00
#37Quadra-Fire Sapphire Back Shield Support (SRV7055-115)SRV7055-115$209.00
#38AQuadra-Fire, Harman, & Heatilator SIT Valve - NG (SRV230-0710)SRV230-0710$224.00
#38BHHT Gas Valve - LP (SRV230-0720)SRV230-0720$224.00
#39Quadra-Fire 1/4" Set Collar (229-0750)229-0750$7.00
#4Quadra-Fire SAPPHIRE-D Top to Rear Vent Conversion Kit (RV-SA-MBK)RV-SA-MBK$304.00
#40Quadra-Fire Castile Valve Extension Adapter (450-6330)450-6330$13.00
#41Quadra-Fire Sapphire Lower Back Shield (SRV7055-112)SRV7055-112$209.00
#42Quadra-Fire Sapphire Rear Cast Retainer (SRV7055-109)SRV7055-109$159.00
#43Quadra-Fire Castile-Gas & Sapphire Control Rod (455-0340)455-0340$10.00
#44Quadra-Fire Sapphire Upper Back Shield (SRV7055-111)SRV7055-111$209.00
#45HHT Rheostat Knob - Black (SRV100-512)SRV100-512$17.00
#47Quadra-Fire, Heat N Glo and Heatilator Piezo Igniter with Black Push Knob (291-513)291-513$14.00
#5AQuadra-Fire Top CSB Vent Grill - Sienna Bronze (455-0370CSB)455-0370CSB$863.00
#5BQuadra-Fire Top Vent Grill - Matte Black (455-0370MBK)455-0370MBK$151.00
#5CQuadra-Fire Top Vent Grill - Porcelain Mahogany (455-0370PMH)455-0370PMH$1,091.00
#6AQuadra-Fire Sapphire Series Top Plate - Sienna Bronze (SRV7055-101CSB)SRV7055-101CSB$767.00
#6BQuadra-Fire Sapphire Series Top Plate - Classic Black (SRV7055-101MBK)SRV7055-101MBK$575.00
#6CQuadra-Fire Sapphire Top Plate - Porcelain Mahogany (SRV7055-101PMH)SRV7055-101PMH$1,403.00
#8Heat N Glo and Quadra-Fire DV Adapter (SRV7010-172)SRV7010-172$66.00
#9Heat N Glo & Quadra-Fire Relief Door (7010-003)7010-003$65.00
#LSAHeat N Glo & Quadra-Fire Log Assembly (SRV7055-013)SRV7055-013$390.00
#N/SHHT Gas Valve Regulator - NG (SRV230-1570)SRV230-1570$53.00
#N/SHeat N Glo & Quadra-Fire Snap Disc Bracket (7009-108)7009-108$11.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SQuadra-Fire Touch Up Paint - Sienna Bronze (TOUCHUP-CSB)TOUCHUP-CSB$26.00
#N/SQuadra-Fire Touch Up Paint - Porcelain Mahogany (855-1450)855-1450$30.00
#N/SHeat N Glo & Quadra-Fire Wire Harness (7010-156)7010-156$29.00
#N/SHeat N Glo & Quadra-Fire Conversion Kit - NG (NGK-30K)NGK-30K$199.00
#N/SHeat N Glo & Quadra-Fire Conversion Kit - LP (LPK-30K)LPK-30K$129.00
#N/SQuadra-Fire & Heat n Glo EZ Pilot Injector Orifice - NG (842-4440)842-4440$65.00
#N/SQuadra-Fire & Heat N Glo EZ Pilot Injector Orifice - LP (SRV200-2630)SRV200-2630$19.00
#N/SHHT Gas Valve Regulator - LP (SRV230-1520)SRV230-1520$60.00
#N/SQuadra-Fire Keps Lock Nuts (226-0050/40)226-0050/40$10.00
#N/SQuadra-Fire Button Head (32328/20)32328/20$32.00
#N/SQuadra-Fire & Heat N Glo Gold Door Hinge Pins - Set of 2 (844-5750)844-5750$25.00
#N/SHHT Screws - 25 Pack (220-0080/25)220-0080/25$31.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
#N/SQuadra-Fire Sapphire PEM Stud - 25 Pack (229-0010/25)229-0010/25$28.00
#N/SHeat N Glo & Quadra-Fire Flue Collar Gasket (455-0660)455-0660$8.00
#N/SQuadra-Fire & Heat N Glo EZ Pilot Injector Orifice - LP (SRV200-2630)SRV200-2630$19.00
#N/SQuadra-Fire & Heat N Glo 34" Thermocouple (200-2950)200-2950$34.00
#N/SHeat N Glo & Quadra-Fire Thermopile (842-0250)842-0250$92.00
#N/SHHT Brass Connector - 3/8 Flare x 3/8 NPT Male Elbow (SRV4021-045)SRV4021-045$23.00
#N/SHeatilator & Quadra-Fire Brass Elbow (SRV17524)SRV17524$22.00
#N/SHeat N Glo Tiara I-C Door Retainer (7010-122)7010-122$7.00
#N/SHHT Stainless Flex Gas Tube - 22" (7000-197)7000-197$45.00
#N/SHeat N Glo & Quadra-Fire Damper Plate (468-0360)468-0360$44.00
#N/SHeat N Glo & Quadra-Fire Leveling Assembly (SRV7000-000)SRV7000-000$22.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SHHT Mineral Wool (050-721)050-721$6.00
#N/SHHT On/Off Valve (SRV15697)SRV15697$41.00
#N/SHHT Burner Orifice - .106 - NG (SRV19837)SRV19837$45.00
#N/SHHT Burner Orifice #52 .063 - LP (SRV17236)SRV17236$17.00
#N/SHHT Pilot Spacer Gasket (7010-175)7010-175$6.00
