Santafei, Santafei-B Quadrafire Pellet Parts

Santafei, Santafei-B Quadrafire Pellet Interactive Parts Finder

Find the exact replacement parts you need for your Santafei, Santafei-B Quadrafire Pellet. This Pellet stove has 133 parts mapped in our interactive diagram below. Common replacement parts include Quadra-Fire Santa-Fe Insert Series Top Hinge Assembly, Quadra-Fire Santa Fe Top Face Assembly, Quadra-Fire Scraper Grill Bar - Black Nickel, Quadra-Fire Scraper Grill Bar - Gold, and Quadra-Fire Santa Fe Grill Bar/Scraper - Nickel. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 133 replacement parts available.

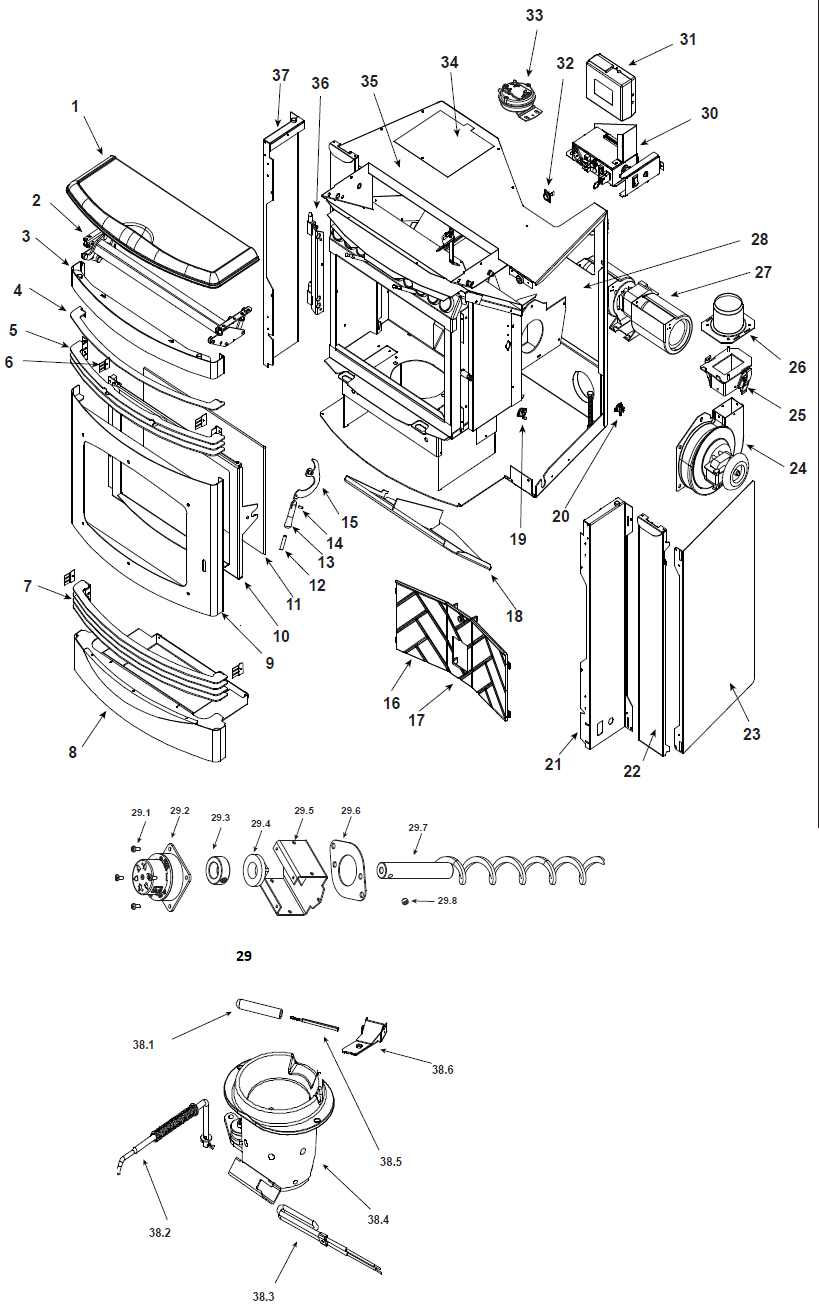

Santafei, Santafei-B Quadrafire Pellet replacement parts diagram
Part #Part NamePart CodePrice
#11Quadra-Fire Santa Fe & Castile Door Glass Assembly (SRV7001-038)SRV7001-038$281.00
#12Quadra-Fire Screws - Pack of 24 (7000-101/24)7000-101/24$30.00
#13Quadra-Fire Santa Fe Door Handle - Black Nickel (SRV7019-174)SRV7019-174$17.00
#14Quadra-Fire Santa Fe Insert Pin (7000-229)7000-229$6.00
#15Quadra-Fire Santa Fe Door Latch Assembly (SRV7019-015)SRV7019-015$36.00
#16Quadra-Fire Castile & Santa Fe Side Brick (SRV414-0270)SRV414-0270$128.00
#17Quadra-Fire Castile & SantaFe Cast Brick - Center (SRV414-0260)SRV414-0260$143.00
#18Quadra-Fire Airflow Baffle Upgrade (UK-30KPEL)UK-30KPEL$249.00
#19Quadra-Fire Manual Reset Snap Disc #3 (SRV230-1290)SRV230-1290$28.00
#2Quadra-Fire Santa-Fe Insert Series Top Hinge Assembly (7019-023)7019-023$142.00
#20Heatilator Eco-Choice & Quadra-Fire 110-20 Snap Disc (SRV230-1220)SRV230-1220$28.00
#21Quadra-Fire Santa-Fe Insert Face - Right (SRV7019-116)SRV7019-116$287.00
#22Quadra-Fire Santa Fe Access Panel Assembly (7019-025)7019-025$96.00
#23Quadra-Fire Santa Fe Outer Skin - Left & Right (7019-100)7019-100$85.00
#24Quadra-Fire, PelPro & Heatilator Eco-Choice Exhaust Blower Motor (812-4400)812-4400$153.00
#25Quadra-Fire Castile & Santa Fe Exhaust Transition Assembly (SRV414-5100)SRV414-5100$105.00
#26Quadra-Fire Santa-Fe Insert Flue Collar Assembly (7019-031)7019-031$84.00
#27HHT Convection Blower (812-4900)812-4900$245.00
#28Quadra-Fire Santa Fe Outer Back Skin (SRV7019-101)SRV7019-101$589.00
#29Quadra-Fire Feed Assembly (812-4760)812-4760$505.00
#29.1HHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#29.2Heatilator Eco-Choice & Quadra-Fire 2.4 RPM Feed Motor (812-4421)812-4421$255.00
#29.3Quadra-Fire 7/8" Feed Motor Set Collar (229-0520)229-0520$7.00
#29.4Heatilator & Quadra-Fire Nylon Auger Bearing (SRV7000-598)SRV7000-598$62.00
#29.6Quadra-Fire Auger Motor Gasket (SRV240-0731)SRV240-0731$4.00
#29.7Heatilator & Quadra-Fire Auger Spring Assembly (SRV7001-046)SRV7001-046$147.00
#29.8Quadra-Fire Auger Set Screws - 25 Pack (225-0550/25)225-0550/25$35.00
#3Quadra-Fire Santa Fe Top Face Assembly (7019-047)7019-047$28.00
#30Quadra-Fire Santa Fe Insert Wire Harness/Junction Box (SRV7019-166)SRV7019-166$178.00
#31Quadra-Fire 3 Speed Control Board (SRV7000-704)SRV7000-704$337.00
#32Quadra-Fire Snap Disc #2 - 250 Degree (SRV7000-268)SRV7000-268$57.00
#33 Heatilator, Pelpro & Quadra-Fire Vacuum Switch (SRV7000-531)SRV7000-531$101.00
#34Quadra-Fire & Heat N Glo Outer Can Plate Cover (480-1300)480-1300$85.00
#35Quadra-Fire Santa Fe Insert Outer Top Skin (SRV7019-106)SRV7019-106$256.00
#36Quadra-Fire Santa Fe Door Hinge Assembly (SRV7019-014)SRV7019-014$215.00
#37Quadra-Fire Santa-Fe Insert Left Face (SRV7019-117)SRV7019-117$172.00
#38.2Quadra-Fire Santa Fe Pull Rod Assembly (7019-009)7019-009$65.00
#38.4Quadra-Fire EZ Clean Firepot Assembly (SRV414-5200)SRV414-5200$336.00
#38.5Quadra-Fire & Heatilator Eco-Choice 14" Thermocouple (812-4470)812-4470$89.00
#38.6Quadra-Fire Thermocouple Clamp (SRV7001-203)SRV7001-203$81.00
#4AQuadra-Fire Scraper Grill Bar - Black Nickel (7019-191)7019-191$57.00
#4BQuadra-Fire Scraper Grill Bar - Gold (7019-161)7019-161$35.00
#4CQuadra-Fire Santa Fe Grill Bar/Scraper - Nickel (SRV7019-164)SRV7019-164$106.00
#5AQuadra-Fire Upper Grill Assembly - Black Nickel (7019-189)7019-189$94.00
#5BQuadra-Fire Santa Fe Upper Grill Assembly - Gold (7019-159)7019-159$106.00
#5CQuadra-Fire Santa Fe Upper Grill Assembly - Nickel (SRV7019-162)SRV7019-162$203.00
#6Quadra-Fire Grill Bracket Cover (7019-199)7019-199$9.00
#7AQuadra-Fire Lower Grill Assembly - Black Nickel (7019-190)7019-190$117.00
#7BQuadra-Fire Lower Grill Assembly - Gold (7019-160)7019-160$136.00
#7CQuadra-Fire Santa Fe Lower Grill Assembly - Nickel (SRV7019-163)SRV7019-163$239.00
#8Quadra-Fire Santa-Fe Insert Ash Draw Assembly (7019-006)7019-006$163.00
#9Quadra-Fire SantaFe Insert Series Face Assembly (7019-028)7019-028$223.00
#N/SQuadra-Fire Santa Fe Door Handle Assembly (SRV7019-037)SRV7019-037$213.00
#N/SQuadra-Fire Tadpole Gasket (842-5130)842-5130$38.00
#N/SQuadra-Fire Female Door Hinge (SRV450-2910)SRV450-2910$37.00
#N/SQuadra-Fire Rope Retainer (SRV7001-192)SRV7001-192$19.00
#N/SQuadra-Fire Door Corner Tape (SRV7027-227)SRV7027-227$37.00
#N/SQuadra-Fire, PelPro & Heatilator Eco-Choice Combustion Blower Gasket - Round (812-4710)812-4710$34.00
#N/SHHT Combustion / Exhaust Blower Motor Housing Gasket (SRV240-0812)SRV240-0812$10.00
#N/SQuadra-Fire Draw Latch (229-0230)229-0230$25.00
#N/SQuadra-Fire Male Door Hinge (SRV450-2810)SRV450-2810$44.00
#N/SQuadra-Fire Santa Fe Firepot Pull Rod - Black Nickel (SRV7019-172)SRV7019-172$19.00
#N/SQuadra-Fire EZ Clean Firepot Linkage Spring (200-2050)200-2050$7.00
#N/SQuadra-Fire & Heatilator Eco-Choice Wing Thumb Screws - 24 Pack (7000-223/24)7000-223/24$31.00
#N/SQuadra-Fire EZ Clean Firepot Bushing (410-8320)410-8320$7.00
#N/SQuadra-Fire EZ Clean Firepot Floor (414-0290)414-0290$79.00
#N/SQuadra-Fire Oval Firepot Gasket (SRV240-0930)SRV240-0930$19.00
#N/SQuadra-Fire Snap Disc Bracket (SRV7005-253)SRV7005-253$8.00
#N/SQuadra-Fire Santa Fe Insert Component Pack (SRV7019-042)SRV7019-042$294.00
#N/SQuadra-Fire Burnpot Cleanout Tool (SRV414-1140)SRV414-1140$39.00
#N/SQuadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)SRV230-0810$38.00
#N/SQuadra-Fire & Heatilator Eco-Choice Thermostat Wiring Harness (SRV230-0810)SRV230-0810$38.00
#N/SHHT Touch Up Paint - Matte Black (812-0910)812-0910$50.00
#N/SHHT Power Cord (812-1180)812-1180$85.00
#N/SQuadra-Fire Bottom Air Wash Deflector (SRV413-0680)SRV413-0680$67.00
#N/SQuadra-Fire Santa Fe Insert Feed Adjustment Plate (SRV7019-110)SRV7019-110$164.00
#N/SQuadra-Fire & Heatilator Eco-Choice Junction Box 7 Amp Fuses - 10 Pack (812-0380/10)812-0380/10$21.00
#N/SQuadra-Fire .8 Amp Fuse - Control Box - 10 Pack (812-3780/10)812-3780/10$40.00
#N/SHHT 5/32" ID Vacuum Hose (SRV240-0450)SRV240-0450$53.00
#N/SQuadra-Fire Log Set (LOGS-30-OE)LOGS-30-OE$309.00
#N/SQuadra-Fire Side Log - Left (7050-144)7050-144$249.00
#N/SQuadra-Fire Side Log - Right (7050-143)7050-143$249.00
#N/SHHT Round Magnet (SRV7000-140)SRV7000-140$38.00
#N/SQuadra-Fire Castile & Santa Fe Ash Cleanout Plate (SRV7001-186)SRV7001-186$14.00
#N/SQuadra-Fire Santa Fe Insert Scraper Repair Kit (SCRAPER-SFI)SCRAPER-SFI$203.00
#N/SQuadra-Fire Heat Output Rocker Switch - 3 Way (812-3500)812-3500$77.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Kit - Rear Mount (811-0872)811-0872$149.00
#N/SQuadra-Fire Air Intake Channel (SRV413-7040)SRV413-7040$83.00
#N/SQuadra-Fire Outside Air Kit Floor Cover (SRV411-1071)SRV411-1071$47.00
#N/SQuadra-Fire 2" x 3' Aluminum Flex Hose (SRV200-0860)SRV200-0860$48.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Cap Assembly (SRV7001-044)SRV7001-044$46.00
#N/SQuadra-Fire & Heatilator Eco-Choice Outside Air Collar Assembly (SRV7001-045)SRV7001-045$71.00
#N/SQuadra-Fire Outside Air Kit Trim Plate (SRV412-7100)SRV412-7100$12.00
#N/SQuadra-Fire Trim Brackets - 2 Pack (832-0840)832-0840$82.00
#N/SQuadra-Fire Black Nickel Trim Set - Black (7019-027)7019-027$181.00
#N/SQuadra-Fire Gold Trim Panel Set (SRV250-4660)SRV250-4660$234.00
#N/SQuadra-Fire Trim Brackets - 2 Pack (832-0840)832-0840$82.00
#N/SQuadra-Fire Panel Trim Set - Black Nickel (7019-026)7019-026$176.00
#N/SQuadra-Fire Gold Trim Set (811-0710)811-0710$395.00
#N/SQuadra-Fire & Heatilator Eco-Choice Smart Stat II Remote (841-0960)841-0960$229.00
#N/SHeatilator Eco-Choice & Quadra-Fire Mechanical Thermostat (812-3760)812-3760$162.00
#N/SQuadra-Fire 3"- 4" Offset Vent Adapter (811-0720)811-0720$169.00
#N/SHHT AVK Repair Kit (RIVNUT-REPAIR)RIVNUT-REPAIR$125.00
#N/SQuadra-Fire Hex Head Bolts (25221A/10)25221A/10$25.00
#N/SQuadra-Fire Capped Push Nut - 24 Pack (7000-157/24)7000-157/24$31.00
#N/SHHT Flange Nuts (226-0130/24)226-0130/24$25.00
#N/SQuadra-Fire Wing Nut - 24 Pack (226-0160/24)226-0160/24$32.00
#N/SQuadra-Fire 1/4-20" Screws - 24 Pack (7000-130/24)7000-130/24$35.00
#N/SQuadra-Fire 1/4-20 X 3/8" Screws - 24 Pack (7000-401/24)7000-401/24$23.00
#N/SQuadra-Fire Glass Tab Screws (832-0860)832-0860$21.00
#N/SQuadra-Fire Santa-Fe Door Trim Nut Keps Lock (832-2790)832-2790$8.00
#N/SHeat N Glo & Quadra-Fire Screws - 24 Pack (220-0440/24)220-0440/24$25.00
#N/SQuadra-Fire 8-32 x 3/4 Pan Head Screws - 24 Pack (229-1100/24)229-1100/24$21.00
#N/SHHT Screws - 40-Pack (225-0500/40)225-0500/40$25.00
#N/SQuadra-Fire 10/32" x 1/4" Phillips Head Screw - 24 Pack (229-1230/24)229-1230/24$22.00
#N/SQuadra-Fire, Heatilator & Majestic Black Philips Head Screws - 40 Pack (12460/40)12460/40$14.00
#N/SQuadra-Fire Santa Fe PEM Stud - 24 Pack (229-0130/24)229-0130/24$29.00
#N/SHeat N Glo, Heatilator & Quadra-Fire Washers - 24 Pack (28758/24)28758/24$14.00
