Vermont Castings Intrepid II 1990 Parts Diagram

Vermont Castings Intrepid II 1990 Interactive Parts Finder

Find the exact replacement parts you need for your Vermont Castings Intrepid II 1990. This Wood stove has 76 parts mapped in our interactive diagram below. Common replacement parts include Vermont Castings Intrepid II Secondary Air Cover - Painted, Vermont Castings Intrepid II 1990 Back Panel, Vermont Castings Intrepid Damper Actuator Rod, Vermont Castings Intrepid II Damper Housing, and Vermont Castings Intrepid II Damper Clip. Click on any highlighted area in the diagram to see part details, pricing, and add it directly to your cart. Can't find what you're looking for? Contact us and our team will help you track down the right part.

Tap or click any highlighted area in the diagram below. 76 replacement parts available.

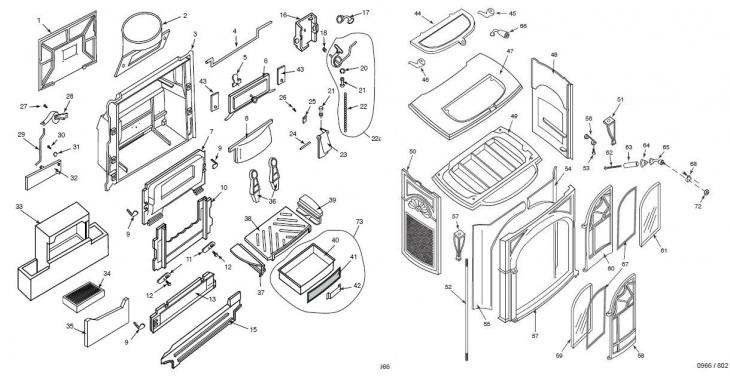

Vermont Castings Intrepid II 1990 replacement parts diagram
Part #Part NamePart CodePrice
#1Vermont Castings Intrepid II Secondary Air Cover - Painted (1306762A)1306762A$89.00
#10Vermont Castings Intrepid II Upper Fireback (1306703A)1306703A$71.00
#12Vermont Castings 3/8"-16 X 1 1/2" Hex Head Cap Screw (1201456)1201456$3.50
#13Vermont Castings Intrepid II Lower Fireback (1306704)1306704$43.00
#15Vermont Castings Intrepid II 1990 Rear Air Tube (1308658)1308658$43.00
#16Vermont Castings Intrepid II Thermostat Cover (1306711A)1306711A$87.00
#18Vermont Castings Friction Spring (1201846)1201846$4.00
#20Vermont Castings Thermostat Clip - Unplaited (1601408)1601408$6.00
#21Vermont Castings Ball Chain Fitting (1201972)1201972$3.50
#22Vermont Castings #6 Thermostat Ball Chain - SOLD PER FOOT (1201960)1201960$8.00
#23Vermont Castings Intrepid II Primary Air Flap (1306710)1306710$42.00
#24Intrepid II 1990, 2070, 1308, & 1303 Primary Air Flap Pin (1601551)1601551$6.00
#25Vermont Castings Glass Clip - Long (1601396)1601396$3.00
#26Vermont Castings 3/8" Pan Head Bolt (1200983)1200983$3.00
#28Vermont Castings Secondary Air Probe Assembly (1601489A)1601489A$90.00
#29Vermont Castings Secondary Air Linkage (1601486)1601486$6.00
#3Vermont Castings Intrepid II 1990 Back Panel (1308662A)1308662A$311.00
#31Vermont Castings Secondary Air Shim Ring (1201986)1201986$6.00
#32Vermont Castings Secondary Air Flap (1601490)1601490$19.00
#33Vermont Castings Refractory Assembly (SRV1602527)SRV1602527$552.00
#34Vermont Castings Catalyst Block - Boxed (30001153)30001153$315.00
#35Vermont Castings Intrepid II & Small Winterwarm Refractory Access Panel (1602516)1602516$59.00
#36Vermont Castings Andiron (1306717A)1306717A$42.00
#37Vermont Castings Intrepid II 1990 Left Insert (1308651)1308651$63.00
#38Vermont Castings Intrepid II 1990 Bottom Grate (1308652A)1308652A$110.00
#39Vermont Castings Intrepid II 1990 Right Insert (1308650)1308650$63.00
#4Vermont Castings Intrepid Damper Actuator Rod (1602523)1602523$40.00
#40Vermont Castings Intrepid II Ash Pan (1400951K)1400951K$74.00
#41Intrepid II Ash Pan Front Cover (1306493A)1306493A$86.00
#42Vermont Castings Intrepid Ash Pan Handle (30000973)30000973$75.00
#43Vermont Castings Damper Tab (1601488)1601488$3.00
#44Vermont Castings Resolute Acclaim & Intrepid Griddle (1306356A)1306356A$128.00
#45Vermont Castings Griddle Quadrant - Right (30005119A)30005119A$30.00
#46Vermont Castings Griddle Quadrant - Left (30005118A)30005118A$50.00
#47Vermont Castings Intrepid II 1990, 1308, & 1303 Top (1308657A)1308657A$292.00
#48Vermont Castings Intrepid II 1990 Right Side - Classic Black (1308655A)1308655A$149.00
#49Vermont Castings Intrepid II Back (1306767)1306767$142.00
#5Vermont Castings Intrepid II Damper Clip (1306725A)1306725A$40.00
#50Vermont Castings Intrepid II 1990 Left Side - Classic Black (1308656A)1308656A$149.00
#51Vermont Castings Intrepid Individual Leg (1306333A)1306333A$73.00
#52Vermont Castings Tie Rod (1601640)1601640$32.00
#53Vermont Castings 3/8-16 X 1" Screw (1201432)1201432$8.00
#54Vermont Castings Intrepid II 1990 Front Air Manifold - Right (1308654)1308654$70.00
#55Vermont Castings Intrepid II 1990 Front Air Manifold - Left (1308653)1308653$72.00
#56Vermont Castings Door Handle Holder Insert (1600600)1600600$14.00
#57Vermont Castings Intrepid II 1990 Front - Classic Black (1308647A)1308647A$176.00
#58Vermont Castings Intrepid Left Door - Classic Black (1308649A)1308649A$232.00
#59Vermont Castings Intrepid Left Door Glass (1401157)1401157$65.00
#6Vermont Castings Intrepid II Damper (1306701A)1306701A$66.00
#60Vermont Castings Intrepid Right Door - Classic Black (1308648A)1308648A$270.00
#61Vermont Castings Intrepid Right Door Glass (1401156)1401156$65.00
#62Vermont Castings Oval Head Handle Screw - Screw Only (1201294)1201294$6.00
#63Sequoia EWF36A & Defiant N/C 1610 Ceramic Handle (20006381A)20006381A$24.00
#64Vermont Castings Handle Base Stub (30002714)30002714$19.00
#65Vermont Castings Intrepid II 1990 Front Door Handle (30002719)30002719$51.00
#66Vermont Castings Complete Griddle Handle (30002775)30002775$63.00
#67Vermont Castings & Harman Glass Gasket (1-00-1186258229)1-00-1186258229$19.00
#69Vermont Castings Intrepid NC 1640 & Intrepid II 1990 Bottom Glass Clip (30000832)30000832$30.00
#7Vermont Castings Intrepid II Damper Housing (1306702A)1306702A$82.00
#70Vermont Castings Intrepid NC 1640 & Intrepid II 1990 Side Glass Clip (30000833)30000833$21.00
#71Vermont Castings Intrepid NC 1640 & Intrepid II 1990 Corner Glass Clip (30000834)30000834$21.00
#72Vermont Castings Large Pawl Jam Nut (1203290)1203290$3.00
#73Vermont Castings Intrepid Ash Pan Assembly (5003522)5003522$191.00
#74Vermont Castings Intrepid II 1990 Bottom Heat Shield (30004020)30004020$115.00
#75C-Clip for Intrepid II 1990, Intrepid II 1308, & Vigilant I & IA Stoves (1204015)1204015$21.00
#76Vermont Castings Wing Screw (1201621)1201621$12.00
#77Vermont Castings Stove Bag Kit (V5008667)V5008667$162.00
#8Vermont Castings Intrepid II & Small Winterwarm Throat Hood (1306763A)1306763A$55.00
#9Vermont Castings Intrepid 3/8-16 x 1" Weld Screw (1201583)1201583$4.50
